VLC Media Player
Content
About
VLC is a free and open source cross-platform multimedia player and framework, which plays most multimedia files as well as DVDs, audio CDs, VCDs and various streaming protocols.
Player Website: VideoLAN
Version 2.22.0.31.8
| H.264 | MJPEG | MPEG4 | G.711 | Stream recording | |
|---|---|---|---|---|---|
| VLC 2.2.8 Weatherwax |  | | | | |
Tested Features
Requirements for 2N IP Intercom Settings

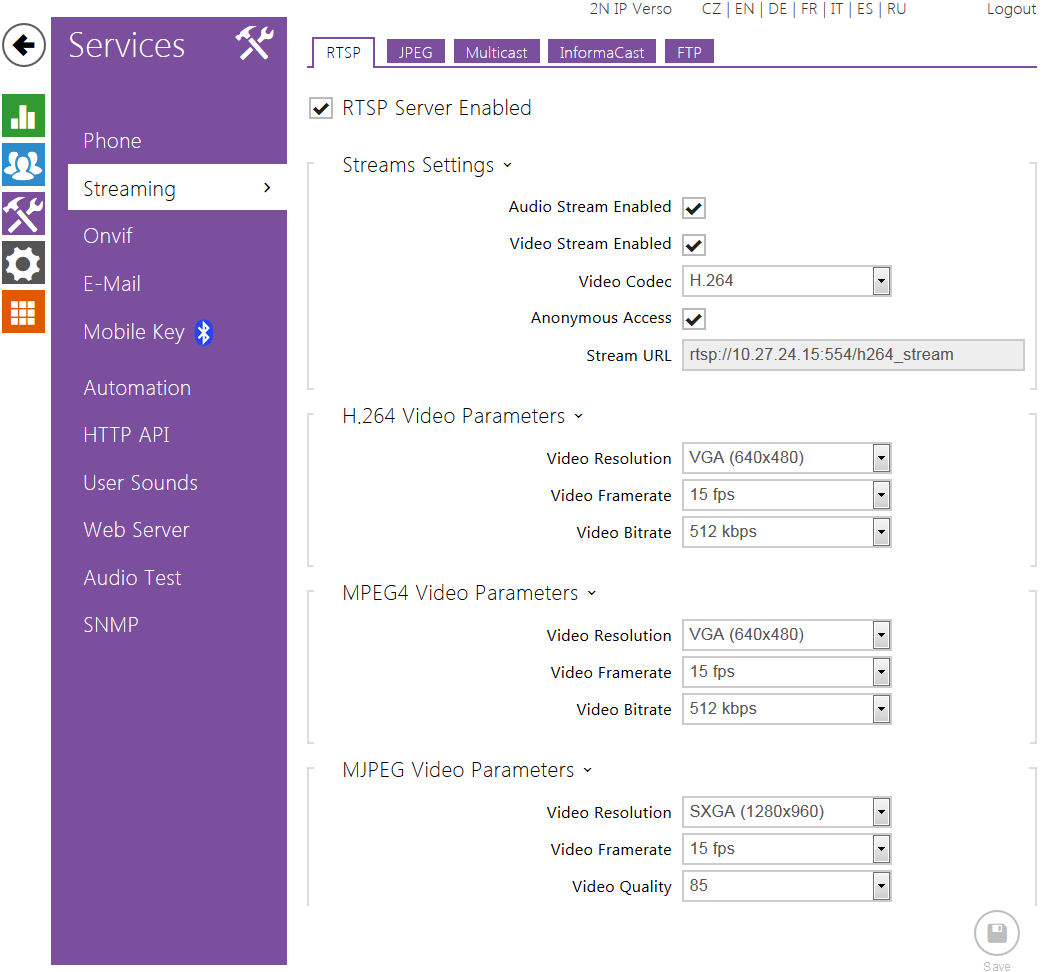

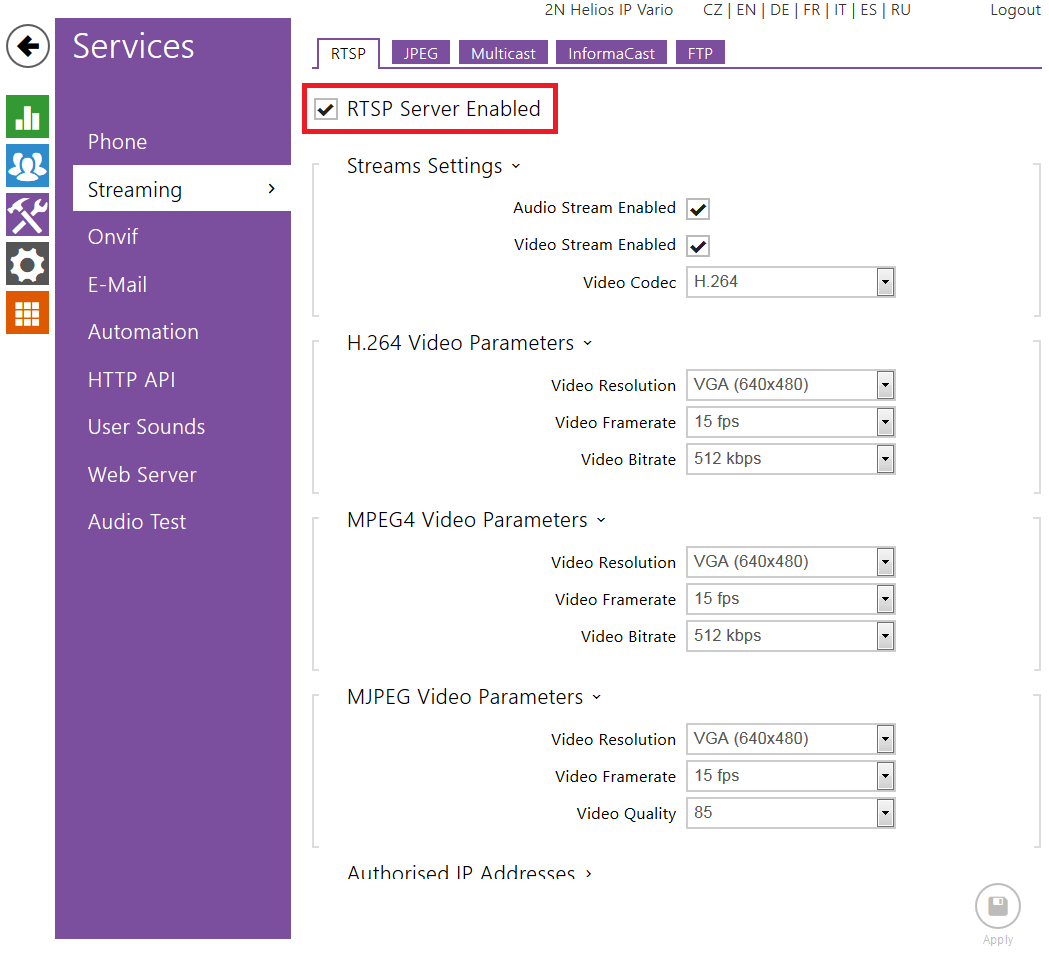

Enable the RTSP Server. The feature is licensed.
Requirements for VLC

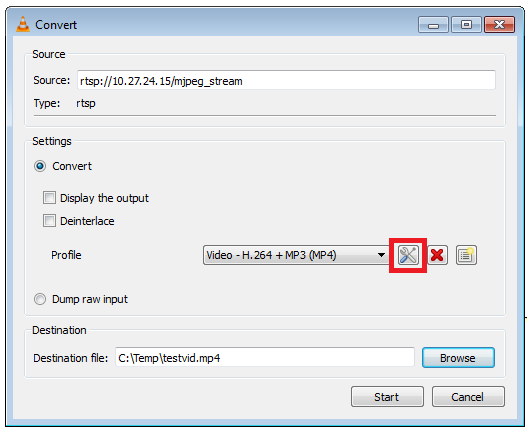

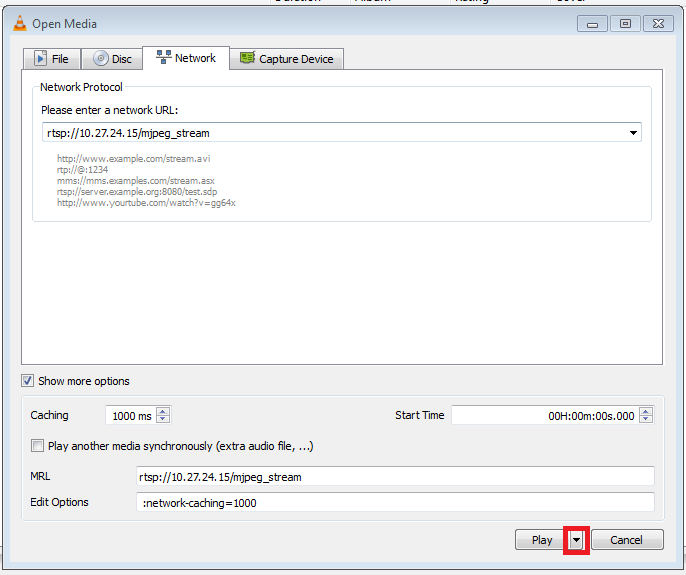

Open address "rtsp://<intercom_ip_address>/mjpeg_stream" in the Media / Open Network Stream menu. Then click on the options at the Play button. Choose Convert.

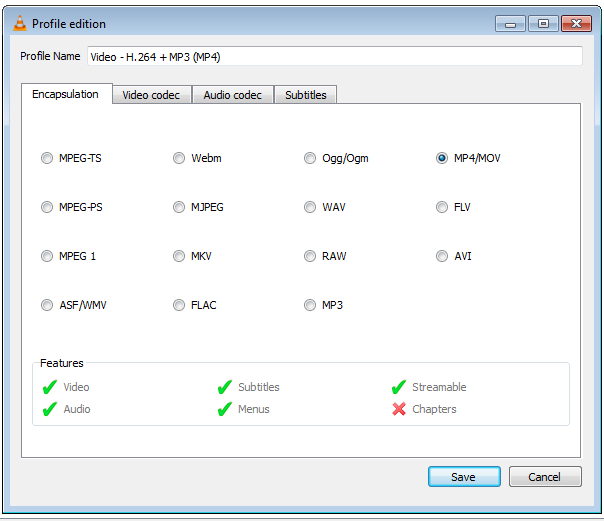

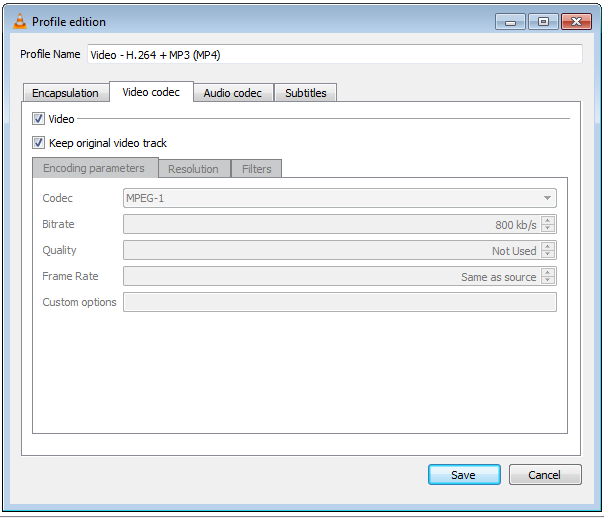

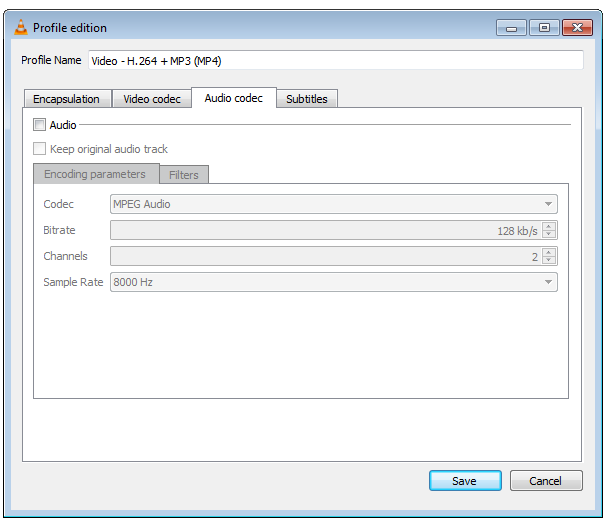

Click on the Edit selected profile button to set up video parameters. Then set the destination for the file.
Version 2.10.0.19.3
| H.264 | MJPEG | MPEG4 | G.711 | |
|---|---|---|---|---|
| VLC 2.0.8 Twoflower | | | | |
| VLC 2.1.5 Rincewind | | |  | |
Version 2.9.1.18.6
| H.264 | MJPEG | MPEG4 | G.711 | |
|---|---|---|---|---|
| VLC 2.0.8 Twoflower | | | | |
Tested Features
Requirements for 2N IP Intercom Settings
Enable the RTSP Server. The feature is licensed.
Requirements for VLC
Open address "rtsp://10.0.27.48/h264_stream" in the Media / Open Network Stream menu.
Requirements for 2N IP Intercom Settings
Enable the RTSP Server. The feature is licensed.
Requirements for VLC
Open address "rtsp://10.0.27.48/mjpeg_stream" in the Media / Open Network Stream menu.
Requirements for 2N IP Intercom Settings
Enable the RTSP Server. The feature is licensed.
Requirements for VLC

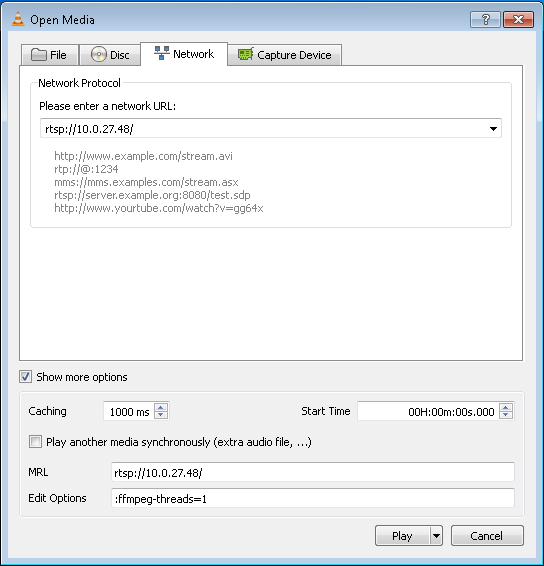

Open address "rtsp://10.0.27.48" in the Media / Open Network Stream menu
and set the Edit options parameter to ":ffmpeg-threads=1".
Requirements for 2N IP Intercom Settings
Enable the RTSP Server. The feature is licensed.
Requirements for VLC
Open the address of any of the above mentioned video streams that the audio stream is part of - use codec G.711 ulaw.
Disable the video stream via the Video Stream Enabled parameter.
Required licenses
- Enhanced Video for RTSP streaming
Used Symbols
- Compatible
- Work with limitation
- Incompatible
