About

3CX is an open-platform, VoIP phone system that works with popular IP Phones and SIP trunks whether on-premise or in the cloud. Simple, affordable and flexible, 3CX eliminates the cost and management headaches of outdated, traditional phone systems or the limitations of shared cloud PBXs.

A software-based IP PBX / PABX offers many benefits:

  • Easier to install & manage via web-based configuration interface
  • Far less expensive to purchase and expand than a hardware-based PBX / PABX
  • Improves productivity with presence, desktop based call control and extension management
  • No need for separate phone wiring – phones use computer network, easy hot desking!
  • Deliver mobility by allowing employees to work from home using a remote extension
  • Choose between popular IP hardware phones or softphones – no vendor lock in
  • Receive & make calls via the standard PSTN using VoIP Gateways or cards
  • Save on monthly call costs using SIP trunks, VoIP providers or Skype Connect

https://www.3cx.com/

Version 18

Tested with

3CX Phone System2N IP IntercomRegistrationsCallsSecure RTP (SRTP)
182.32(tikot)(tikot)(tikot)



License

  • Enhanced Security


Settings

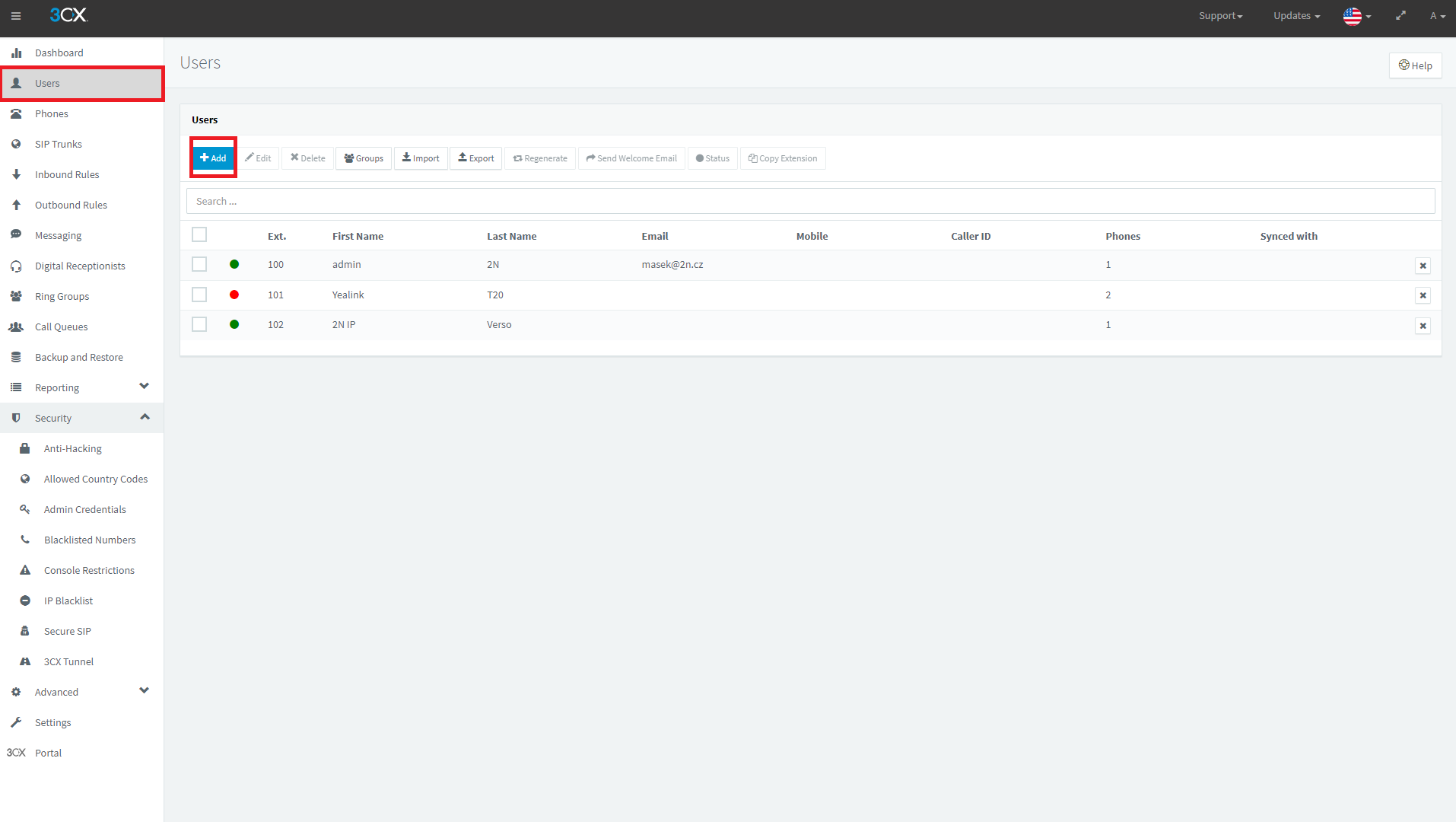

To create new Extension for 2N IP Intercom Devices, 3CX Web Configuration go to Users. In Users menu click on "+Add" to create new user.

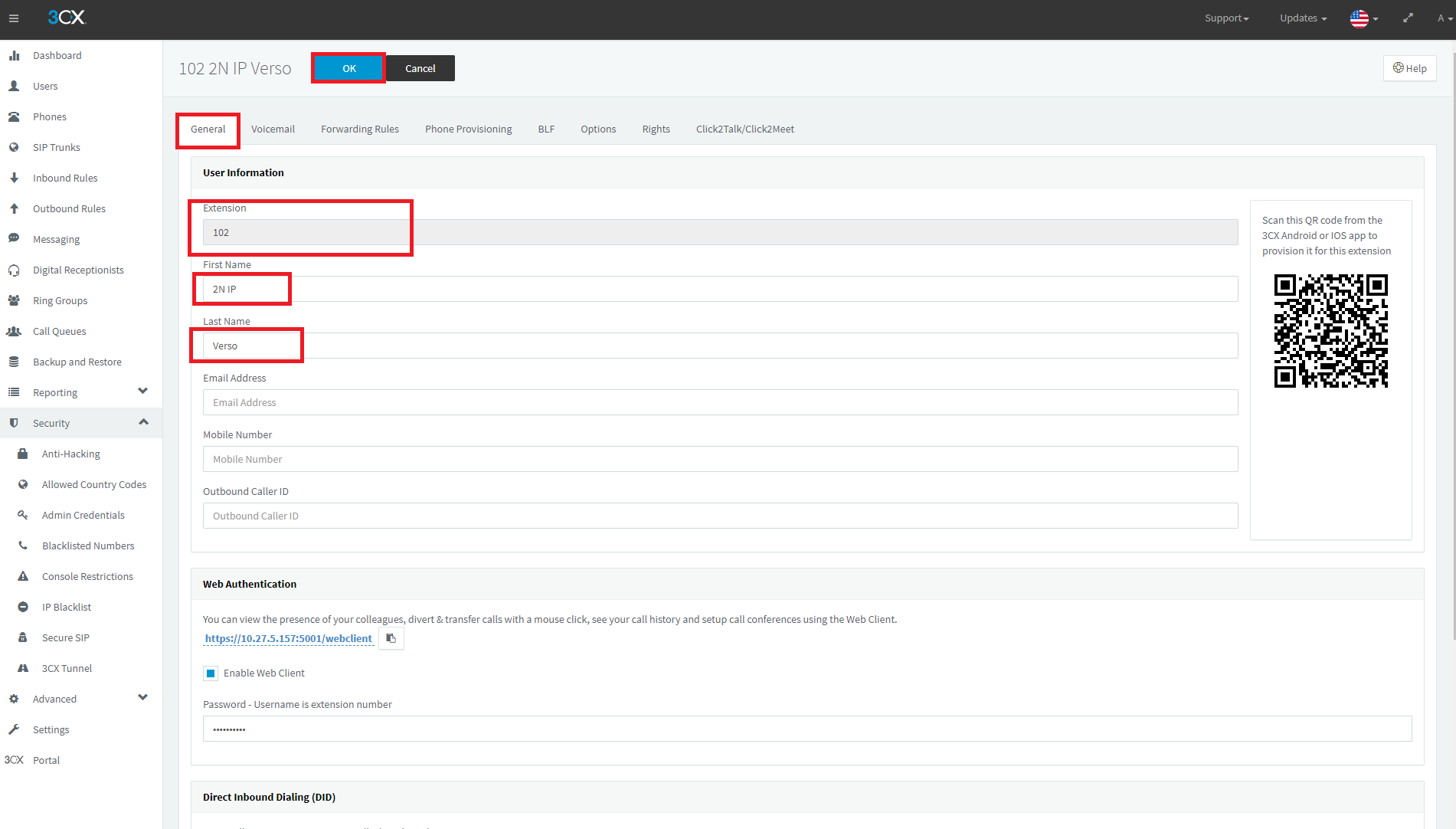

Fill in credentials to be used for 2N IP Intercom. In this Example „Extension“ (Phone Number), „First Name“ and „Last Name“. Confirm by blue OK button on top of the screen.

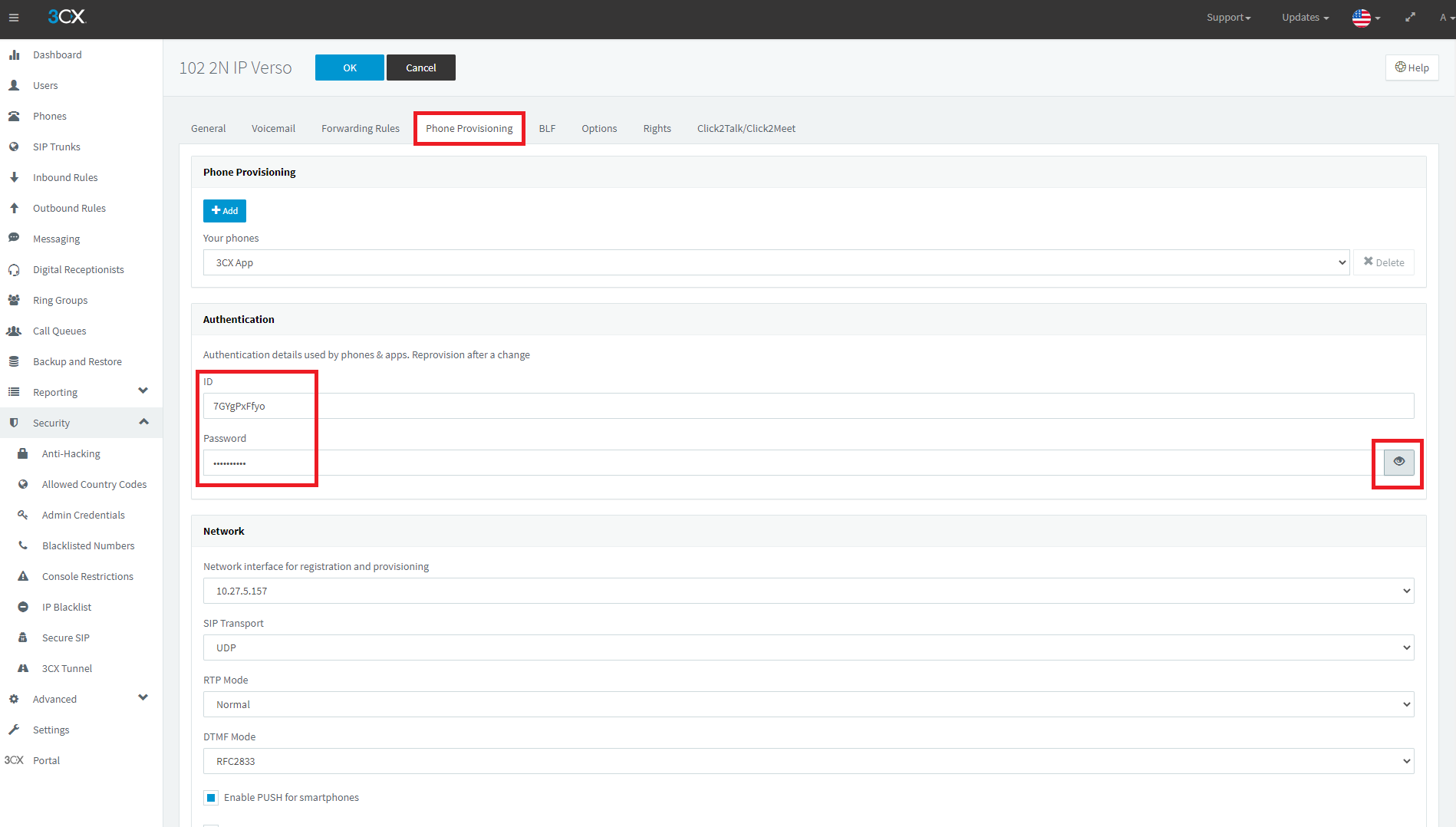

Your Credentials for 2N IP Intercom you can find in „Phone Provisioning“ section of new user.

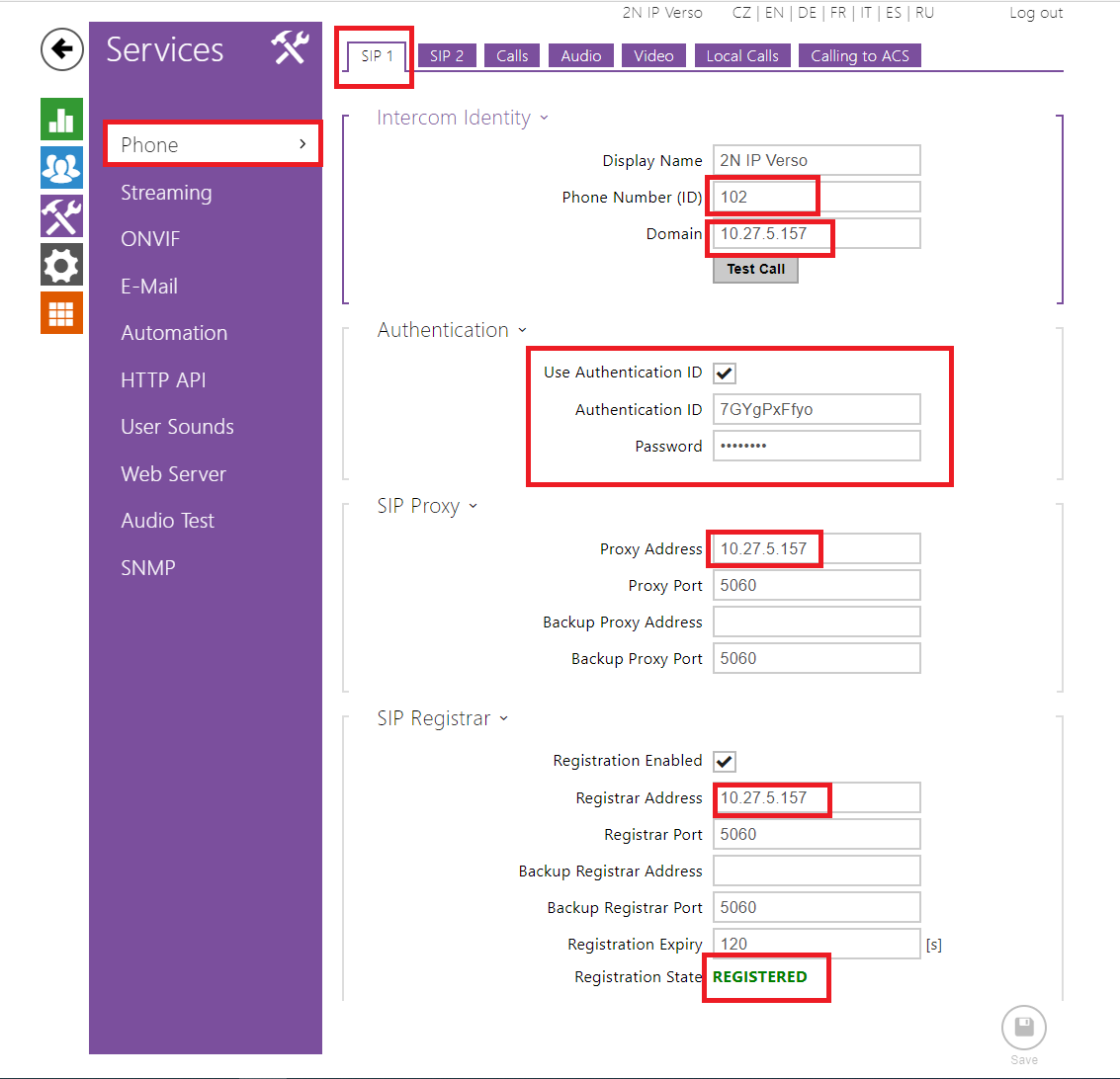

In Web configuration of your 2N IP Intercom fill in credentials created in 3CX Phone System Configuration
Fill in Extension number in Phone (ID) and Authentication Credentials from „Phone Provisioning“ section. Fill in the IP address to 3CX Phone System in to Domain, Proxy Address and Registrar address boxes.

Secure RTP(SRTP)

SRTP on 3CX Phone System

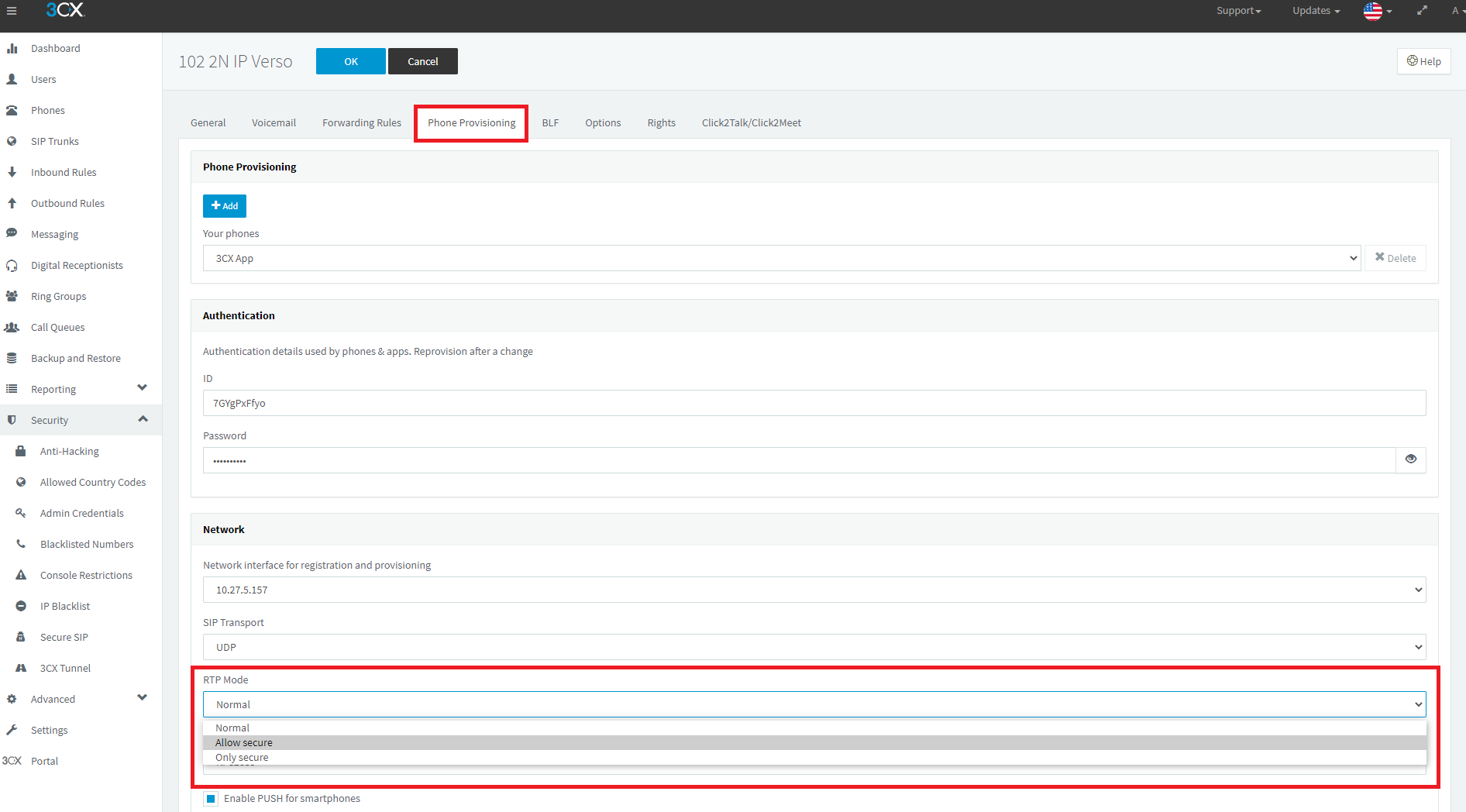

In „Phone Provisioning“ section you choose Allow Secure or Only Secure in RTP mode menu. Confirm by blue OK button on top of the screen.



SRTP on 2N IP Intercom

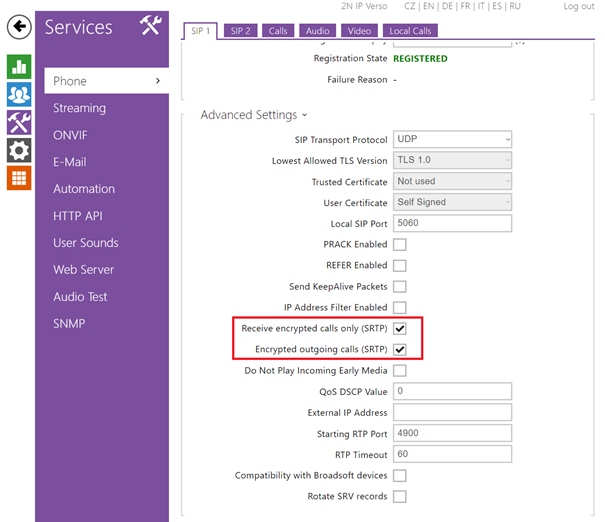

Go to SIP settings in Services and in Advanced settings enable recieving and transmitting of SRTP calls.





   Version 16

Tested with

3CX Phone System2N IP IntercomRegistrationsCallsSecure RTP (SRTP)
162.30(tikot)(tikot)(tikot)

License

  • Enhanced Security (Part No. 9137908, Axis Part No. 01379-001)


Settings

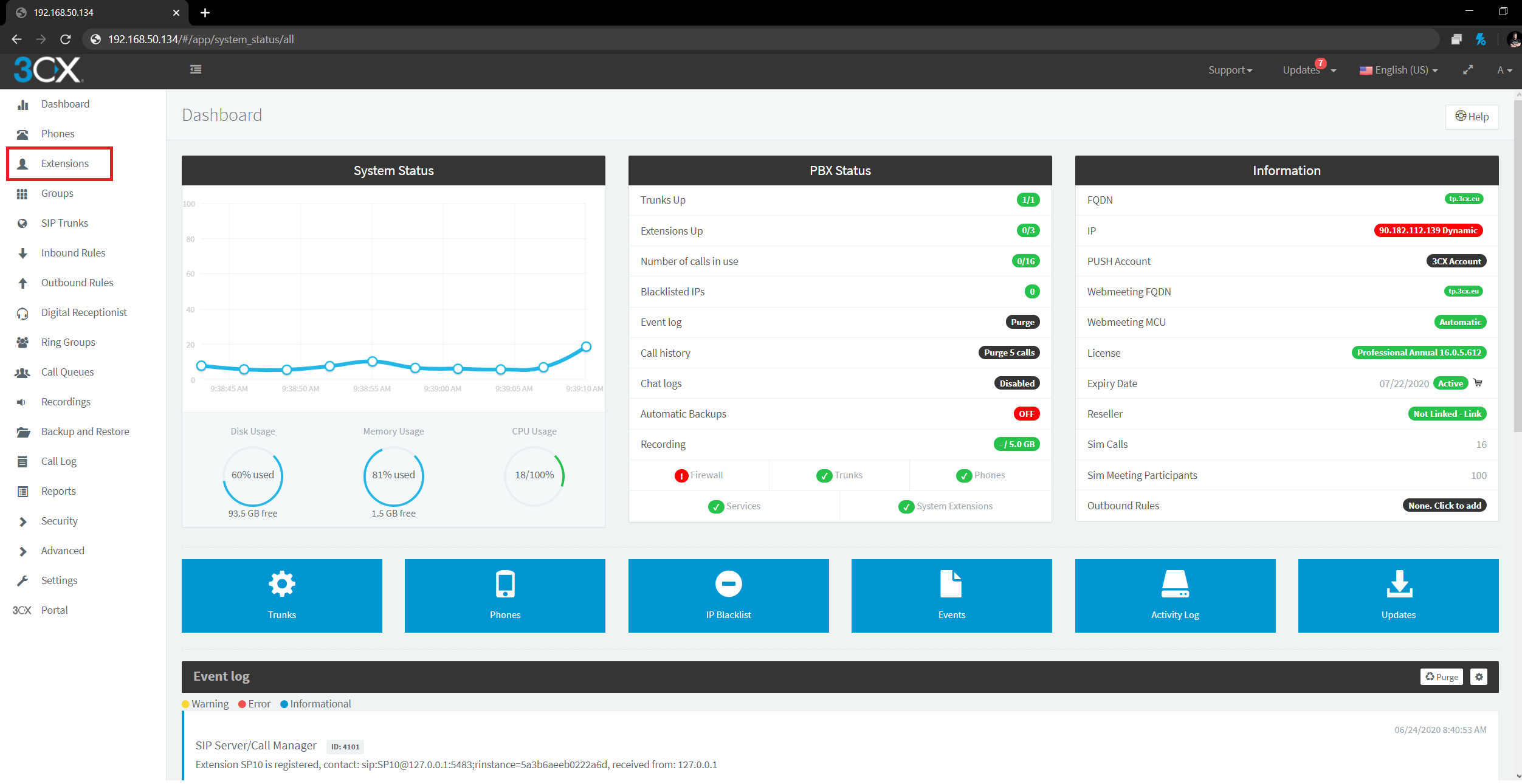

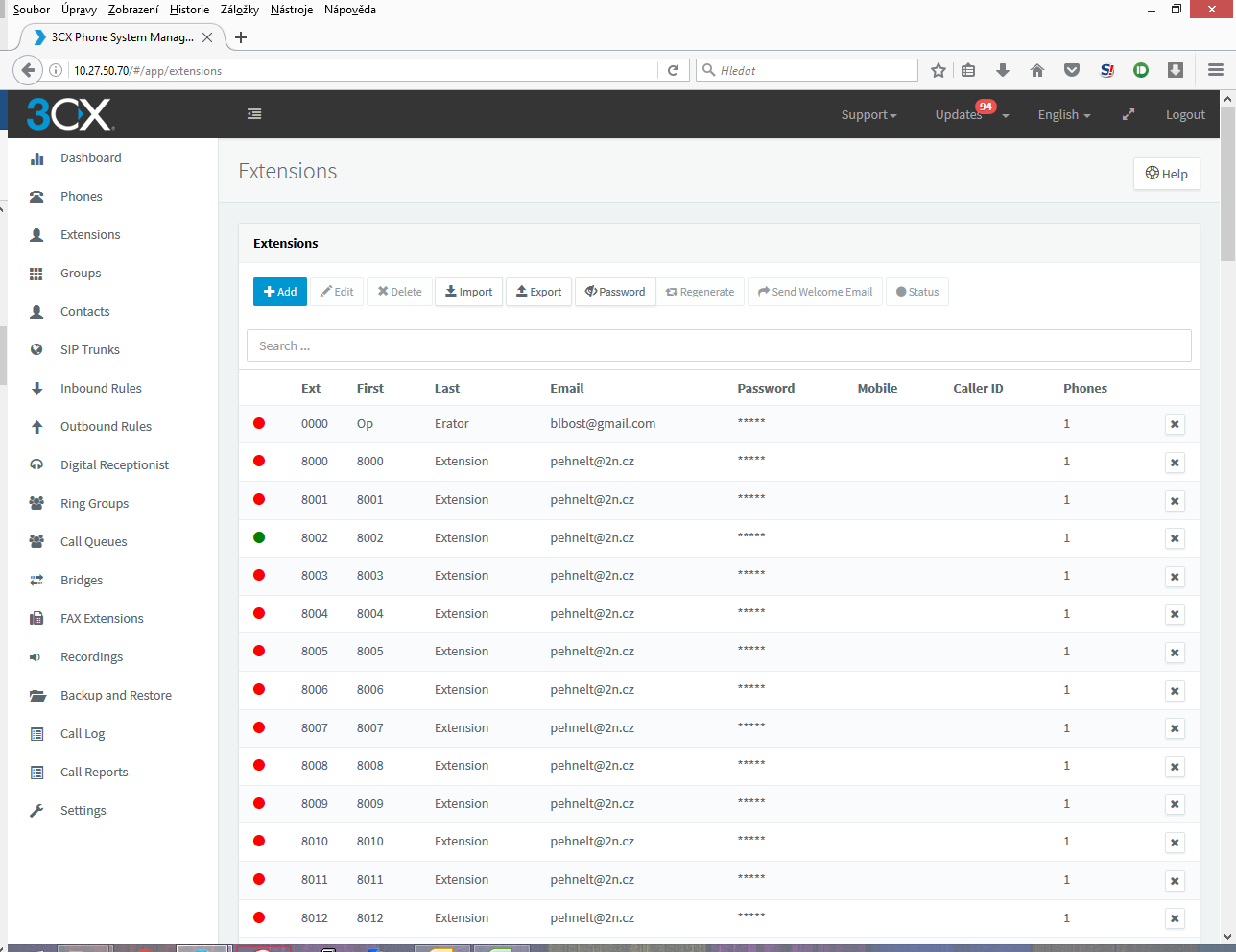

 To create new Extension for 2N IP Intercom Devices, 3CX Web Configuration go to Extensions.

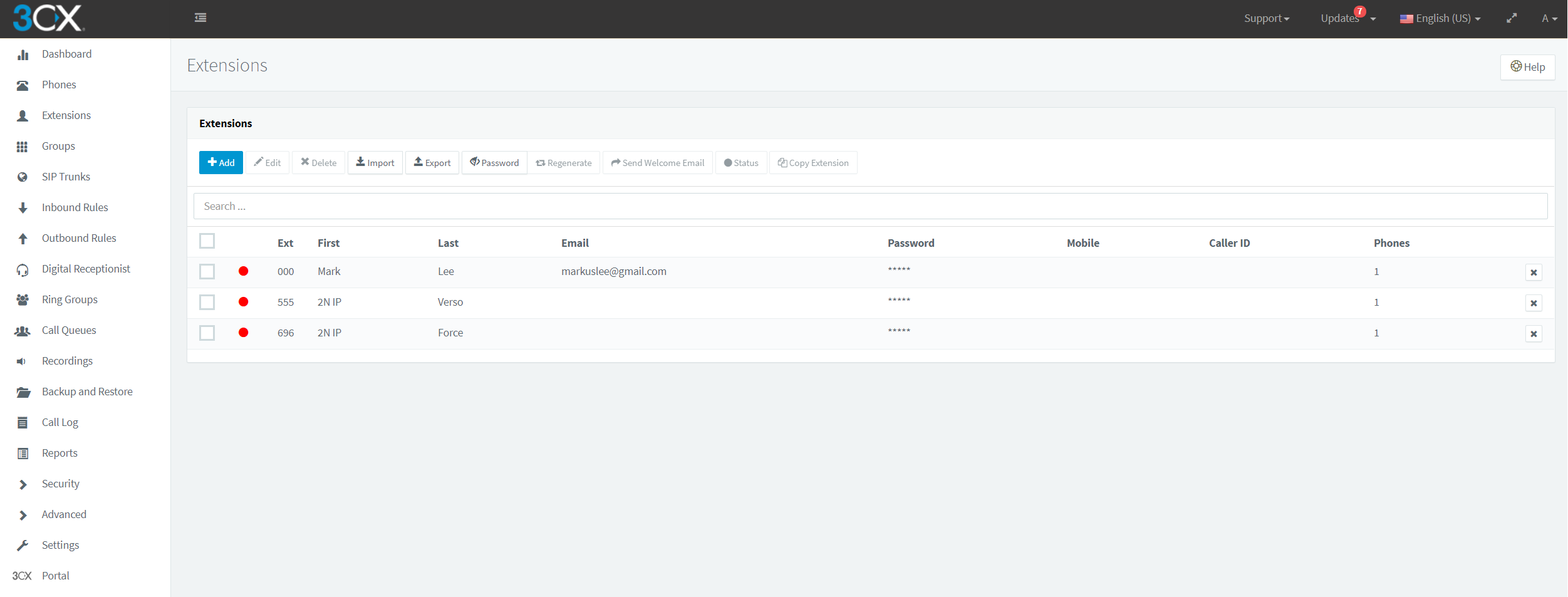

In Extensions menu click on "+Add" to create new extension.

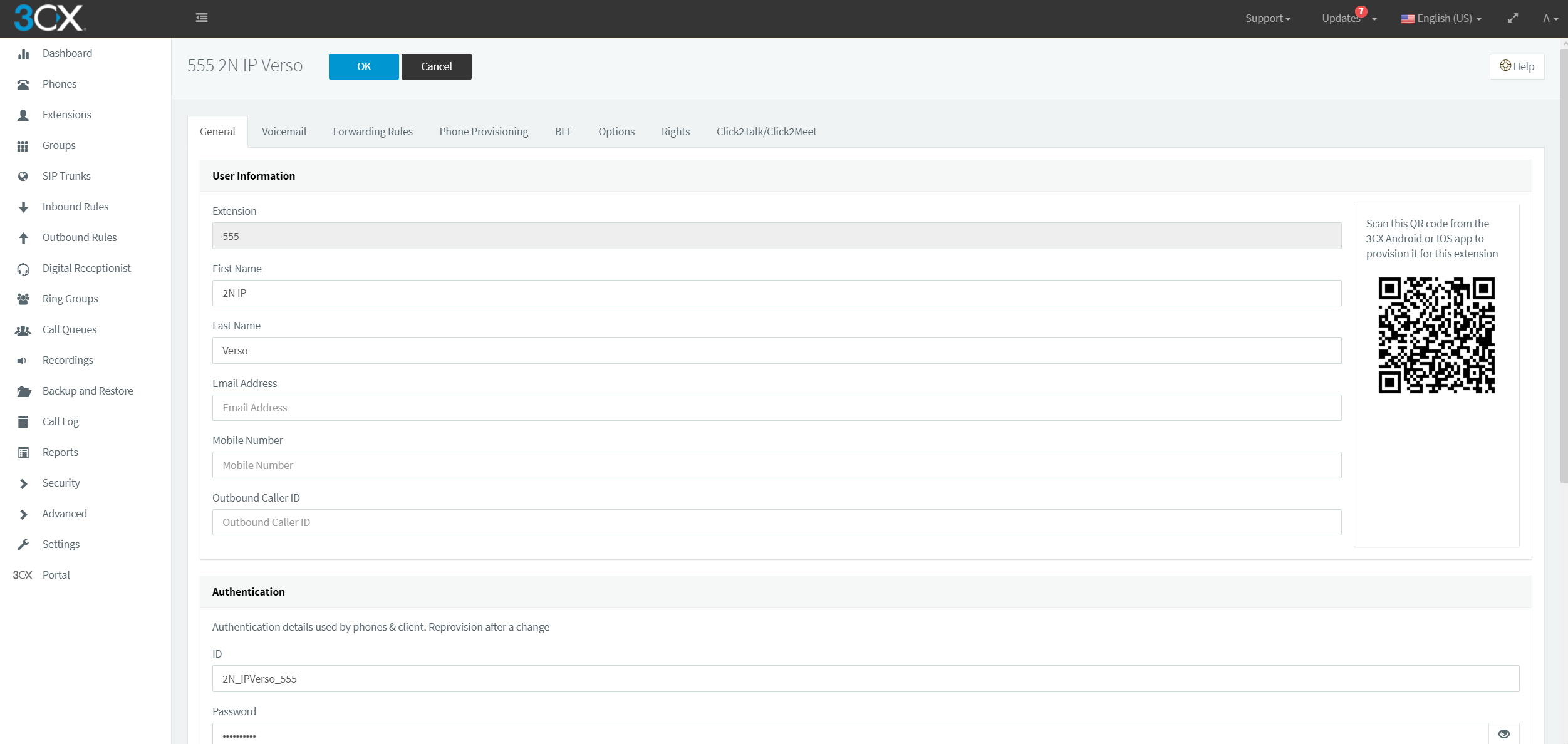

Fill in credentials to be used for 2N IP Intercom. In this Example Phone Number = 5555, AuthID = 2N_IPVerso_555 (Min. requirements are: 10chars,1uppercase,1 lowercase,1digit), and a password for authentication. Confirm by blue OK button on top of the screen.

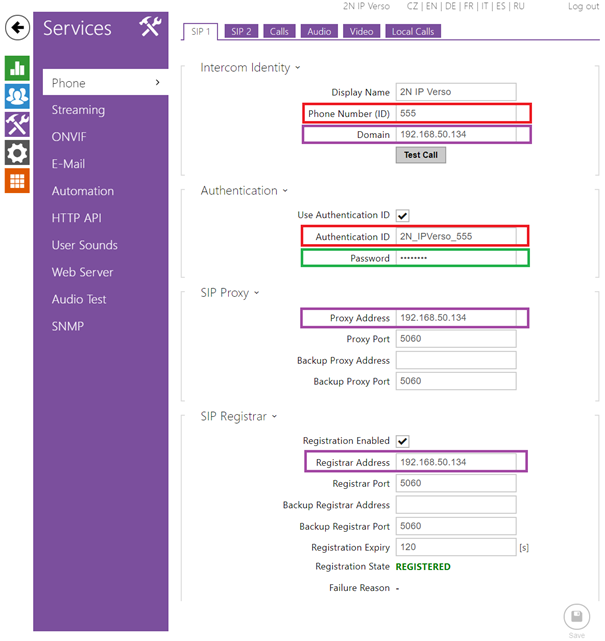

 In Web configuration of your fill in credentials created in 3CX Phone System Configuration

Fill in Extension number in Phone (ID) and Authentication ID from 3CX PBX to Authentication ID.
Fill in the IP address to 3CX Phone System in to Domain, Proxy Address and Registrar address boxes.

Fill in your Authentication password  in to the corresponding box.

Secure RTP(SRTP)

SRTP on 3CX Phone System

No special settings are required to be made in 3CX Phone System.

SRTP on 2N IP Intercom

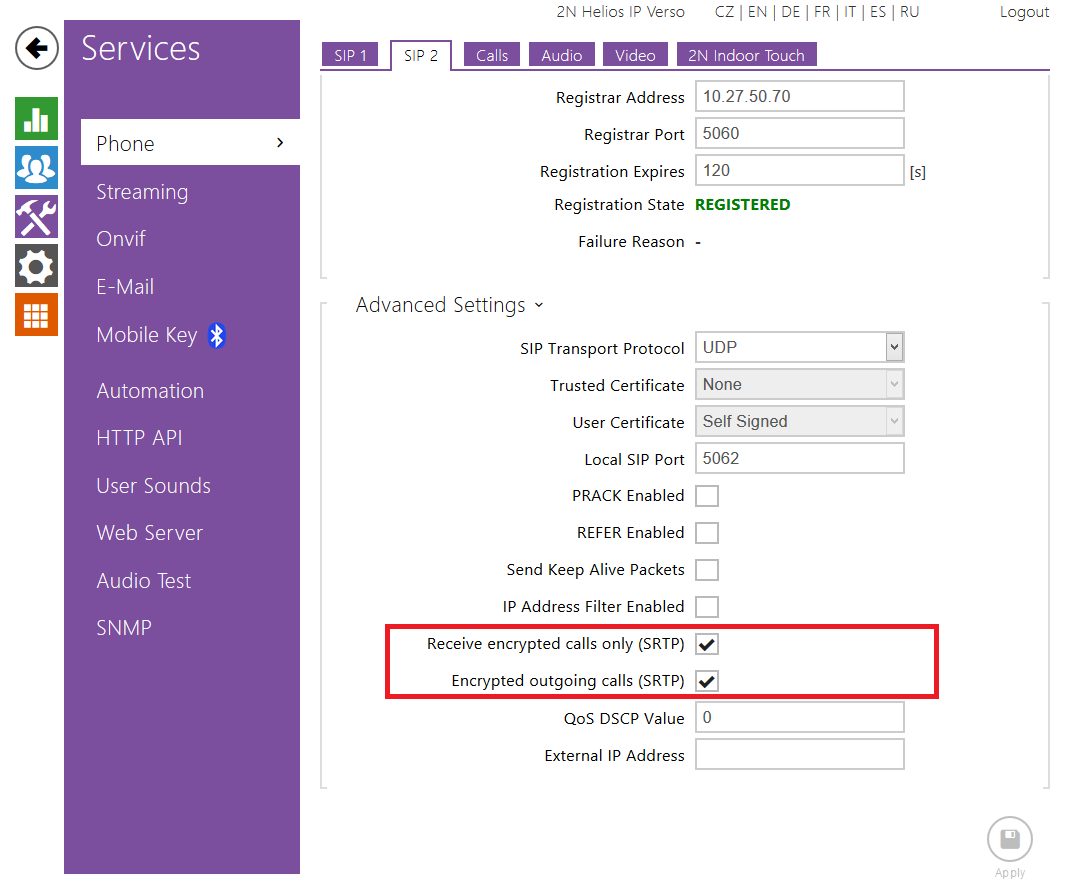

Go to SIP settings in Services and in Advanced settings enable recieving and transmitting of SRTP calls.



Version 15

Tested with

3CX Phone System2N IP IntercomRegistrationsCallsSecure RTP (SRTPVideo Preview
15.5.6354.2
2.31.0.40.5
(tikot)(tikot)(tikot)(chyba)
15.0.60903.02.18.0.27.5(tikot)(tikot)(tikot)not tested

Settings

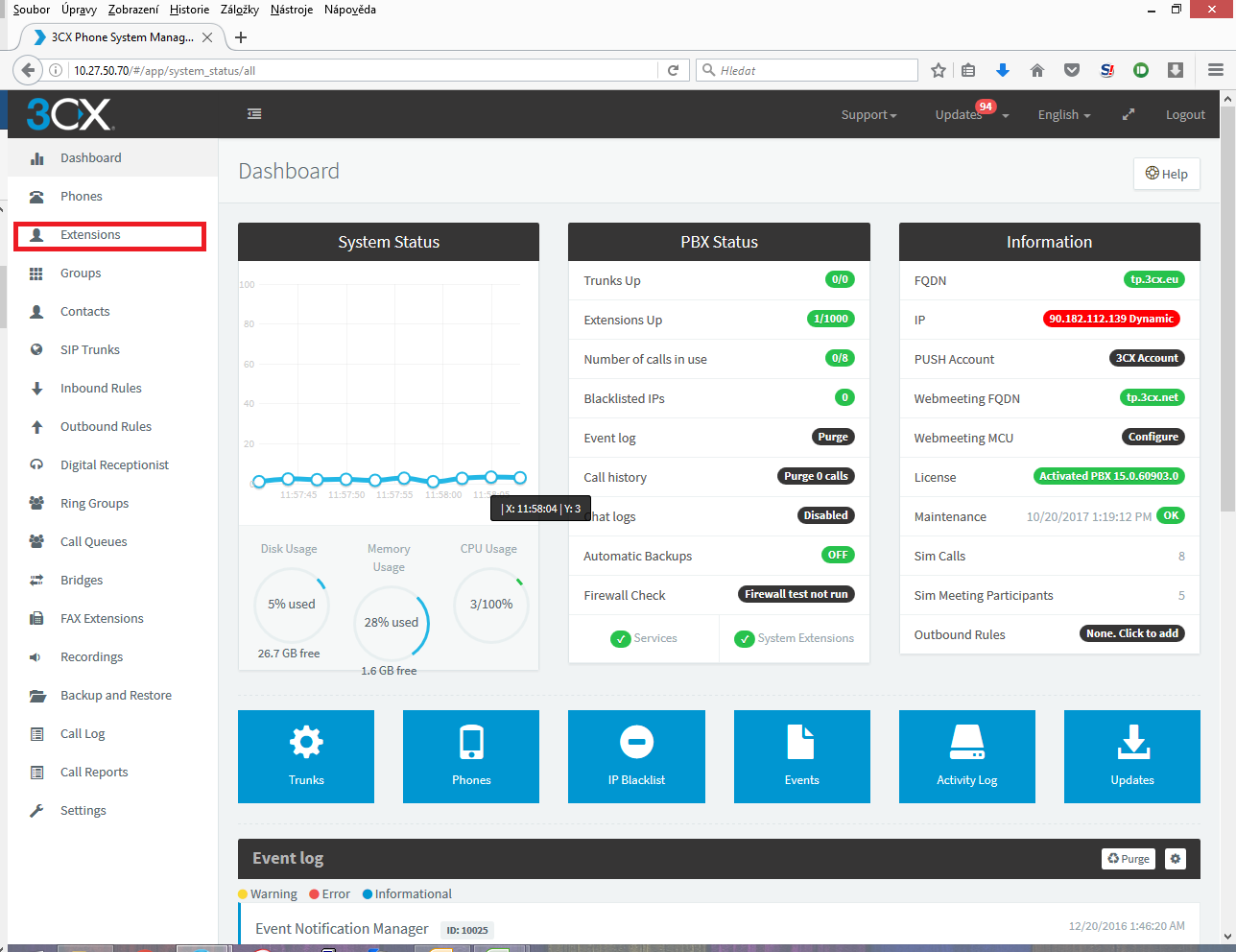

 To create new Extension for 2N IP Intercom Devices, 3CX Web Configuration go to Extensions.

In Extensions menu click on "+Add" to create new extension.

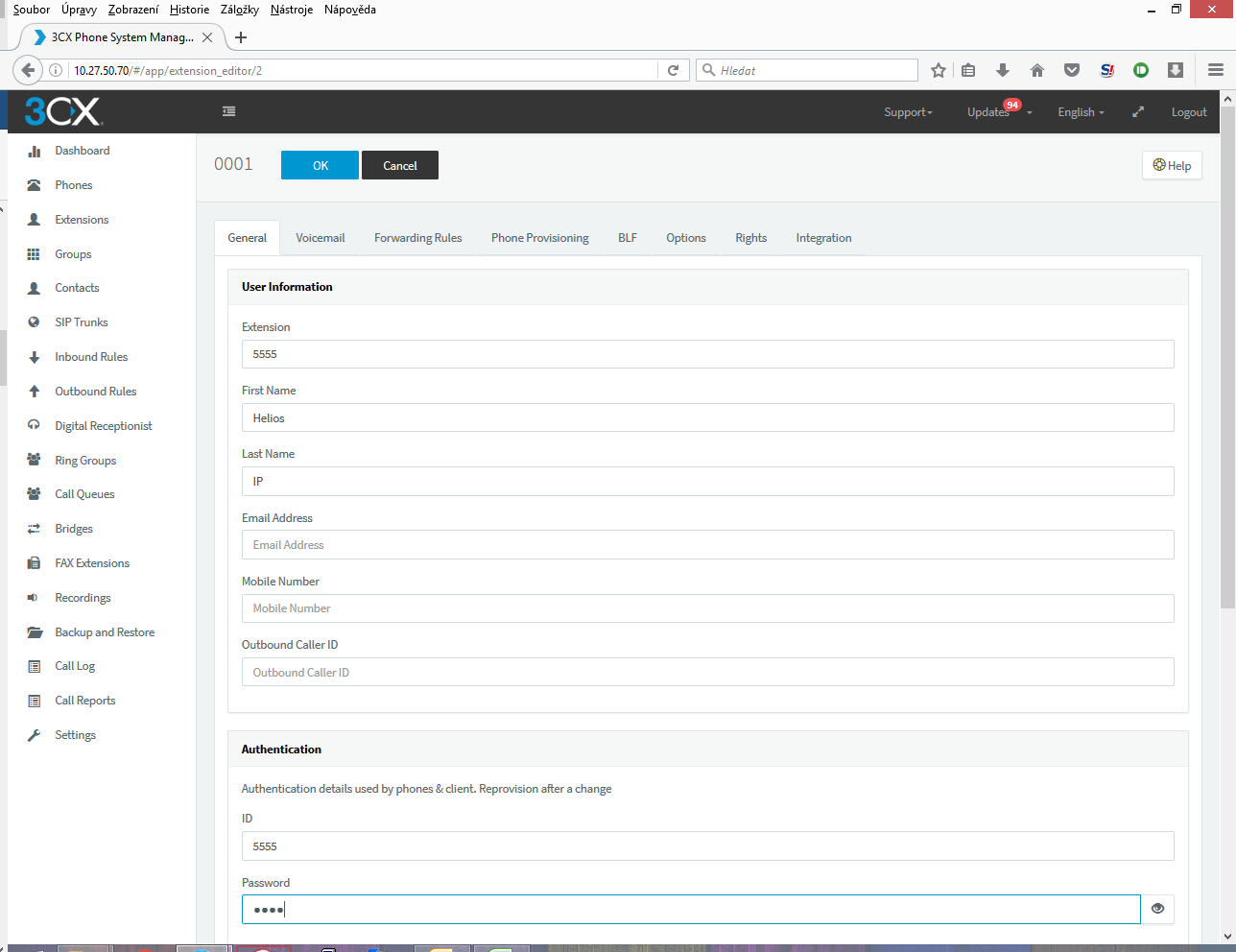

Fill in credetials to be used for 2N IP Intercom. In this Example Phone Number /Auth ID 5555, and a password for authentication. Confirm by blue OK button on top of the screen.

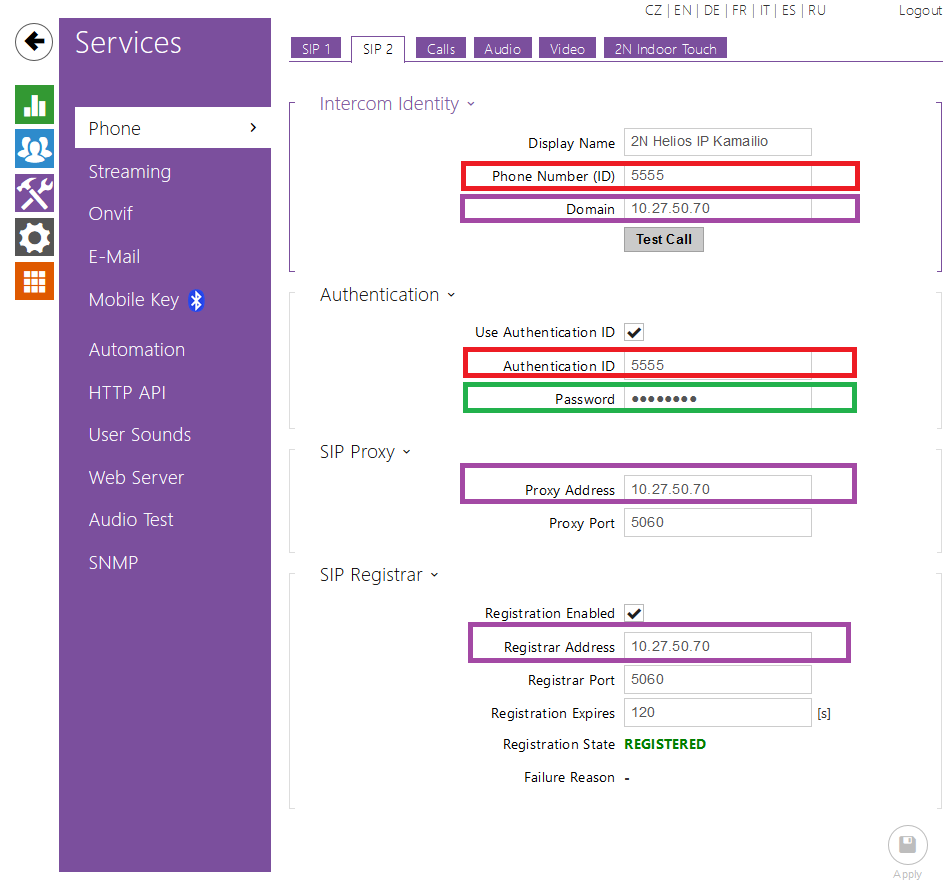

In Web configuration of your fill in credentials created in 3CX Phone System Configuration

  • Fill in Extension number in Phone (ID) and Authentication ID from 3CX PBX to Authentication ID.
  • Fill in the IP address to 3CX Phone System in to Domain, Proxy Address and Registrar address boxes.
  • Fill in your Authentication password  in to the corresponding box.

SRTP on 3CX Phone System

No special settings are required to be made in 3CX Phone System.

SRTP on 2N IP Intercom

Go to SIP settings in Services and in Advanced settings enable recieving and transmitting of SRTP calls.

Required licenses

  • Enhanced Security for SRTP

Version 12

Tested with

3CX Phone System2N IP IntercomRegistrationsCallsSecure RTP (SRTP)
12.5.39117.982

2.12.1.21.5

(tikot)(tikot)Un-Tested

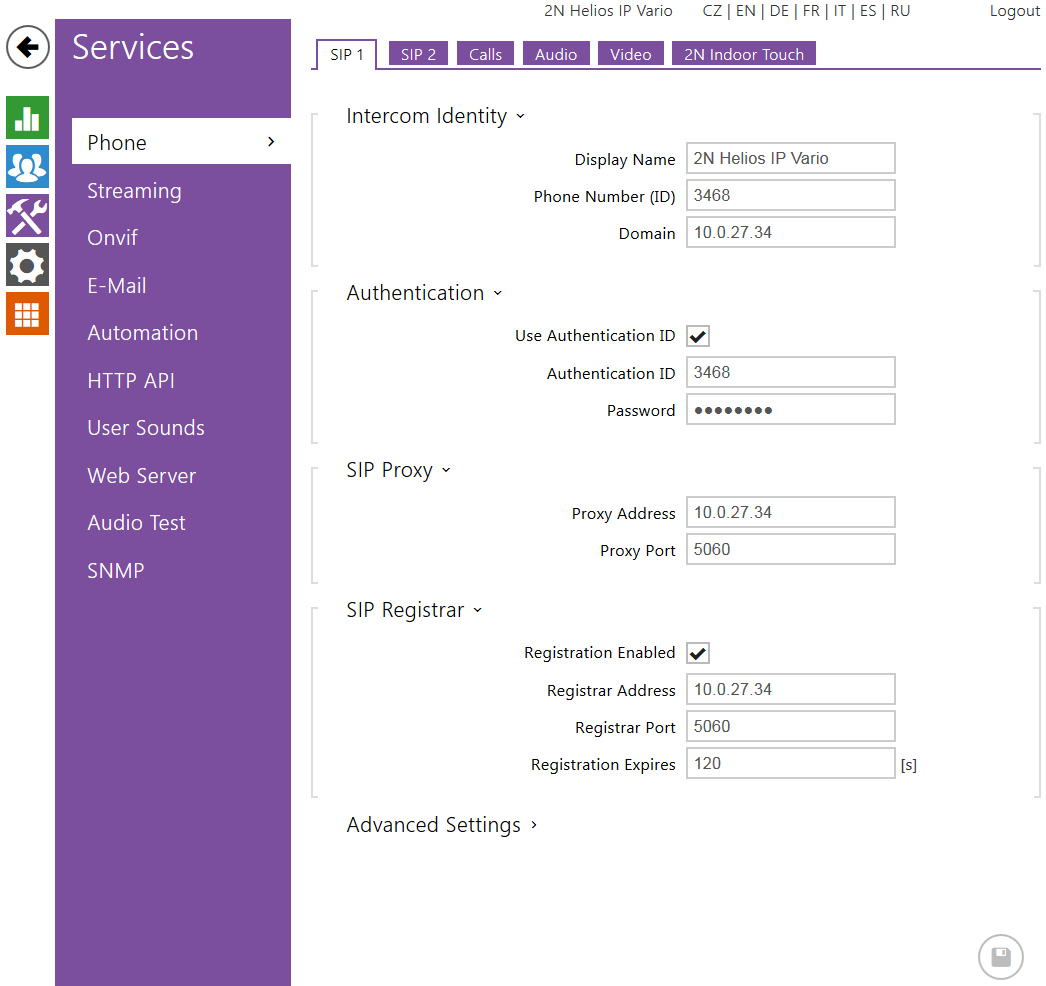

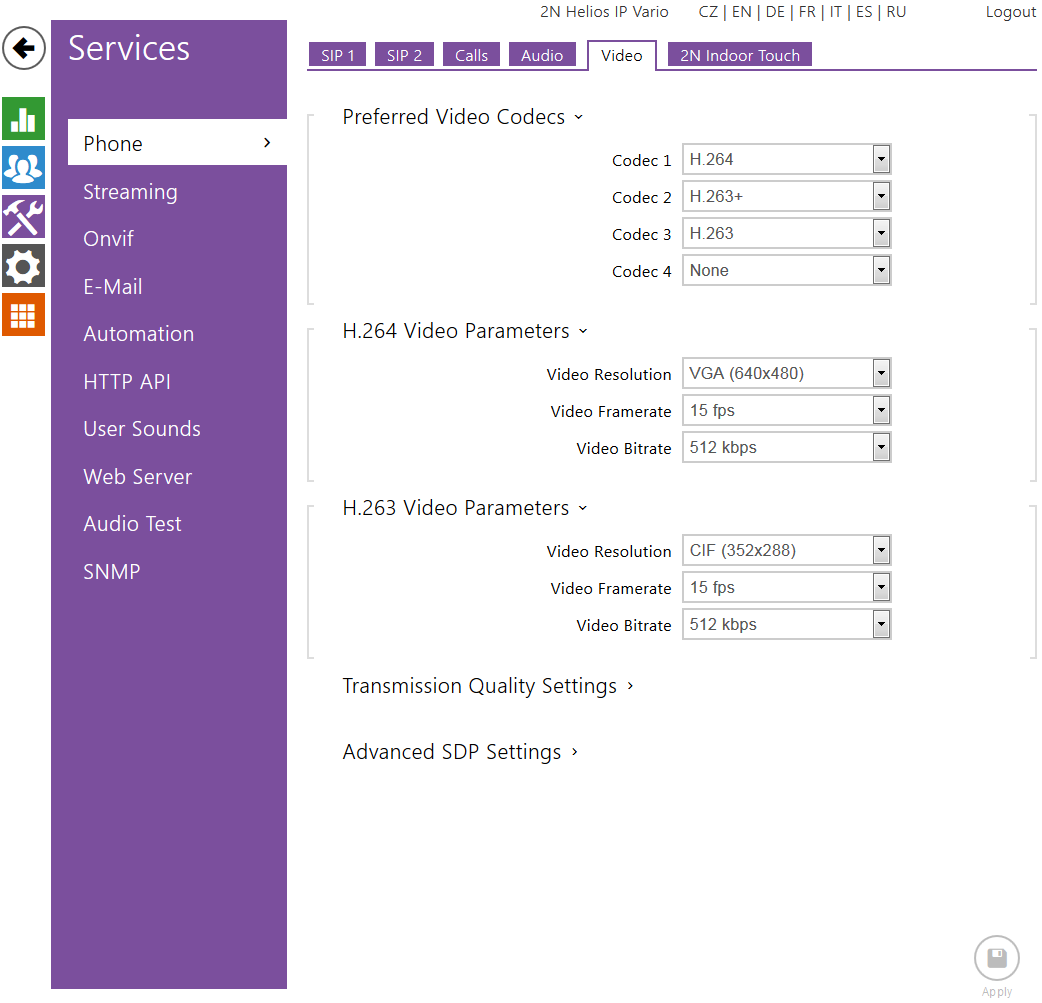

Settings

Version 11

Tested with

3CX Phone System2N IP intercomRegistrationsCalls
112.1.0.3.13(tikot)(tikot)

Settings

3CX VoIP server version 11 - How to configure it with 2N IP Intercom?

The 2N IP intercom can be integrated into a 3CX VoIP server version 11, which is a SIP Protocol based IP PBX. 2N IP intercom operates as an SIP subscriber and can stream its video to the IP telephone. For full integration of the door intercom in the telecom system no additional equipment is needed.

Compatibility test:

  • Audio call
  • Video call
  • DTMF transfer

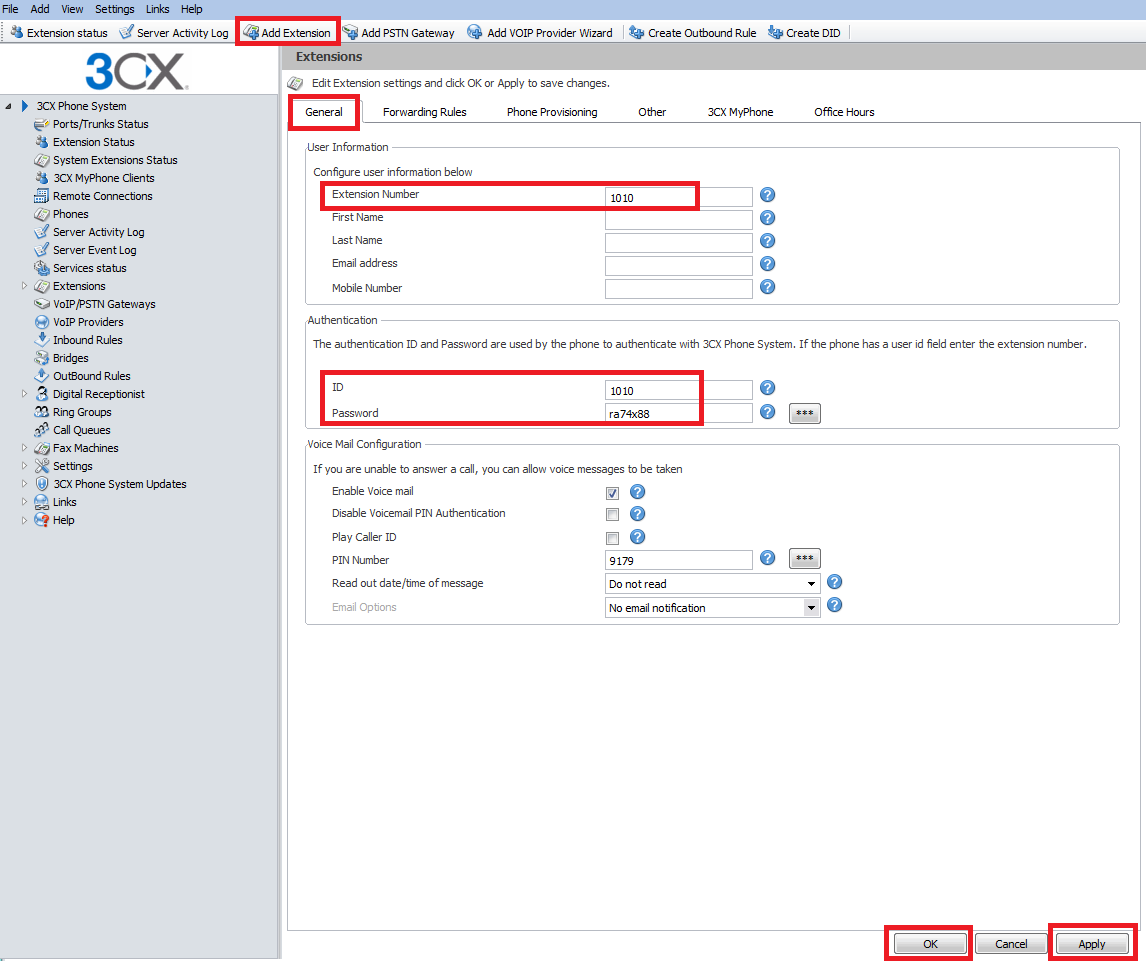

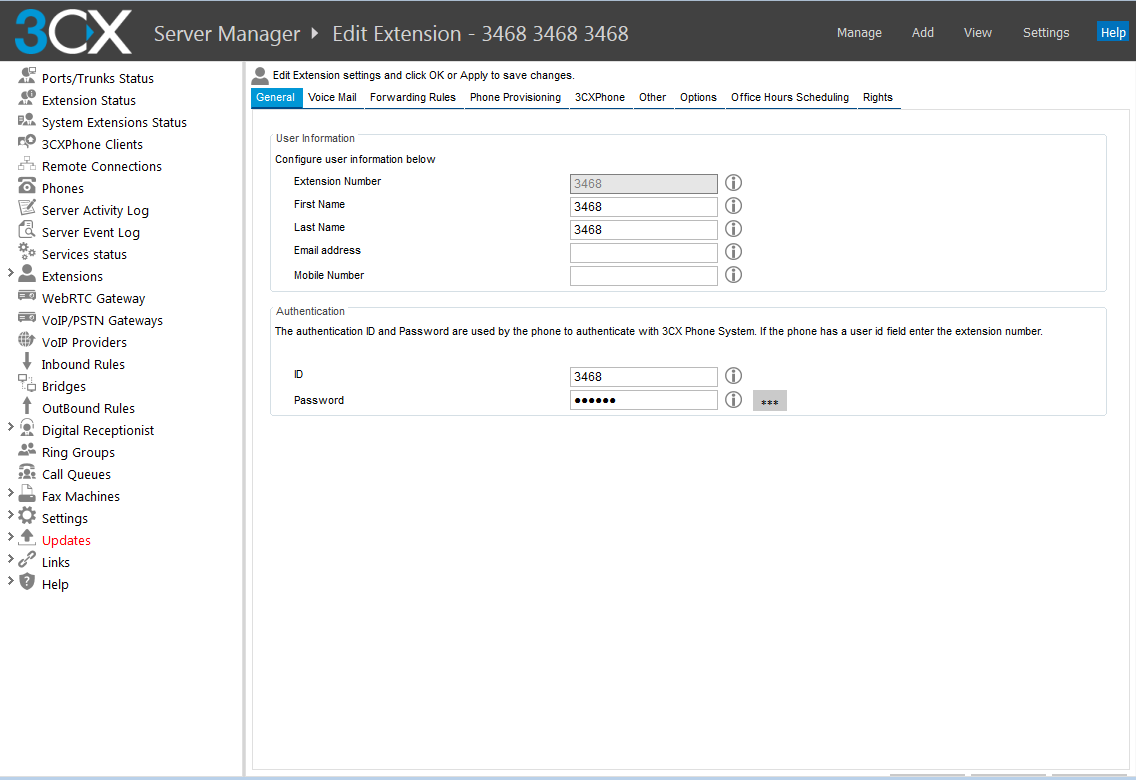

1. As very first step configure new client in a 3CX VoIP server. Follow the steps from (Pic. 1). Go to the section "Add Extension" and tab "General" over there you need to fill "Extension Number". In the "Authentication" part fill in "ID" and "Password". You can keep the one which was automatically generated. Click "OK" or "Apply" to save changes.

2. From 2N IP intercom side go to the section "Advanced Settings" and tab "SIP Settings" over there you need to fill "User ID" and "Password" which match to the "ID" and "Password" set in the 3CX side, see (Pic.2).
3. To enable the video go to the section "Advanced Settings", tab "Video Codecs" over there you have to allow codec H.263 on the first position and disable the rest, see (Pic. 3).


4. To verify that you successfully register 2N IP intercom terminal into the 3CX virtual PBX version 11. Go to the section "Information" in the 2N IP intercom or section "Extension Status" in the 3CX VoIP server.

Version 9

Tested with

3CX Phone System2N IP intercomRegistrationsCalls
92.1.0.3.13(tikot)(tikot)

Settings

The 2N IP intercom can be integrated into a 3CX VoIP server version 9 which is a SIP Protocol based IP PBX. 2N IP intercom operates as an SIP subscriber and can stream its video to the IP telephone. For full integration of the door intercom in the telecom system is no additional equipment needed.

Compatibility test:

  • Audio call
  • Video call
  • DTMF transfer

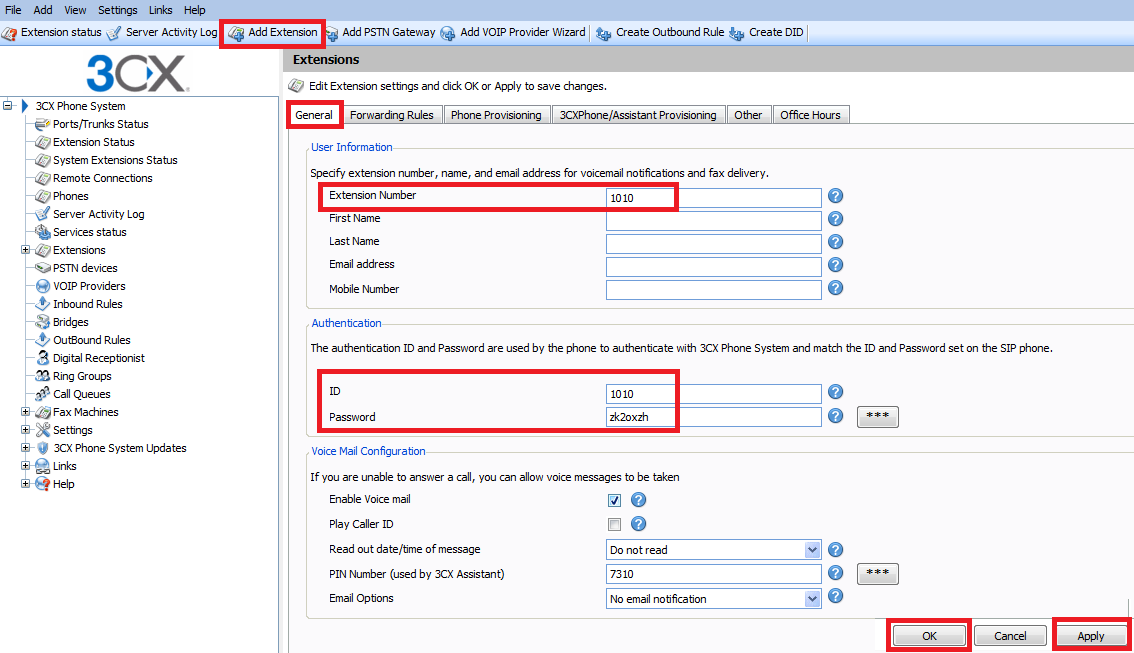

1. As a very first step configure new client in a 3CX VoIP server. Follow the steps from (Pic. 1). Go to section "Add Extension" and tab "General" over there, you need to fill "Extension Number". In the "Authentication" part fill in "ID" and "Password". You can keep the one which was automatically generated. Click "OK" or "Apply" to save changes.

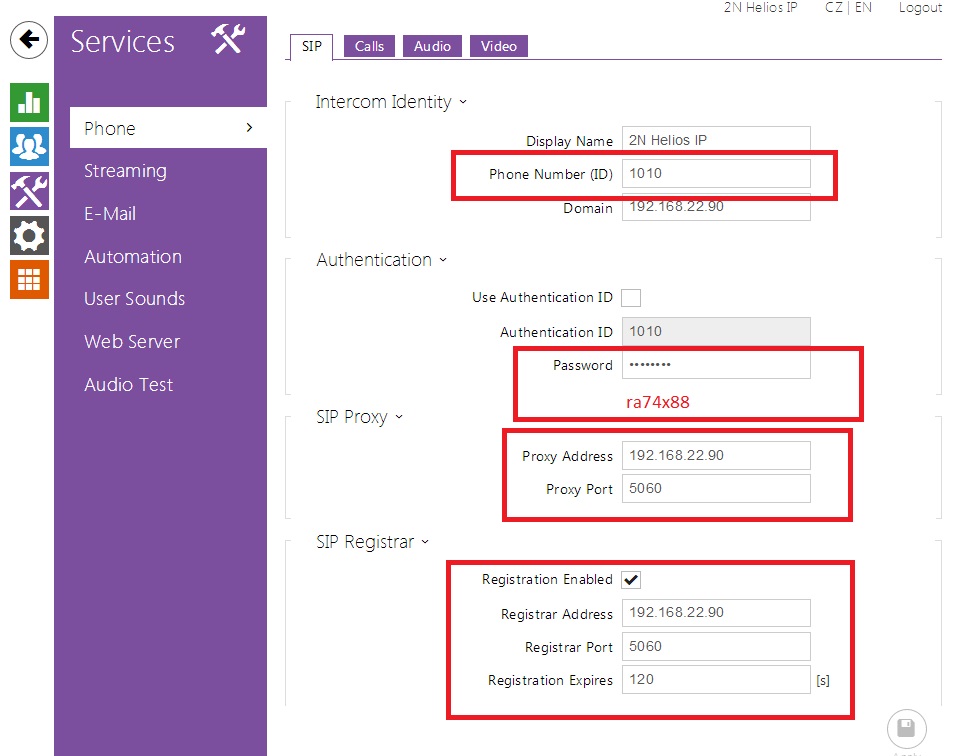

2. From 2N IP intercom side go to the section "Advanced Settings" and tab "SIP Settings" over there you need to fill "User ID" and "Password" which match to the "ID" and "Password" set in the 3CX side, see (Pic.2).

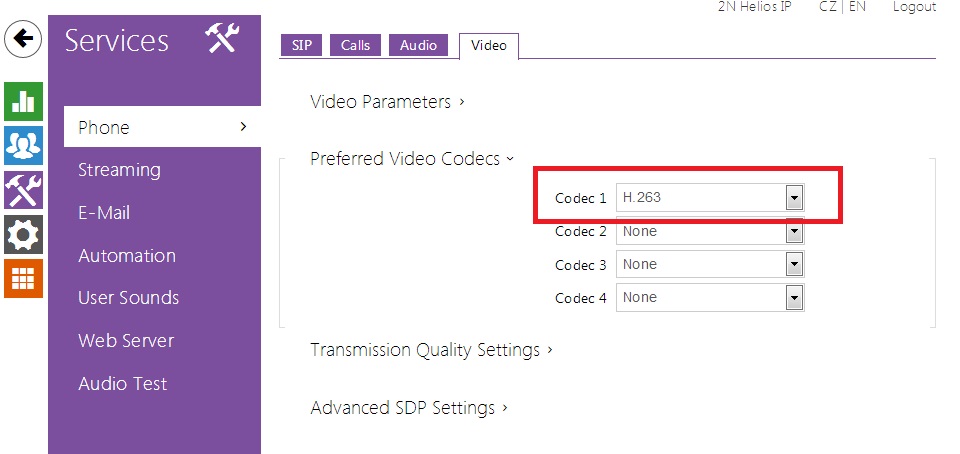

3. To enable the video go to the section "Advanced Settings", tab "Video Codecs" over there you have to allow codec H.263 on the first position and disable the rest, see (Pic. 3).



4. In order to verify that you have successfully registered 2N IP intercom terminal into the 3CX virtual PBX version 9, go to the section "Information" in the 2N IP intercom or section "Extension Status" in the 3CX VoIP server.

For the FW version 2.6 and higher you can find this in Menu Status-Services-Phone status.

Used Symbols

(tikot) - Verified with video

(zelená hvězda) - Verified with audio only

(varování) - Work with limitation

(chyba) - Incompatible
