1.1 Components and Associated Products

Basic Units

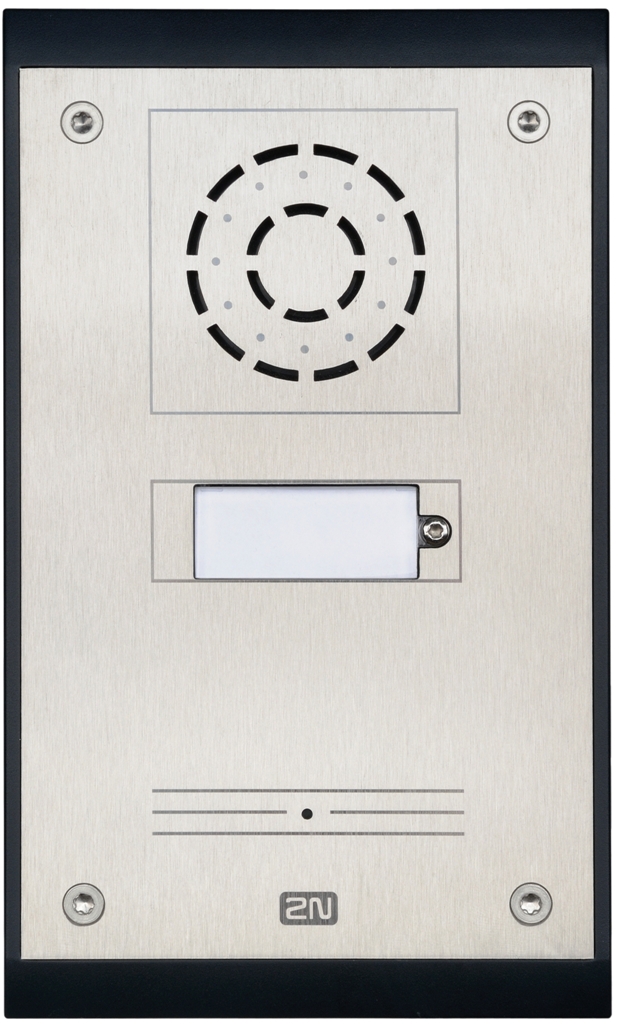

2N Part No. 9153101

Axis Part No. 01361-001

  • 1 button

  • control of one electric lock

  • protective switch

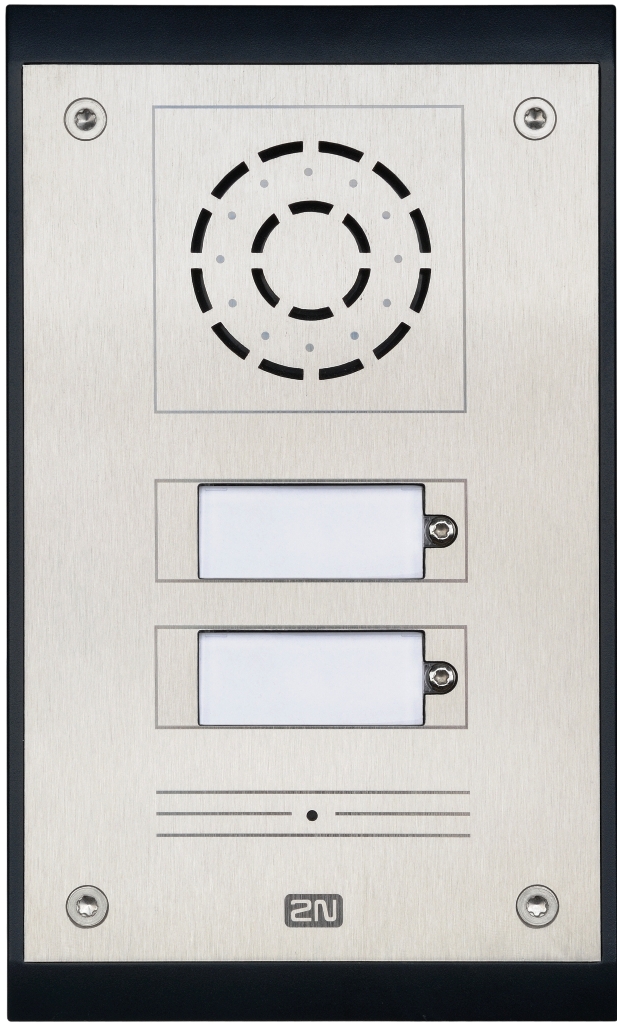

2N Part No. 9153102

Axis Part No. 01362-001

  • 2 buttons

  • control of one electric lock

  • protective switch

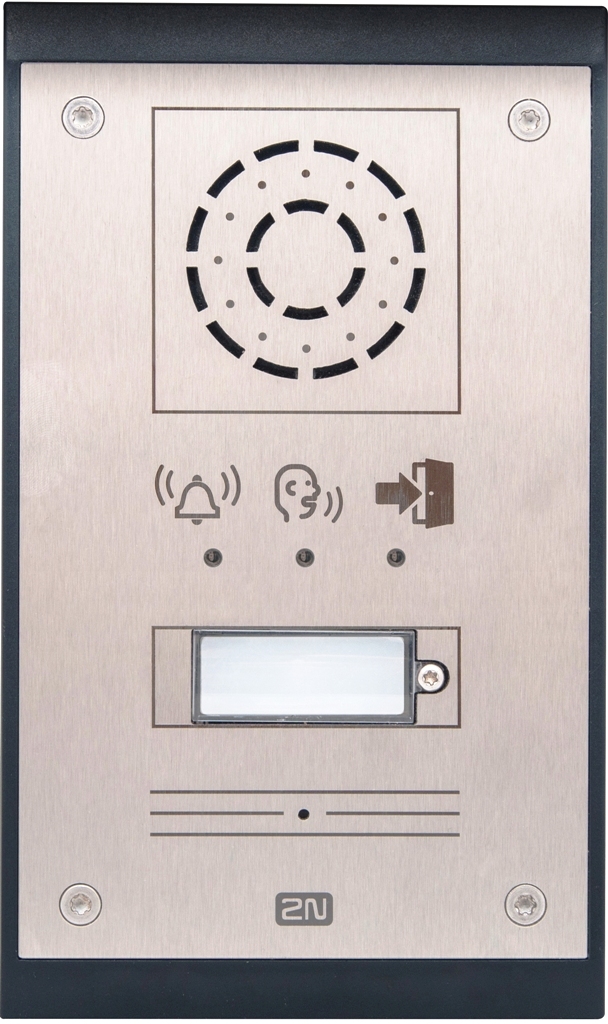

2N Part. No. 9153101P

Axis Part No. 01363-001

  • 1 button, pictograms

  • control of one electric lock

  • protective switch

All 2N IP Uni units can be flush mounted without requiring any additional accessories. Use the appropriate mounting box (see below) for wall (surface) mounting. 2N IP Uni  is designed for outdoor applications and requires no additional roof.

Mounting Accessories


2N Part No. 9153003

Axis Part No. 01364-001

  • Wall mounting box

  • (Al casting)



  • Brick flush mounting box

  • (included in the delivery)

2N Internal Units and Accessories


Part Numbers:

2N Part No. 91378375

Axis Part No. 01668-001

2N Part No. 91378376

Axis Part No. 01670-001

  • 2N Indoor Touch 2.0 - black

  • WiFi version (second part no.)

  • The elegant internal touch panel, 2N Indoor Touch 2.0, is suitable for all 2N IP intercoms. On the panel’s display not only can you find out who is at the door, but also start a conversation with the visitor, open the lock or turn on the light in the entrance hall.


2N Part No. 91378382

Axis Part No. 01425-001





  • 2N Indoor Touch desk stand black


Part Numbers:

2N Part No. 91378375WH

Axis Part No. 01669-001

2N Part No. 91378376WH

Axis Part No. 01671-001

  • 2N Indoor Touch 2.0 - white

  • WiFi version (second part no.)

  • The elegant internal touch panel, 2N Indoor Touch 2.0, is suitable for all 2N IP intercoms. On the panel’s display not only can you find out who is at the door, but also start a conversation with the visitor, open the lock or turn on the light in the entrance hall.


2N Part No. 91378382W

Axis Part No. 01426-001

  • 2N Indoor Touch desk stand white


2N Part No. 1120101W

Axis Part No. 02518-001

  • 2N IP Handset
  • answering unit
  • white color


2N Part No. 1120101B

Axis Part No. 02519-001



  • 2N IP Handset
  • answering unit
  • black color

IP Phones


2N Part No. 1120102

Axis Part No. 02660-001

  • 2N IP Phone D7A
  • simple operation
  • HD quality video calls
  • A display-equipped extender EXP50 (Part No. 91378363) can be added to the phone delivery to make up to 60 speed dialings.


2N Part No. 1120111EU

Axis Part No. 02544-001

  • Grandstream GXV3350 IP video phone
  • Android 7.0 OS
  • 5” touch display control
  • HD quality video calls
  • WiFi and Bluetooth support
  • HDMI output and pan tilt zoom camera
  • Easy integration with intercoms or PBXs via SIP

Electric Locks

  • These products have been removed from sale.

Part No. 11202101

  • Mini electronic doorstrike series 5
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • short sheet metal front cover version (130 mm)
  • 16 mm width

Part No. 11202101-L

  • Mini electronic doorstrike series 5 – long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • long sheet metal front cover version (250 mm)
  • 16 mm width

Part No. 11202102

  • Mini electronic doorstrike series 5 – with momentum pin
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • short sheet metal front cover version (130 mm)
  • 16 mm width

Part No. 11202102-L

  • Mini electronic doorstrike series 5 – with momentum pin, long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • long sheet metal front cover version (250 mm)
  • 16 mm width

Part No. 11202103

  • Mini electronic doorstrike series 5 – with mechanical blocking
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • short sheet metal front cover version (130 mm)
  • 16 mm width

Part No. 11202103-L

  • Mini electronic doorstrike series 5 – with mechanical blocking, long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • long sheet metal front cover version (250 mm)
  • 16 mm width

Part No. 11202104

  • Mini electronic doorstrike series 5 – door signaling
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • including a door state monitoring micro switch: open/closed
  • short sheet metal front cover version (130 mm)
  • 16 mm width

Part No. 11202104-L

  • Mini electronic doorstrike series 5 – door signaling, long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • including a door state monitoring micro switch: open/closed
  • long sheet metal front cover version (250 mm)
  • 16 mm width

Part No. 11202105

  • Mini electronic doorstrike series 5 – fail-safe
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • under voltage: opener secured, blocked
  • at voltage interruption: opener unblocked, door can be opened
  • short sheet metal front cover version (130 mm)
  • 16 mm width

Part No. 11202105-L

  • Mini electronic doorstrike series 5 – fail-safe, long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • under voltage: opener secured, blocked
  • at voltage interruption: opener unblocked, door can be opened
  • long sheet metal front cover version (250 mm)
  • 16 mm width

Part No. 11202106

  • Mini electronic doorstrike series 5 – fail-safe and door signaling
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • under voltage: opener secured, blocked
  • at voltage interruption: opener unblocked, door can be opened
  • short sheet metal front cover version (130 mm)
  • 16 mm width

Part No. 11202106-L

  • Mini electronic doorstrike series 5 – fail-safe and door signaling, long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • under voltage: opener secured, blocked
  • at voltage interruption: opener unblocked, door can be opened
  • long sheet metal front cover version (250 mm)
  • 16 mm width

Part No. 11202201

  • Electromechanical lock SAM 7255
  • 72/55 self-locking lock with panic function
  • A key is necessary for door opening from the outside (or an electric pulse from a connected 2N IP intercom / reader).
  • convenient solution for emergency exits

Part No. 11202201-M

  • Electromechanical lock SAM 7255 with monitoring
  • 72/55 self-locking lock with panic function
  • A key is necessary for door opening from the outside (or an electric pulse from a connected 2N IP intercom / reader).
  • convenient solution for emergency exits

Part No. 11202202

  • Electromechanical lock SAM 9235
  • 92/35 self-locking lock with panic function
  • A key is necessary for door opening from the outside (or an electric pulse from a connected 2N IP intercom / reader).
  • convenient solution for emergency exits

Part No. 11202202-M

  • Electromechanical lock SAM 9235 with monitoring
  • 92/35 self-locking lock with panic function
  • A key is necessary for door opening from the outside (or an electric pulse from a connected 2N IP intercom / reader).
  • convenient solution for emergency exits

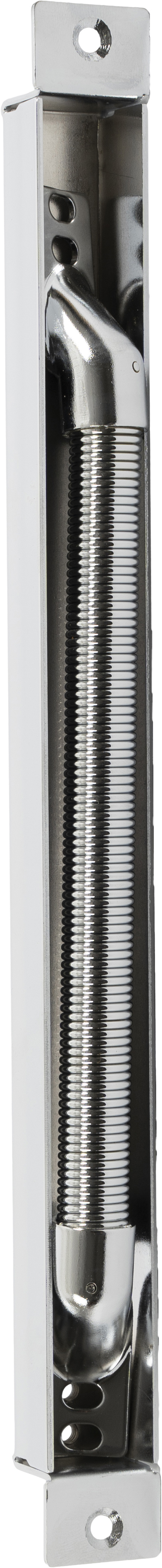

Part No. 11202301

  • Cable protector FX290
  • Provides secure passage and protection of the supply cable between the door frame and the door leaf.
  • 290 mm length

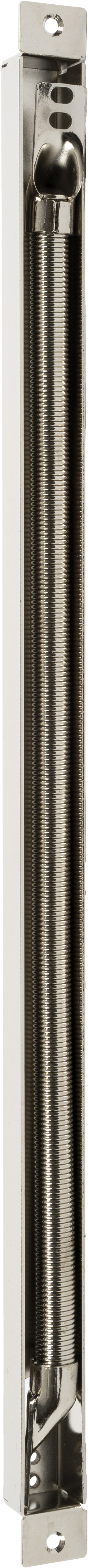

Part No. 11202302

  • Cable protector FX510
  • Provides secure passage and protection of the supply cable between the door frame and the door leaf.
  • 510 mm length

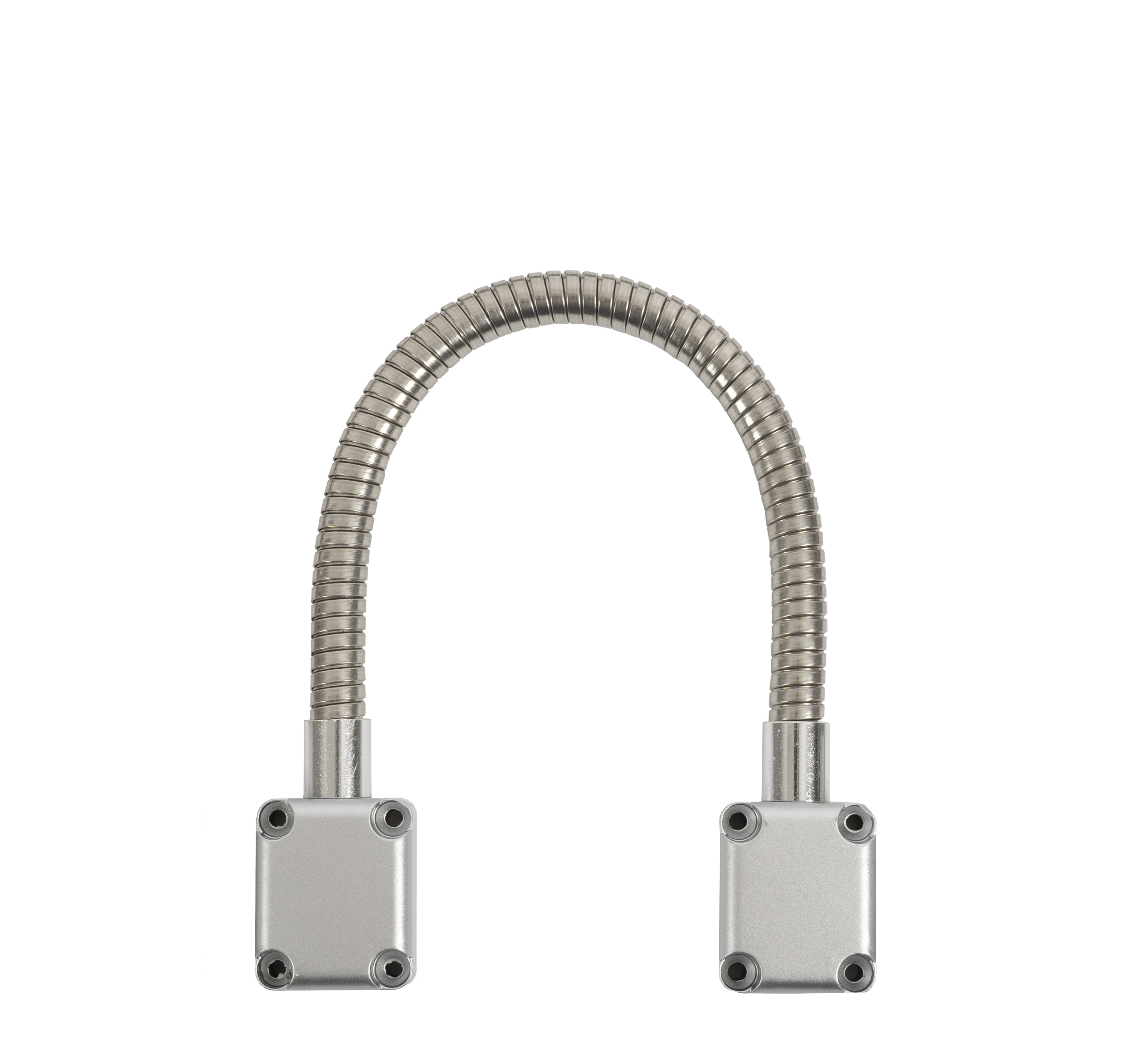

Part No. 11202303

  • Cable protector FX300G
  • Provides secure passage and protection of the supply cable between the door frame and the door leaf.
  • 440 mm length

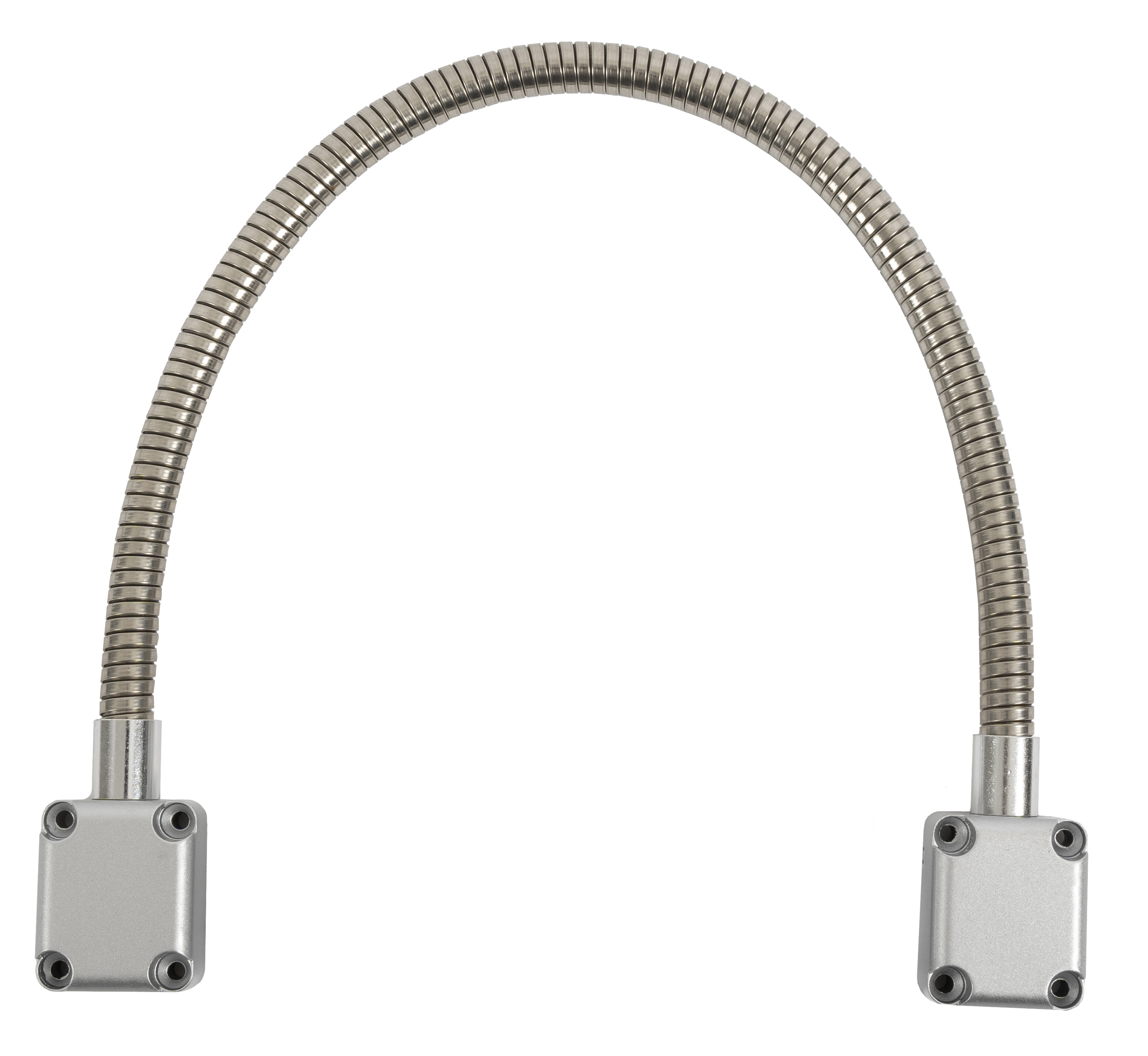

Part No. 11202304

  • Cable protector FX500G
  • Provides secure passage and protection of the supply cable between the door frame and the door leaf.
  • 640 mm length

Part No. 11202203

  • Supply cable with 14-core connector
  • 6000 mm length
  • Conductor cross section: 14 × 0.22 mm
  • Terminated with a connector on one side
  • Designed for 11202201-M and 11202202-M locks

Part No. 11202107

  • Maglock MEX100
  • used as a door holding supplement, not replacing the lock
  • consists of two parts: supplied part and counterpart
  • under voltage: door cannot be opened
  • at voltage interruption: magnets get disconnected, door opens

Part No. 11202501

  • Magnetic handle P300RP
  • fully replaces a mortise lock and handle
  • under voltage: door cannot be opened
  • at voltage interruption: magnets get disconnected, door opens
  • suitable for wooden, metal and glass doors

Part No. 11202401

  • ED100
  • low energy simple door operator
  • contactless operation
  • can be interconnected with a motion sensor and electronic access control system
  • applicable for right / left doors
  • in / out opening versions

Tip

Power Supply


Part Numbers:

2N Part No. 91378100E

2N Part No. 91378100US

Axis Part No. 01403-001





  • PoE injetor – with EU cable

  • PoE injector – with US cable

  • For power supply of intercom via ethernet cable when PoE switch is not available.



Part No. 91341481E

  • Stabilised 12 V / 2 A power supply needs to be used when no PoE is available.


Part No. 932928

  • 12 V transformer

  • For 230 V mains voltage.

  • For external power supply of the lock with 12 V AC voltage.


Additional Modules


2N Part No. 9159010

Axis Part No. 01386-001

  • 2N Security Relay

  • A handy add-on that significantly enhances door entry security as it prevents tampering with the intercom and forced opening of the lock. To be installed between intercom and lock, powered by the intercom.


Part No. 9159013

  • Exit button

  • (suitable for Security relay)

  • A button for connection to a logic input for opening a door inside a building.

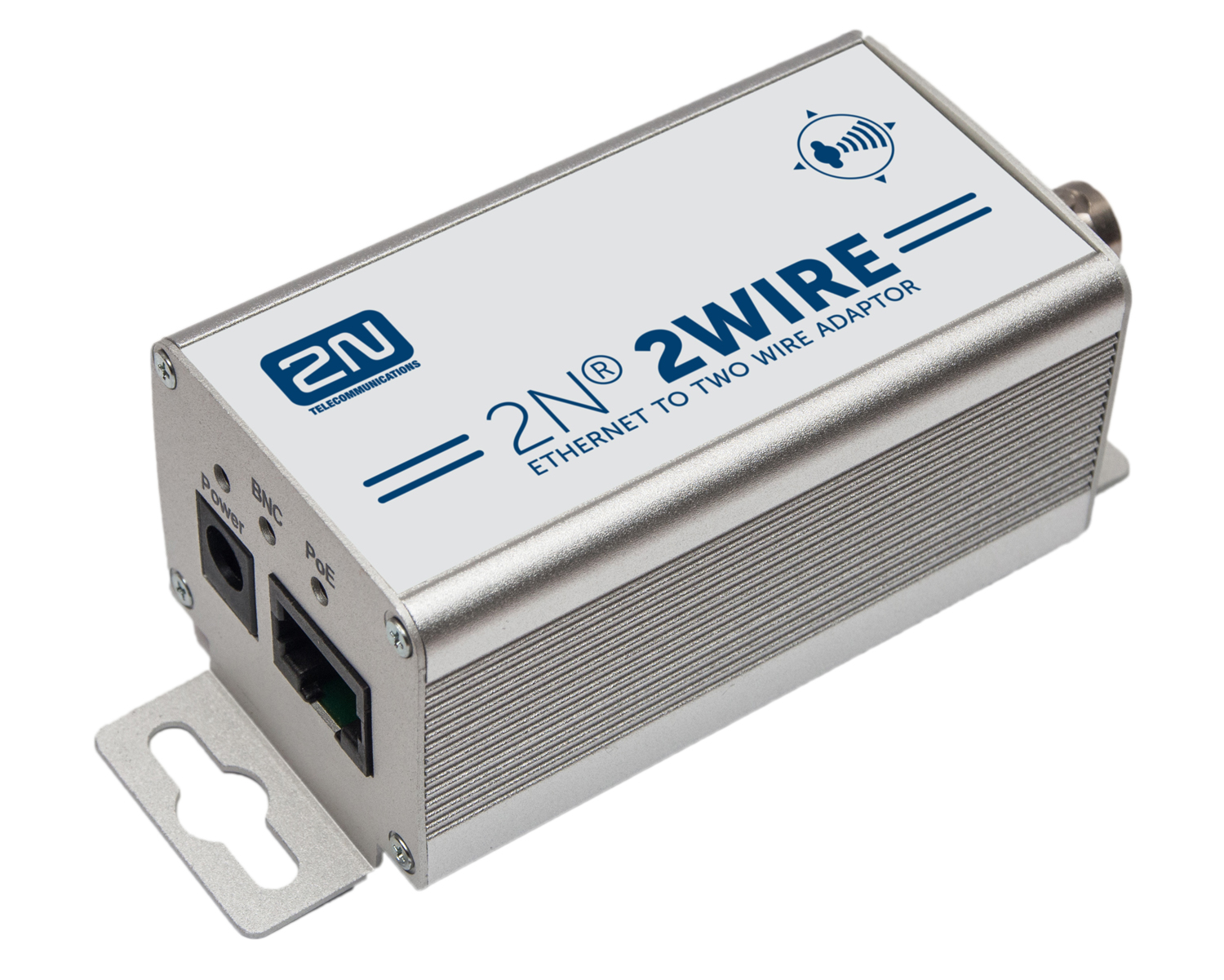

Part No. 9159014EU/UK

Part No. 9159014US

Axis Part No. 01404-001

  • 2N 2Wire

  • (set of 2 adaptors and power source for EU/US/UK)

  • The 2N 2Wireconverter allows you to use existing wiring (2 wires) from your original door bell or door intercom to connect any IP device. You don’t have to configure anything, and you only need one 2N 2Wire unit at each end of the cable and a power source connected to at least one of these units.
    The 2N 2Wire unit then provides PoE power not only to the second converter, but also to all other connected IP end devices.


2N Part No. 9159050

Axis Part No. 01391-001

  • 2N Induction Loop

  • An induction loop transmits sound wirelessly from the 2N IP intercom to the earphones of people with hearing disabilities and enables them to hear and perceive sounds better.

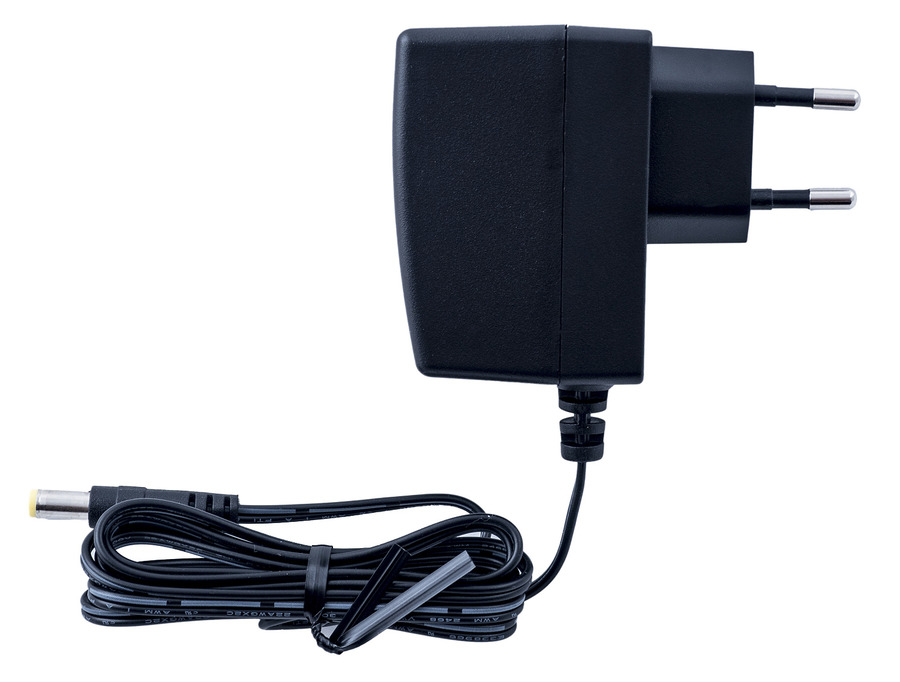

2N Part No. 9159052

Axis Part No. 01393-001

  • Stabilised 12 V / 2 A power supply needs to be used when no PoE is available.

Tip

  • For more accessories and particular advice please contact your local distributor of 2N products.
