5.4.10 SNMP

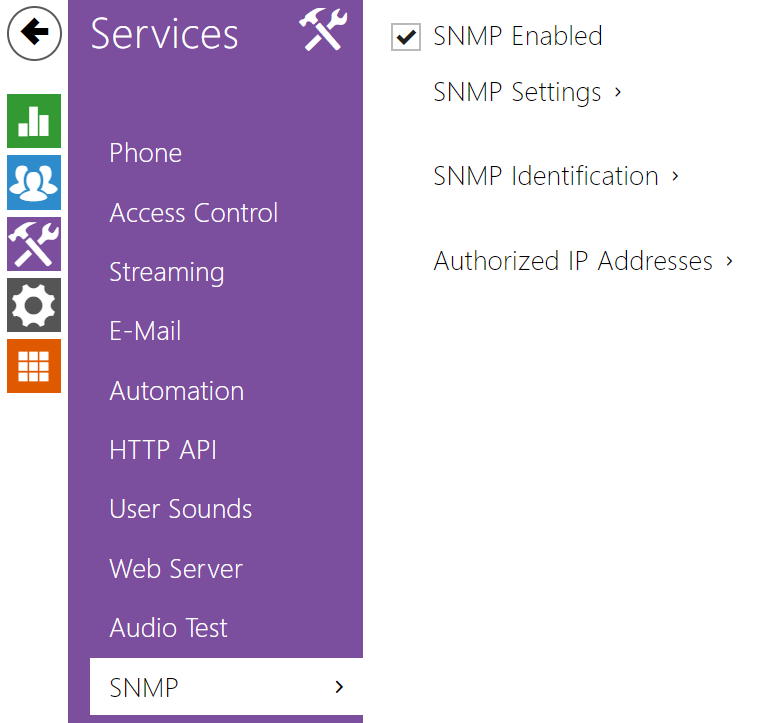

The 2N LTE intercoms integrate a remote intercom supervision functionality via the SNMP. The integrated SNMP agent becomes available when the Enhanced Integration licence key is added. The intercoms support the SNMP version 2c.

List of Parameters



  • Community string – text string representing the access key to the MIB table objects.
  • Trap IP address – IP address to which the SNMP traps are to be sent.

Note

  • Traps are not supported at the present version. 2N LTE intercom operates with request - response messages.
  • Download MIB file – download the current MIB definition from a device.

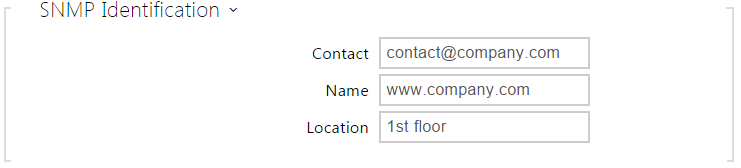

  • Contact – enter the device manager contact (name, e-mail, etc.).
  • Name – enter the device name.
  • Location – enter the device location (1st floor, e.g.).

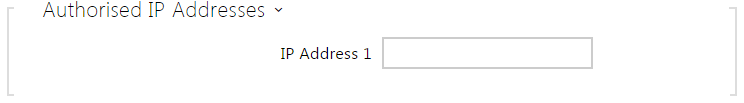

  • IP address– enter up to 4 valid IP addresses for SNMP agent access to block access from other addresses. If the field is empty, the device may be accessed from any IP address.
