1.2 Components and Associated Products

2N Lift8 System Components

Notification

  • The components of the 2N Lift8 system cannot be used outside this system.
  • The audio units cannot be connected to a telephone line without the CU!
  • When shared by multiple shafts, the audio units cannot be connected without the CU and splitters.


918600/E/D/AU/US

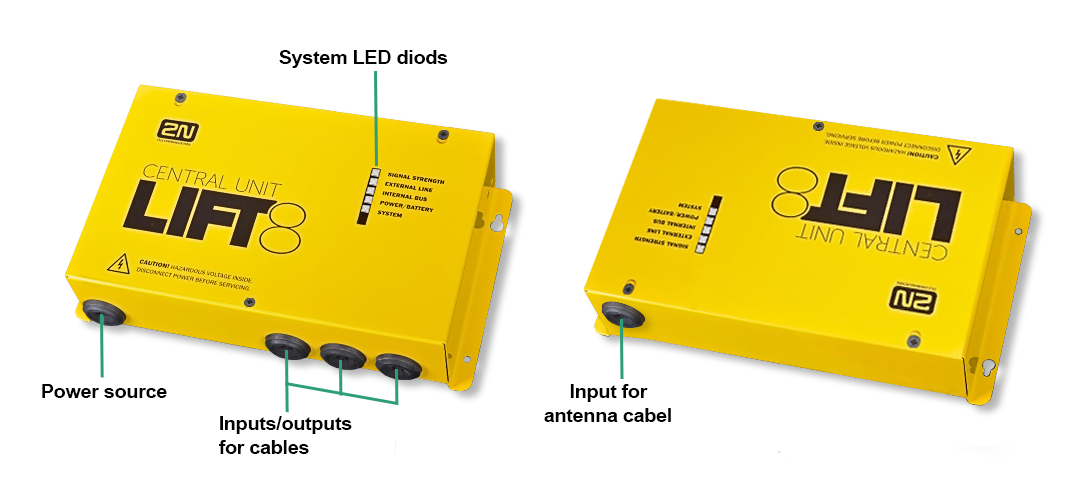

2N Lift8 – Central Unit

  • designed for the Elevator shaft communication and Evacuation modes

2N Lift8 – Central Unit


For connection of up to 8 elevators to a GSM/UMTS/PSTN line. Including a power EURO cable and rechargeable battery. USB interface for configuration.


918620E

2N Lift8 – Splitter

  • designed for the Elevator shaft communication and Evacuation modes

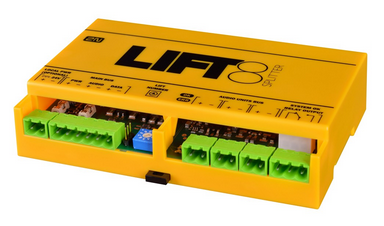

2N Lift8 – Splitter


For CU – elevator audio unit interconnection.


918610E

2N Lift8 – Audio Unit COP

(Normal version)

  • designed for the Elevator shaft communication mode

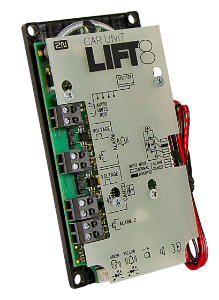

2N Lift8 – Audio Unit COP


Audio unit electronics for elevator cabin building in. Including speaker and microphone (HandsFree). Connection terminals for all prescribed elements and door opening signal input (optional).


918610EX

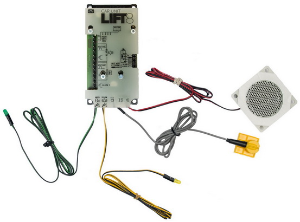

2N Lift8 – Audio Unit COP,  Cable version

Contains a LED, microphone and speaker connected to cables.

  • designed for the Elevator shaft communication mode

2N Lift8 – Audio Unit COP, Cable version


918611E

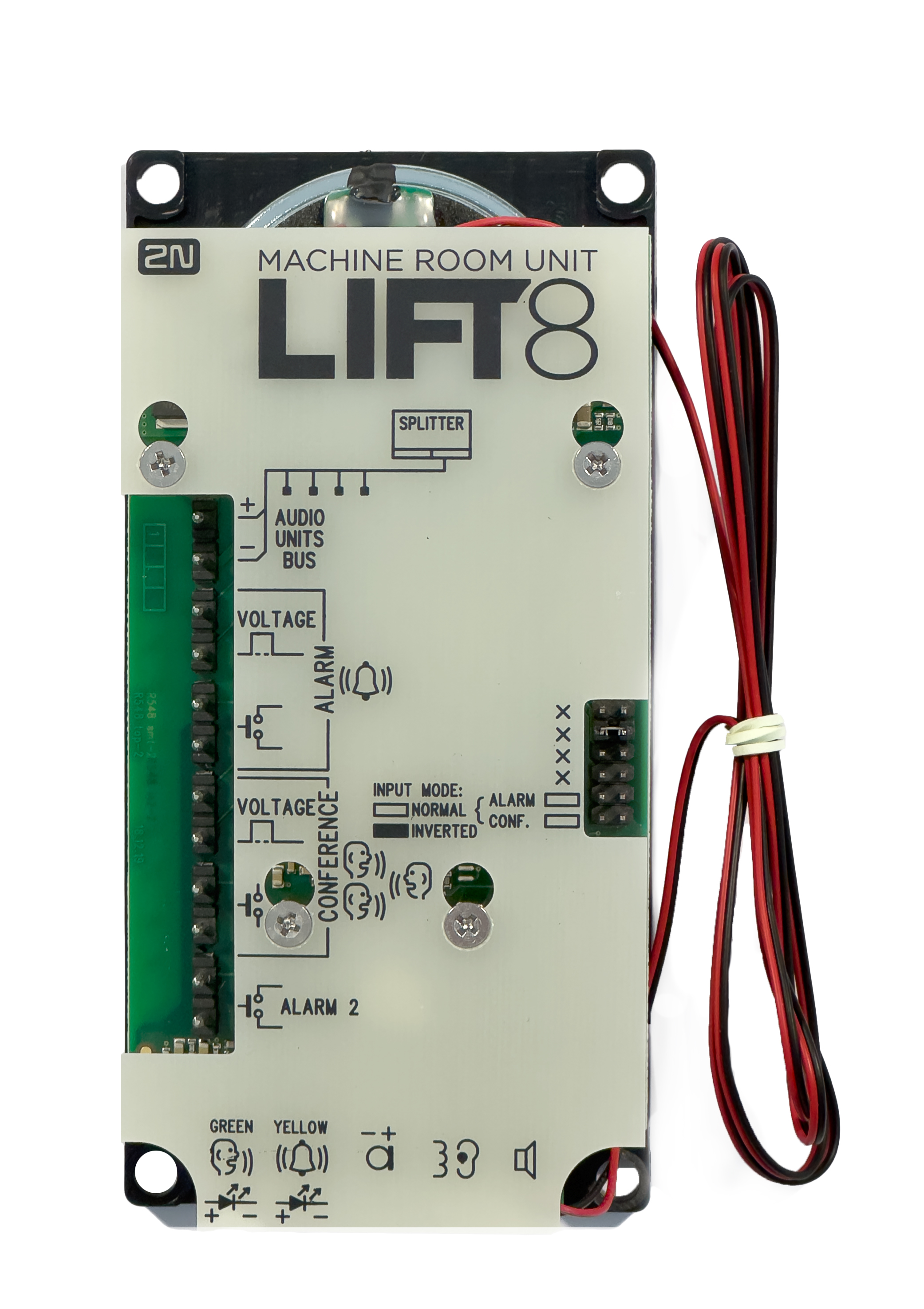

2N Lift8 – Audio Unit Machine Room

  • designed for the Elevator shaft communication mode

2N Lift8 – Audio Unit Machine Room


Audio unit for the machine room/control center. Contains a receiver (optional) and a keypad for easy control. Makes it possible to communicate with the other system audio units and configure the CU without a PC. Equipped with an external siren connector.  Can be shared by multiple elevators (shafts). Robust yellow cover.

918623E

2N Lift8 Audio Unit – Machine Room, PCB

  • Audio unit designed for machine room installation for one elevator shaft or the Intercom solution.
  • designed for the Elevator shaft communication mode

2N Lift8 Audio Unit – Machine Room, PCB



918612E

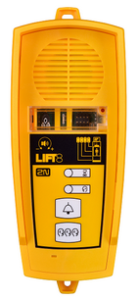

2N Lift8 – Audio Unit Shaft

  • designed for the Elevator shaft communication mode

2N Lift8 – Audio Unit Shaft

Audio unit for the cabin roof and shaft or cabin bottom. Robust yellow cover. HandsFree mode, ALARM button and Triphony, LED indicators. Not intended for use in the cabin.



918613E

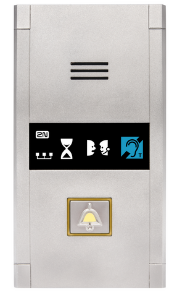

2N Lift8 – Audio Unit Compact, With button

  • designed for the Elevator shaft communication mode

2N Lift8 – Audio Unit Compact, With button


Robust, heavy-duty design. Standard-sized ALARM button including signage for the blind and backlit pictograms (hardened glass). Easy cabin wall mounting. Easy 2-wire connection.


918613WBE

2N Lift8 – Audio Unit Compact, Without button

  • designed for the Elevator shaft communication mode

2N Lift8 – Audio Unit Compact, Without button

Robust, heavy-duty design. Easy cabin wall mounting. Easy 2-wire connection.



918613BE

2N Lift8 – Audio Unit Flush, With button

  • designed for the Elevator shaft communication mode

2N Lift8 – Audio Unit Flush, With Button

Audio unit electronics for installation in an elevator cabin with a 1.5 mm stainless steel cover in the anti-vandal version. The stainless steel cover includes the required pictograms and instructions for operating the alarm button.



918613E

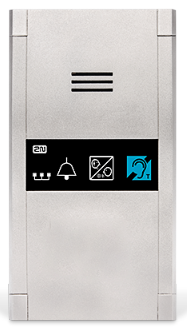

2N Lift8 – Audio Unit Flush, Without button

  • designed for the Elevator shaft communication mode

2N Lift8 – Audio Unit Flush, Without button

Audio unit electronics for installation in an elevator cabin with a 1.5 mm stainless steel cover in the anti-vandal version. The stainless steel cover includes the required pictograms.



918615E

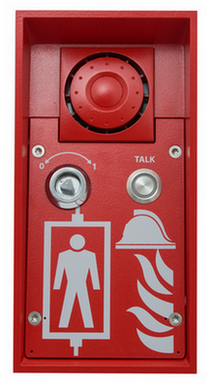

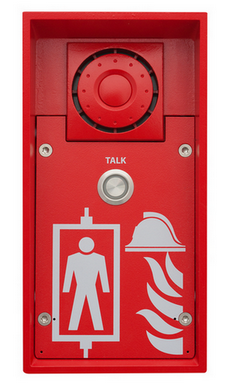

2N Lift8 – Audio Unit Fireman, Key (knob + 1 push-to-talk button)

  • designed for the Elevator shaft communication mode in fire elevators

2N Lift8 – Audio Unit Fireman, Key


Used for fire fighting operations. Activates top priority calls.


918619E

2N Lift8 – Audio Unit Fireman, PCB (knob + 1 push-to-talk button)

  • designed for the Elevator shaft communication mode in fire elevators

2N Lift8 – Audio Unit Fireman, PCB


Used for fire fighting operations. Activates top priority calls.



918617E

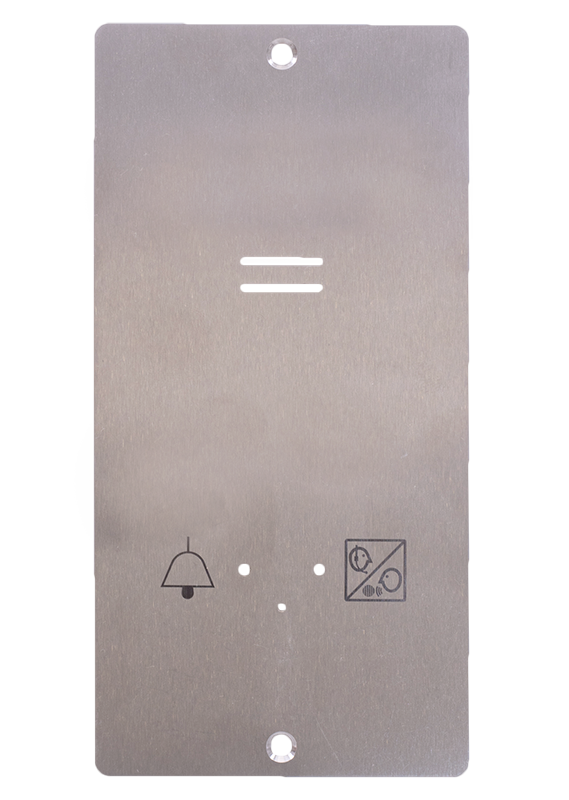

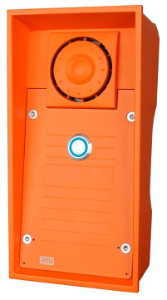

2N Lift8 – Audio Unit Shaft, Anti-vandal

  • designed for the Elevator shaft communication mode

2N Lift8 – Audio Unit Shaft, Anti-vandal

A robust, highly resistant audio unit designed for installation on elevator cabin roofs and shaft bottoms, under cabin floors and/or any other places that require communication, e.g. for elevator maintenance purposes. This unit is designed for outdoor applications too.


918619E2 – 2N Lift8 MEEF (Evac.), for flush mount

  • designed for the Elevator shaft communication mode


2N Lift8 – 2N Lift8 MEEF (Evac.), for flush mount

The evacuation audio unit for the MEEF (Main Elevator Evacuation Floor) is used for connection with the elevator cabin. Activates a call with the maximum priority.

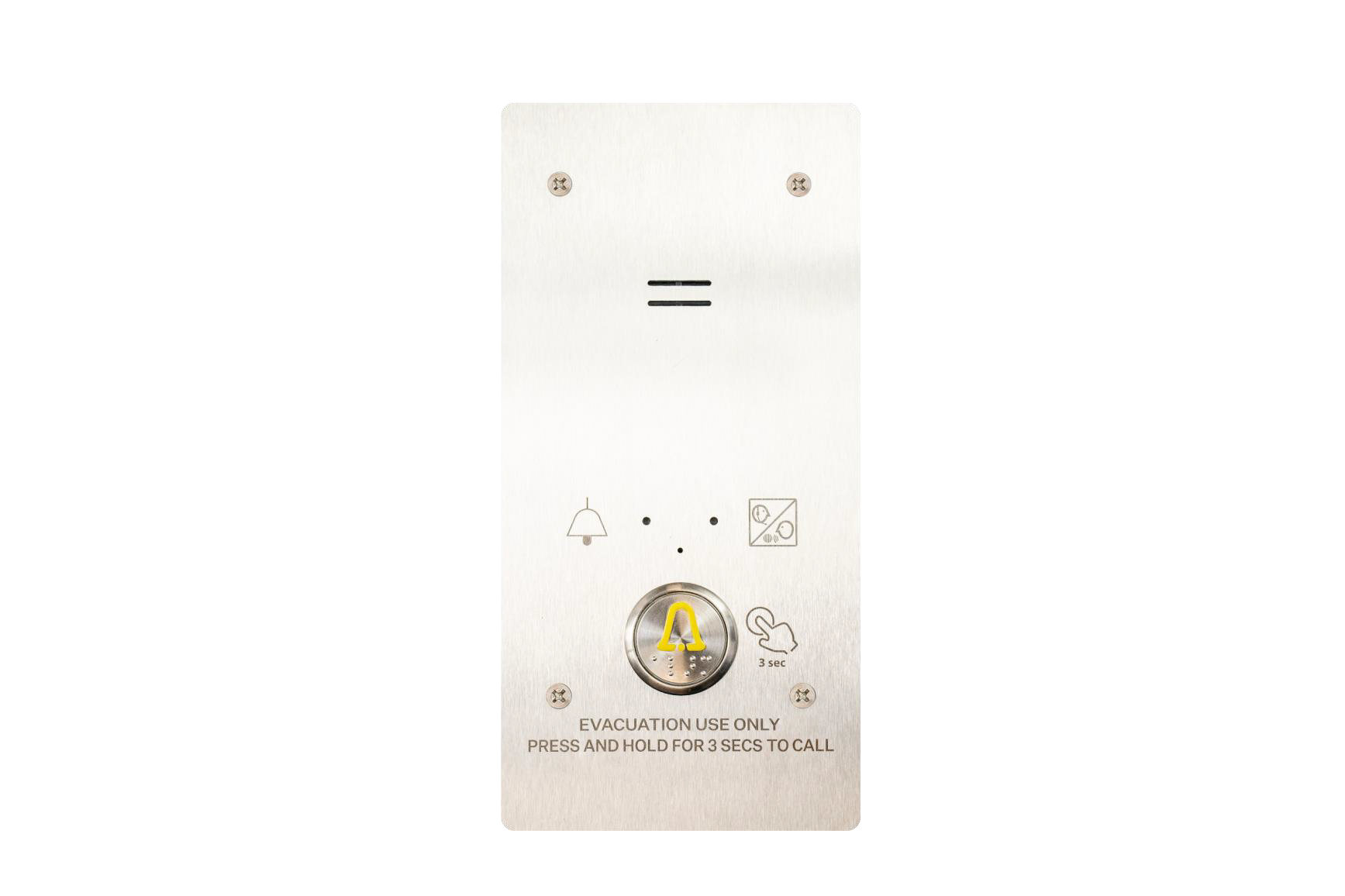

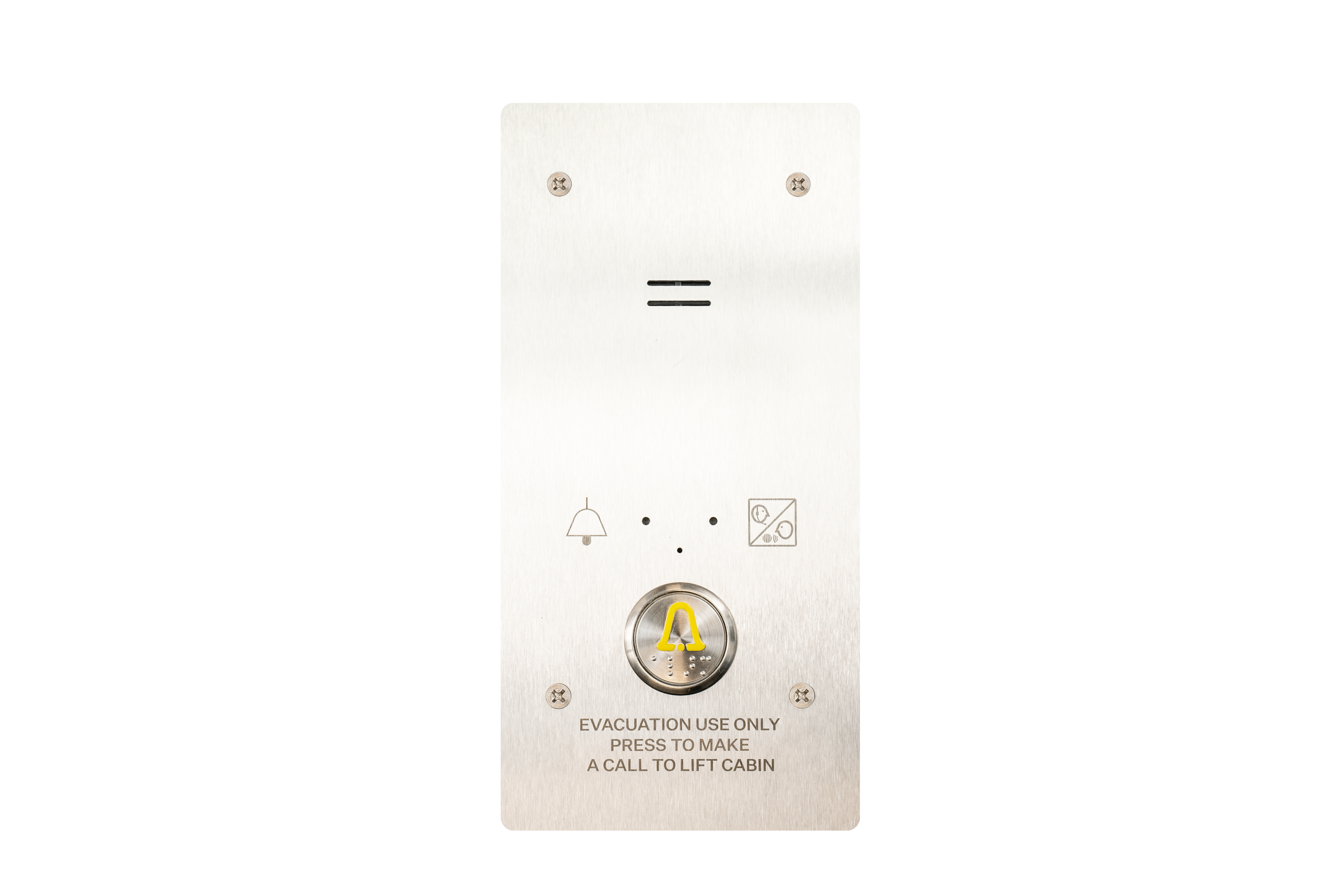

918618EE – 2N Lift8 Audio Unit, Landing (Evac.), for flush mounting

  • Evacuation audio unit – floors
  • designed for the Evacuation mode

The Landing (Evac.) evacuation audio unit is used for making calls from the elevator floors to the central control room.


918621E

2N Lift8 – I/O Module

  • designed for the Elevator shaft communication mode

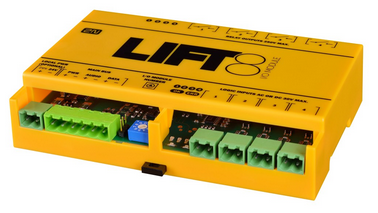

2N Lift8 – I/O Module


Contains logical inputs and switch relays.


918622E

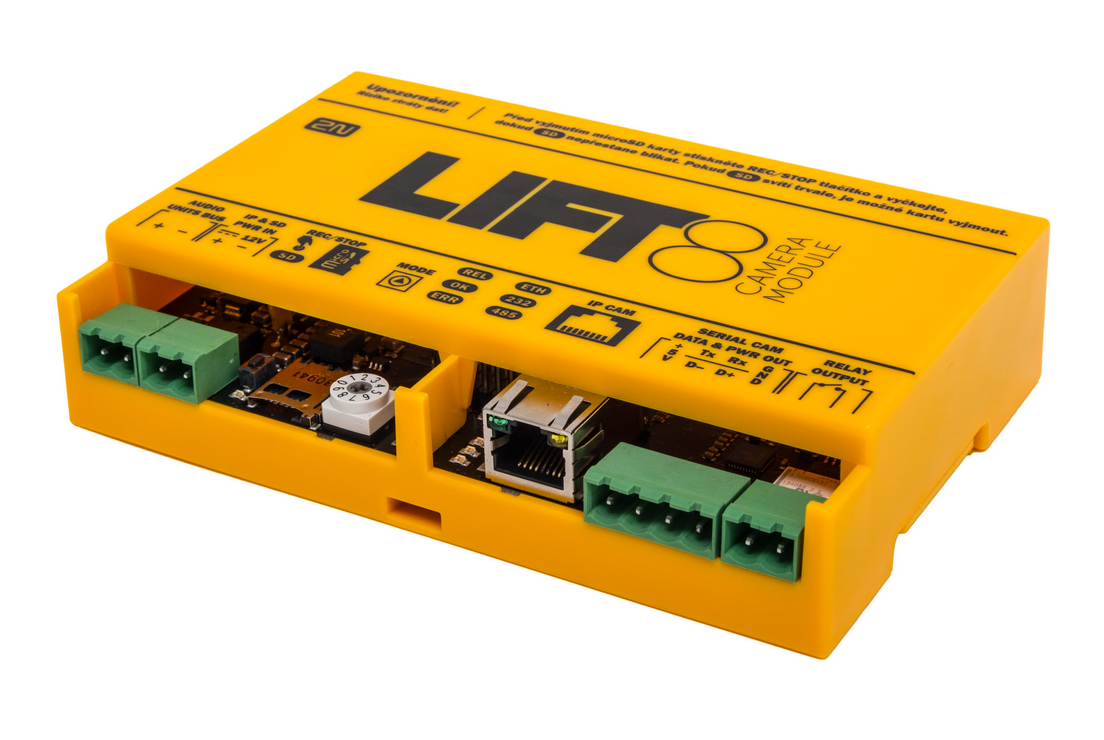

2N Lift8 – Camera Module

  • designed for the Elevator shaft communication mode

2N Lift8 – Camera Module


For camera connection (IP, RS232, RS485) to an elevator cabin. Every cabin in each shaft can contains a camera module (up to 8 camera modules in 2N Lift8).


918654E

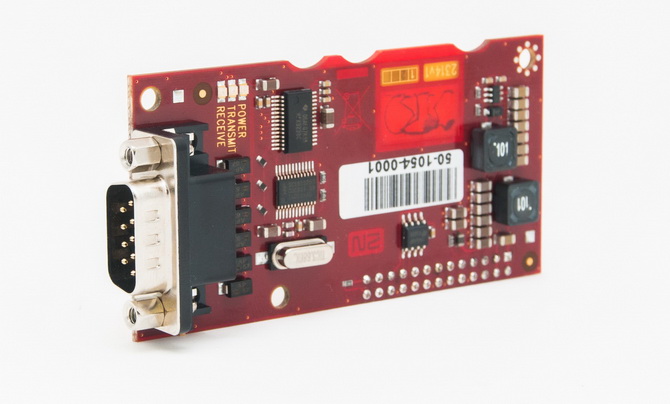

2N Lift8 – RS232 Module


2N Lift8 – RS232 Module


The RS232 module connects the 2N Lift8 system with the elevator control unit. The elevator control unit transmits a command via RS232 to the Central Unit for processing and executing.


918650E

2N Lift8 – GSM Module

  • designed for the Elevator shaft communication mode

2N Lift8 – GSM Module


For the Central Unit connection via a mobile network. Optional data connection for remote system configuration.


918651E

2N Lift8 – UMTS Module

  • designed for the Elevator shaft communication mode

2N Lift8 – UMTS Module


For Central Unit connection via a mobile network. Optional data connection for remote system configuration.


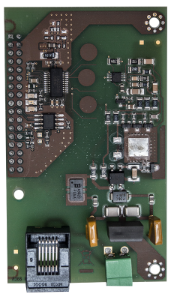

918652E 2N Lift8 – PSTN Module

  • designed for the Elevator shaft communication mode

2N Lift8 – PSTN Module


For the Central Unit connection via an analog line.


918653E

2N Lift8 – VoIP Module


2N Lift8 – VoIP Module

For the Central Unit connection via a VoIP line.


918658G

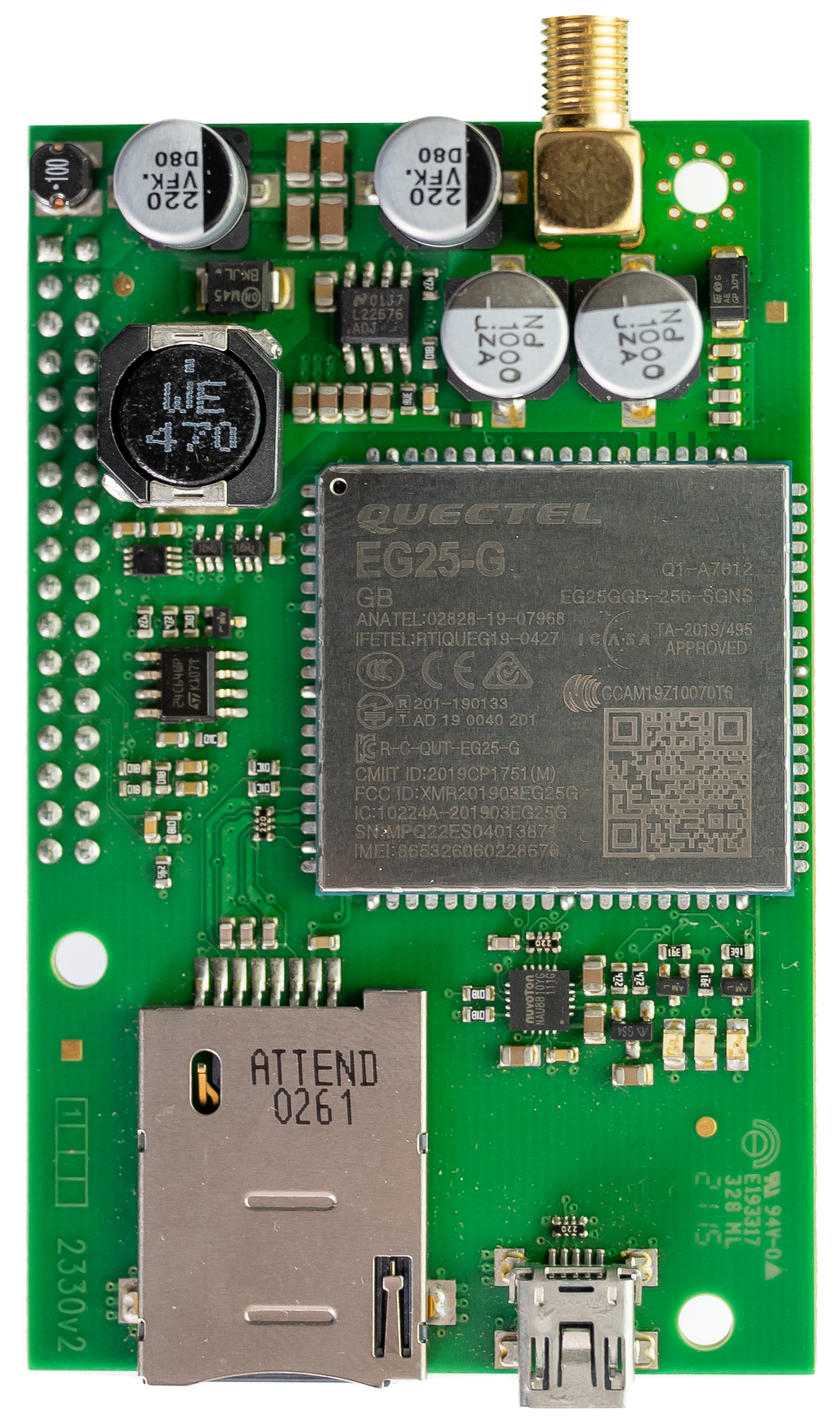

 2N Lift8 – LTE Module Global

  • LTE/UMTS/GSM module
  • designed for the Elevator shaft communication mode

2N Lift8 – LTE module global



22041579

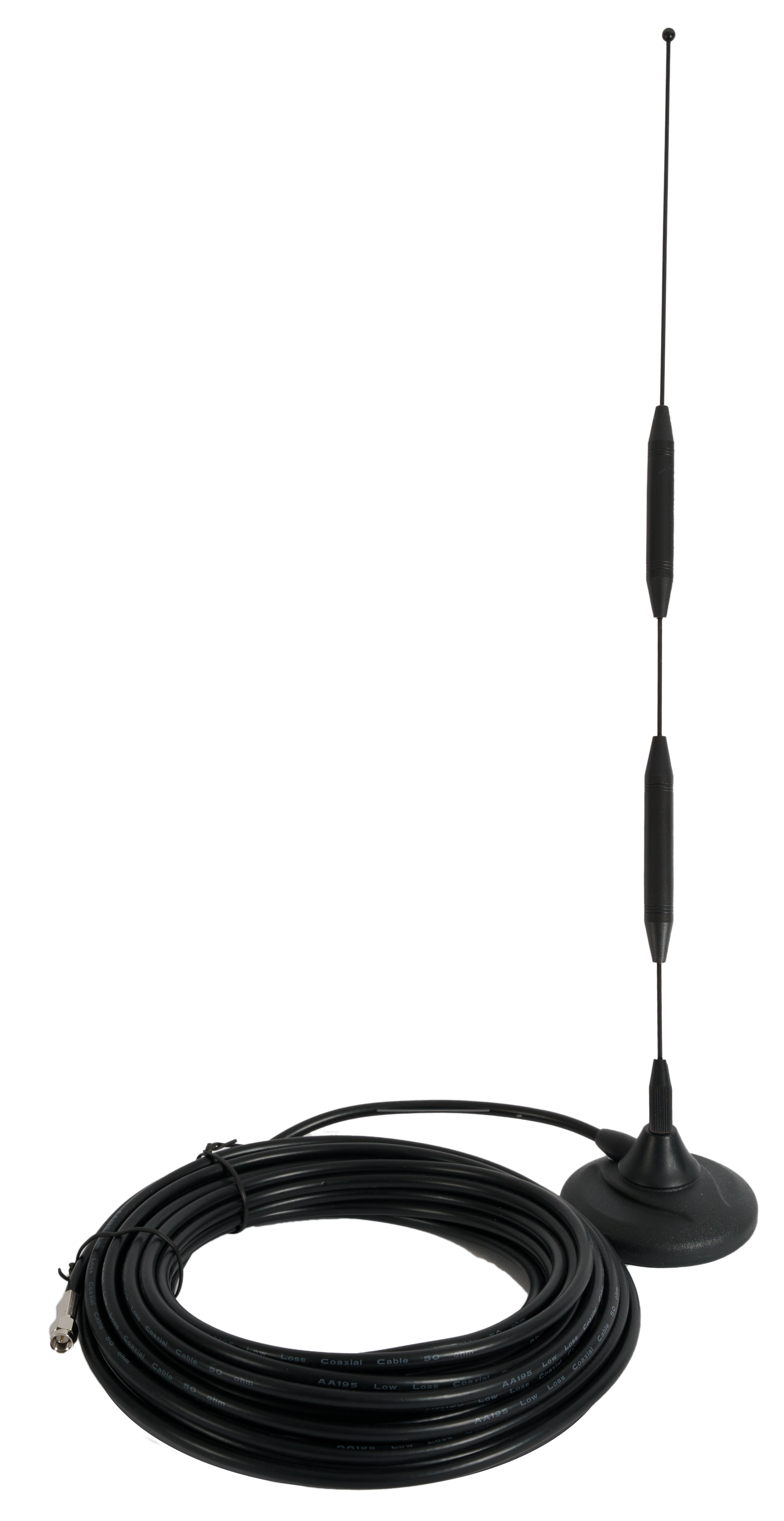

GSM/UMTS/LTE Antenna

  • 9 dB
  • cable length: 10 m
  • SMA connector
  • designed for the Elevator shaft communication mode

Cooperating 2N Applications

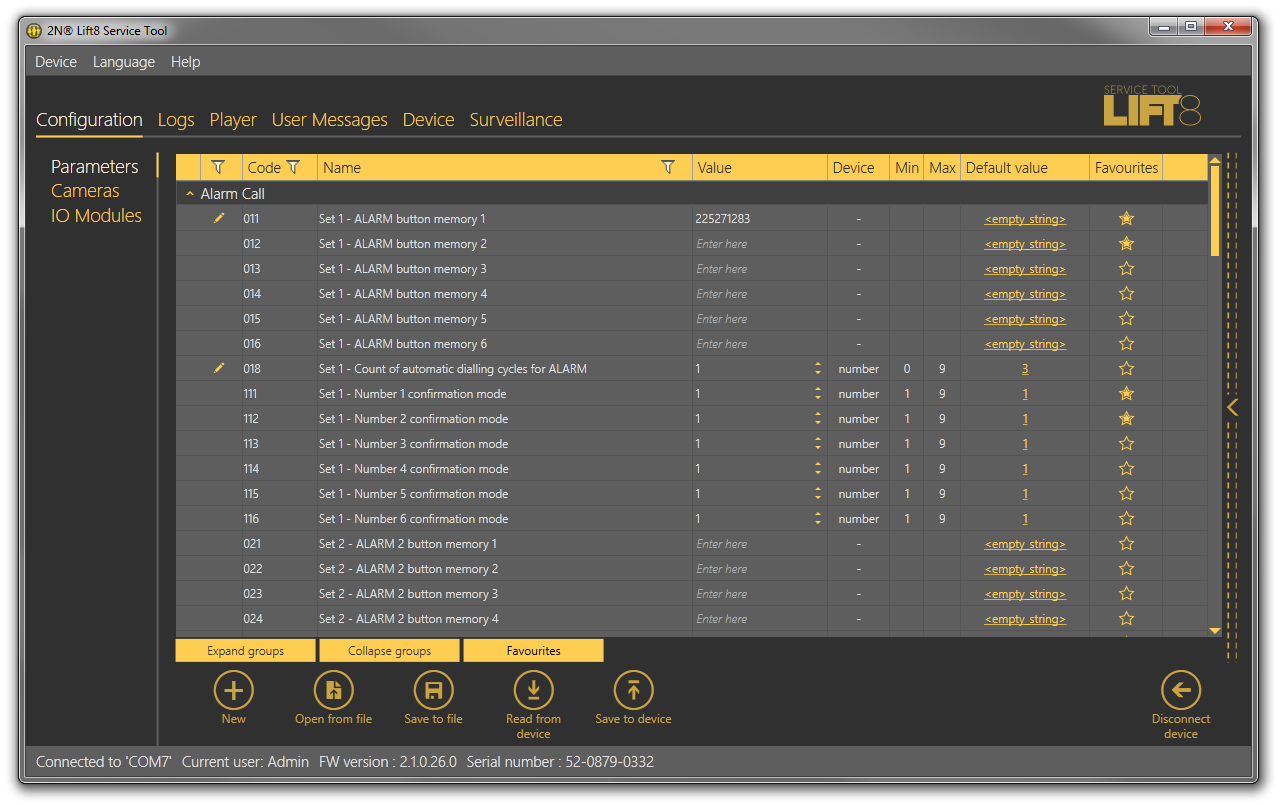

918700E 2N Lift8 Service Tool


2N Lift8 Service Tool


The 2N Lift8 Service Tool application is intended for remote supervision and configuration of the 2N Lift8 communicators.

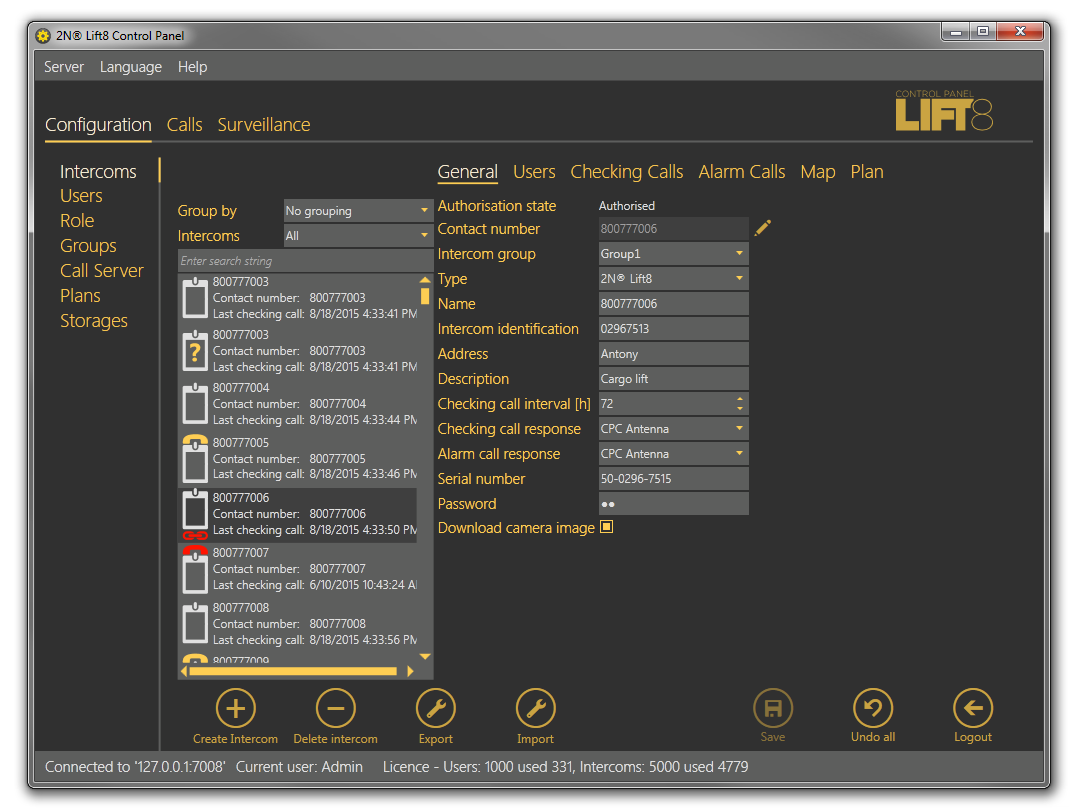

918700E 2N Lift8 Control Panel

  • designed for the Elevator shaft communication mode

2N Lift8 Control Panel


The 2N Lift8 Control Panel application is intended for administration of users, elevators and authorizations.

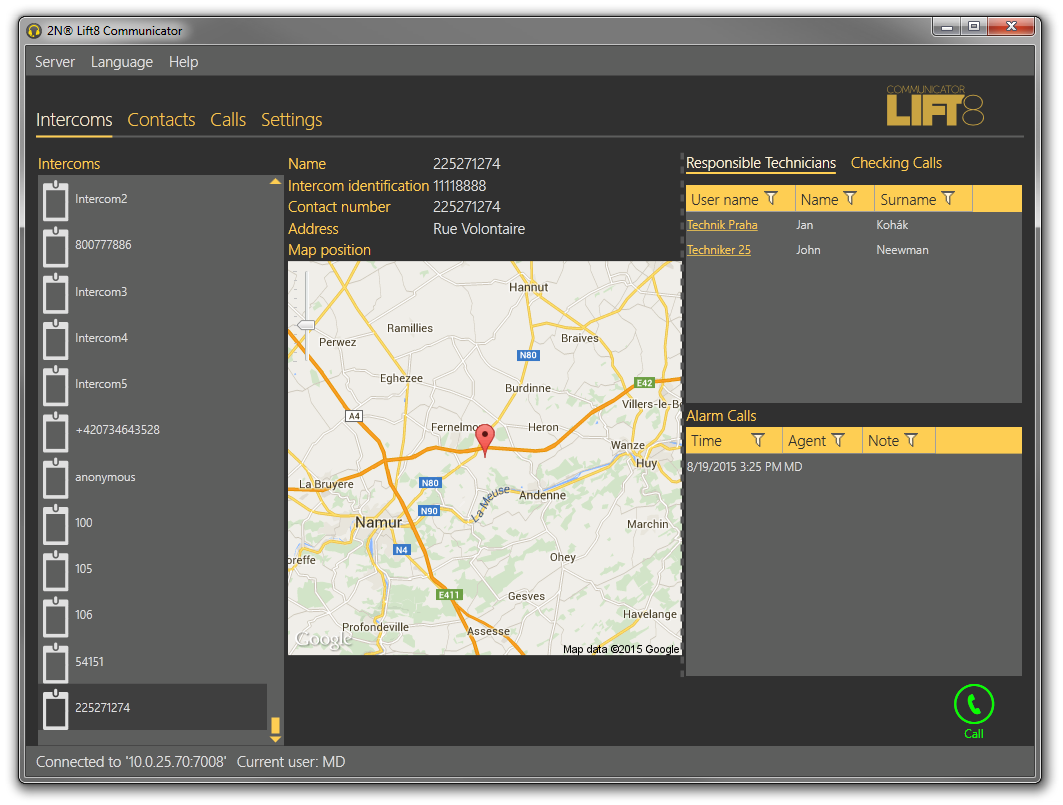

918700E 2N Lift8 Communicator

  • designed for the Elevator shaft communication mode

2N Lift8 Communicator


The 2N Lift8 Communicator application is intended for receiving alarm calls by the control room.


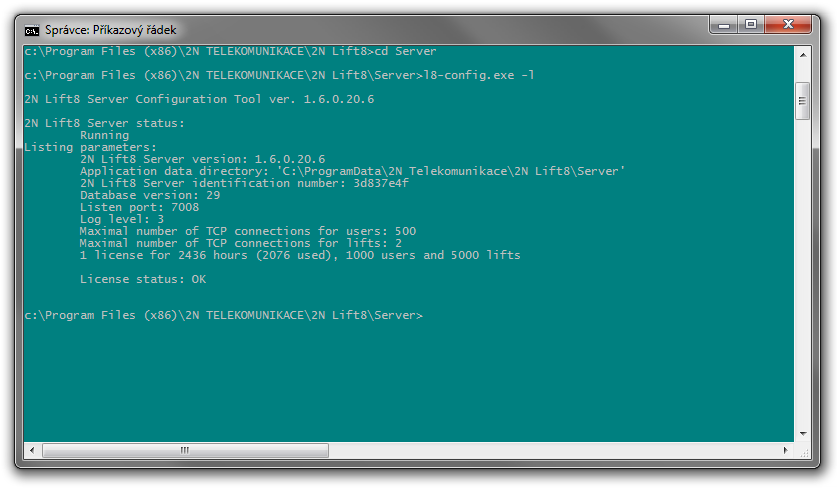

918700E 2N Lift8 Server


2N Lift8 Server


The 2N Lift8 Server application processes checking calls and mediates communication between the CUs and PC applications.

Associated 2N Products

918655E 2N Lift8 – External Pictogram Driver


2N Lift8 – External Pictogram Driver

Transforms the 2N Lift8 cabin LED outputs into universal pilot lamps.

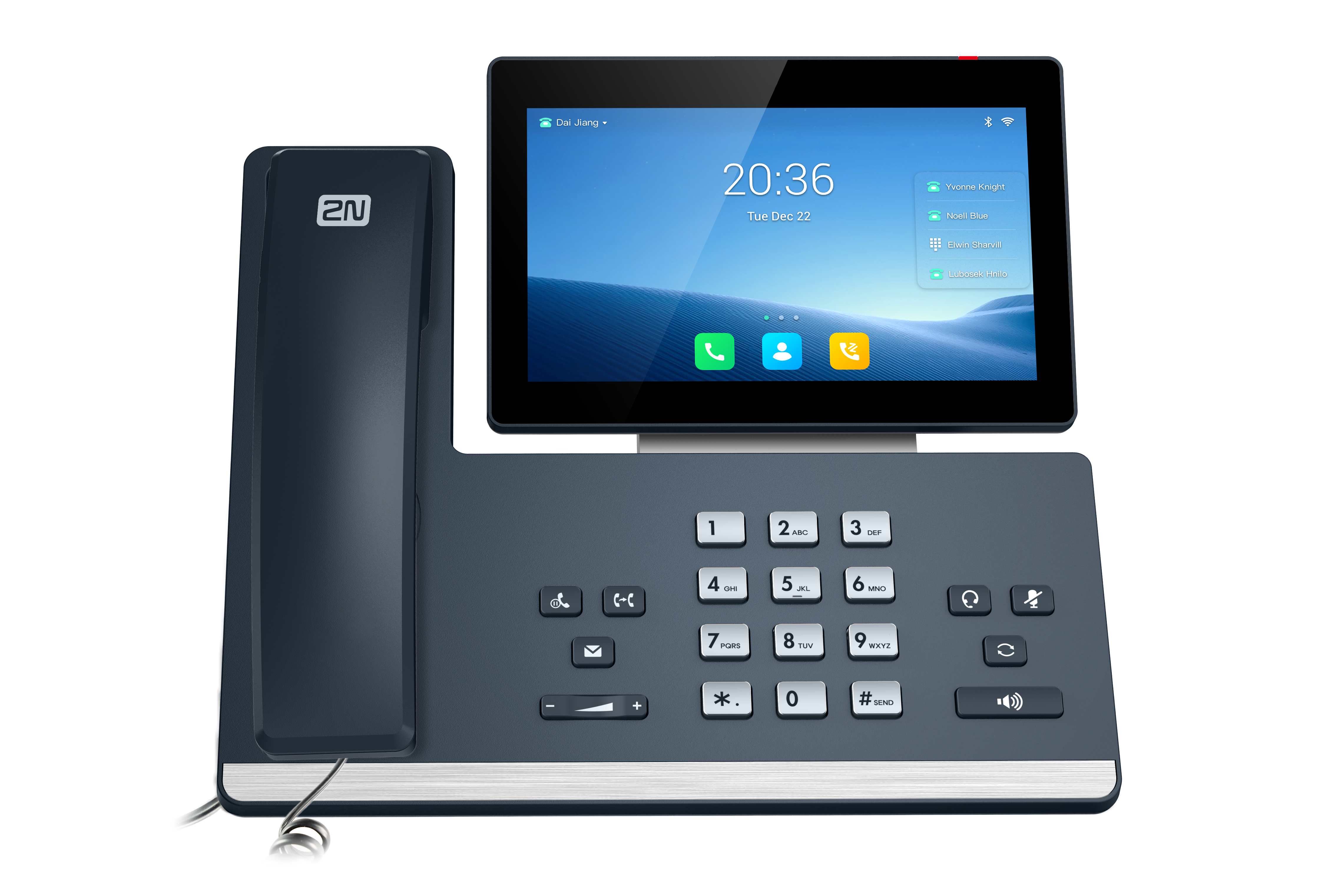

1120102 2N IP Phone D7A

  • designed for the Evacuation mode

  • easy operation
  • provides two-way communication with the persons at the audio units
  • HD video calls
