5. Intercom Configuration

Web Configuration Interface Login

The device is configured via a web configuration interface. You need to know the device IP address and domain name to get access. Make sure that the device is connected to the local IP network and properly powered.

Domain Name

Enter the domain name as hostname.local (e.g. 2NIPStyle-00000001.local) to connect to the device. The new device Hostname consists of the device name and serial number. See below for the device name formats in Hostname. The serial number is entered without hyphens. You can change Hostname in System > Network later.

2N Device	Device Name in Hostname
2N IP Verso	2NIPVerso
2N IP Verso 2.0	2NIPVerso20
2N LTE Verso	2NLTEVerso
2N IP Style	2NIPStyle
2N IP One	2NIPOne
2N IP Vario	2NIPVario
2N IP Base	2NIPBase
2N IP Force	2NIPForce
2N IP Safety	2NIPSafety
2N IP Solo	2NIPSolo
2N IP Uni	2NIPUni

Login based on a domain name is advantageous if the dynamic IP address is used. While the dynamic IP address changes, the domain name remains the same. It is possible to generate certificates signed by a trusted certification authority for the domain name.

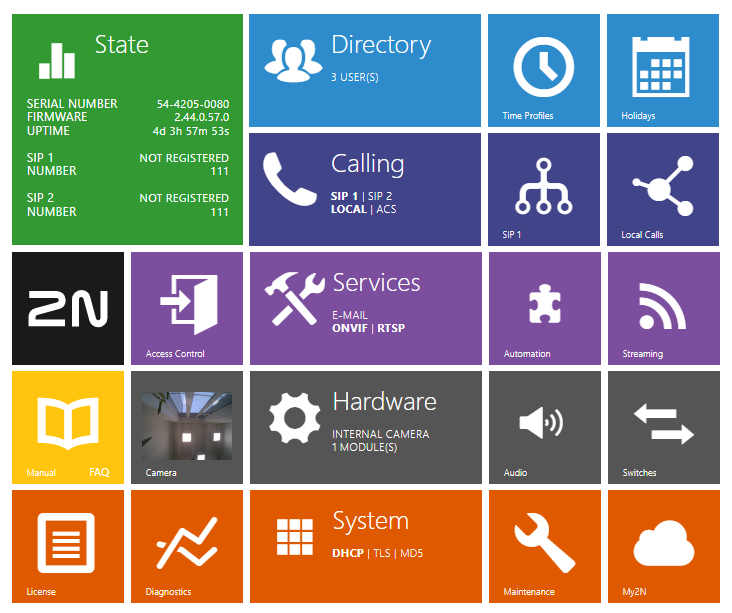

Start Screen

The start screen is an introductory overview screen displayed upon login to the intercom web interface. Use the back arrow in the left-hand upper corner of the following web interface pages to return to this screen anytime.

The screen header includes the intercom name (refer to the Display Name parameter in the Services / Phone / SIP menu). Use the menu in the right-hand upper corner of the web interface for selecting the language. Click Log out in the right-hand upper corner of the screen to log out from the device, press the question mark icon to display Help or use the bubble to provide feedback.

The start screen is also the first menu level and quick navigation (click on a tile) to selected intercom configuration sections. Some tiles also display the state of selected services.

Configuration Menu

The 2N IP intercom configuration includes 5 main menus: State, Directory, Hardware, Services and System including submenus; see below.

Status

Device – essentials on the intercom
Services – information on active services and their states
License – current states of licenses and available intercom functions
Access Log – last 10 access logs
Call Logs – last 20 accomplished calls
Events – last 500 events recorded by the device

Calling

General Settings – incoming and outgoing call settings
Dialing – quick dial button settings
SIP 1 – SIP terminal settings
SIP 2 – SIP terminal settings
Local Calls – settings of local calls including connections, video and audio parameters
Crestron – Crestron connection settings

Services

Access Control – arrival/departure rule settings
Streaming – audio/video streaming settings (ONVIF, RTSP, Multicast, etc.)
E-Mail – E-mail sending and SMTP connection settings
Automation – flexible intercom settings according to user requirements
HTTP API – HTTP API authorisation settings
User Sounds – user sound settings and upload
Web Server – web server and access password settings
Audio Test – automatic audio test settings
SNMP – SNMP settings

Hardware

Switches – electric lock, lighting, etc. settings
Audio – audio, signalling, etc. volume control, microphone parameters
Camera – internal camera, external IP camera settings
Keypad – button and keypad settings
Backlight – backlight intensity setting
Display – basic display settings
Card Reader – card reader, Wiegand interface settings
Digital Inputs – digitial input settings
Extenders – 2N^® IP Verso extender settings
Lift Control – floor lift access settings

System

Network – LAN connection settings, 802.1x, packet capturing
Date and Time – real time and time zone settings
Features – test function settings
License – license settings, trial license activation
Certificates – certificate and private key settings
Auto Provisioning – automatic firmware and configuration update settings
Syslog – syslog message sending settings
Maintenance – backup and configuration reset, firmware update

Caution

Warning

In order to ensure the full functionality and guaranteed performance, we strongly recommend that the topicality of the product / device version in use be verified as early as in the installation process. The customer hereby acknowledges that the product / device can achieve the guaranteed performance and full functionality pursuant to the manufacturer’s instructions only if the latest product / device version is used after having been tested for full interoperability and not having been determined by the manufacturer as incompatible with certain versions of other products, and only in conformity with the manufacturer’s instructions, guidelines or recommendations and in conjunction with suitable products and devices of other suppliers. The latest versions are available at https://www.2n.com/cs_CZ/ or can be updated via the configuration interface if the devices are adequately technically equipped. Should the customer use a product / device version other than the latest one or a version determined by the manufacturer as incompatible with certain versions of other products, or should the customer use the product / device in contradiction to the manufacturer’s instructions, guidelines or recommendations or in conjunction with unsuitable products / devices of other suppliers, the customer is aware of and agrees with all functionality limitations of such a product / device if any as well as with all consequences incurred as a result thereof. Using a product / device version other than the latest one or a version determined by the manufacturer as incompatible with certain versions of other products, or using the product / device in contradiction to the manufacturer’s instructions, guidelines or recommendations or in conjunction with unsuitable products / devices of other suppliers, the customer agrees that the 2N TELEKOMUNIKACE a.s. company shall not be held liable for any functionality limitation of such a product or any damage, loss or injury related to this potential functionality limitation.
