1.1 Components and Associated Products

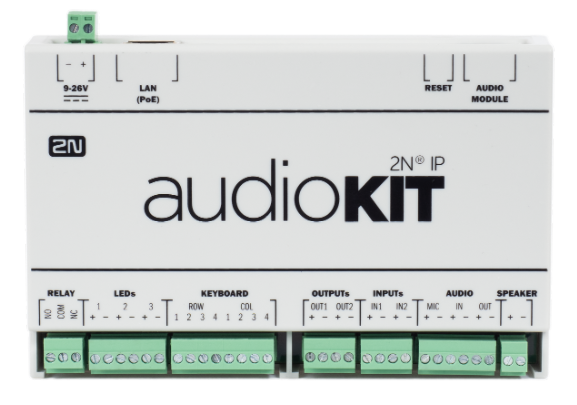

Basic Units


2N Part No. 9154100

Axis Part No. 01526-001

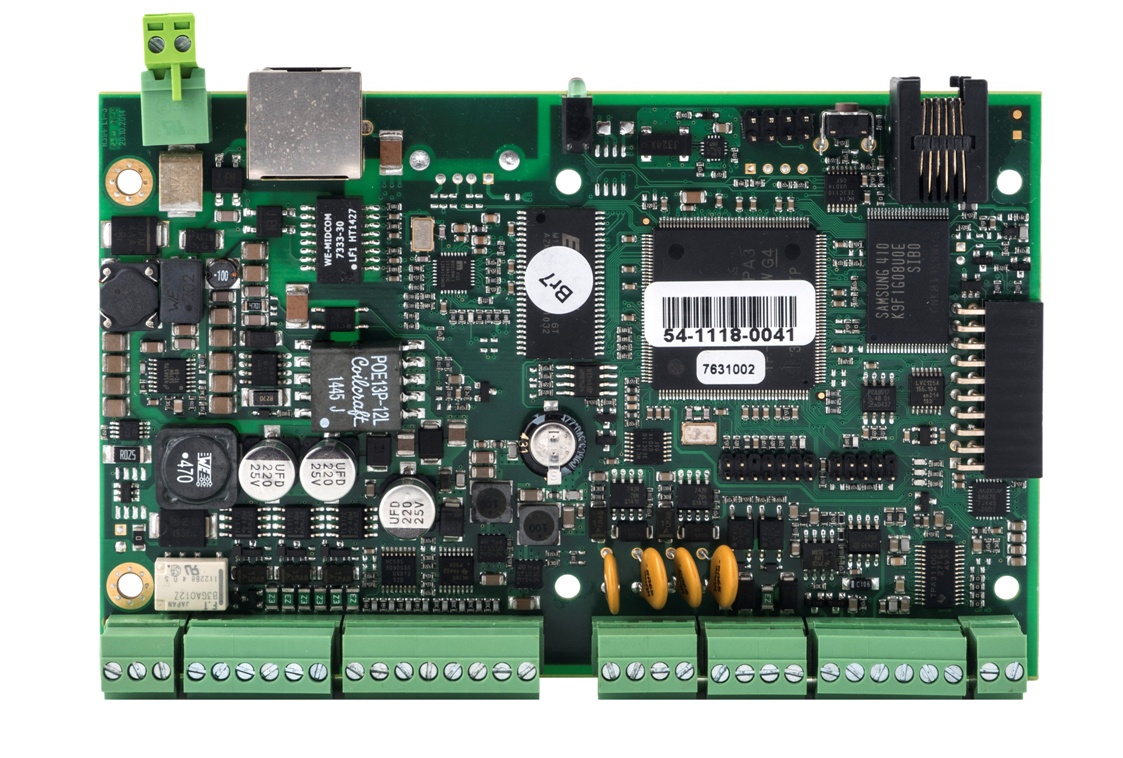

  • Intercom module in plastic box


Part No. 9154101

  • Intercom module without box


Part No. 9154102

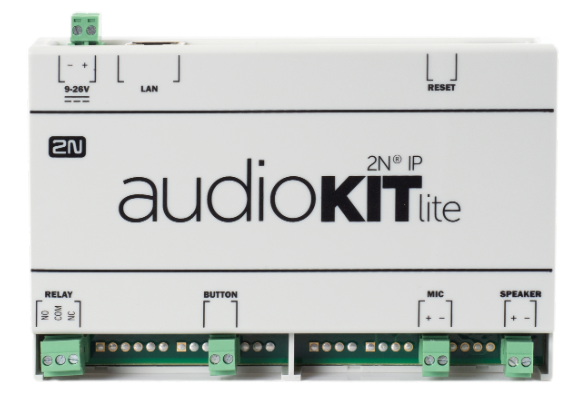

  • Lite intercom module in plastic box

2N Internal Units and Accessories


Part numbers:

2N Part No. 91378375

Axis Part No. 01668-001

2N Part No. 91378376

Axis Part No. 01670-001

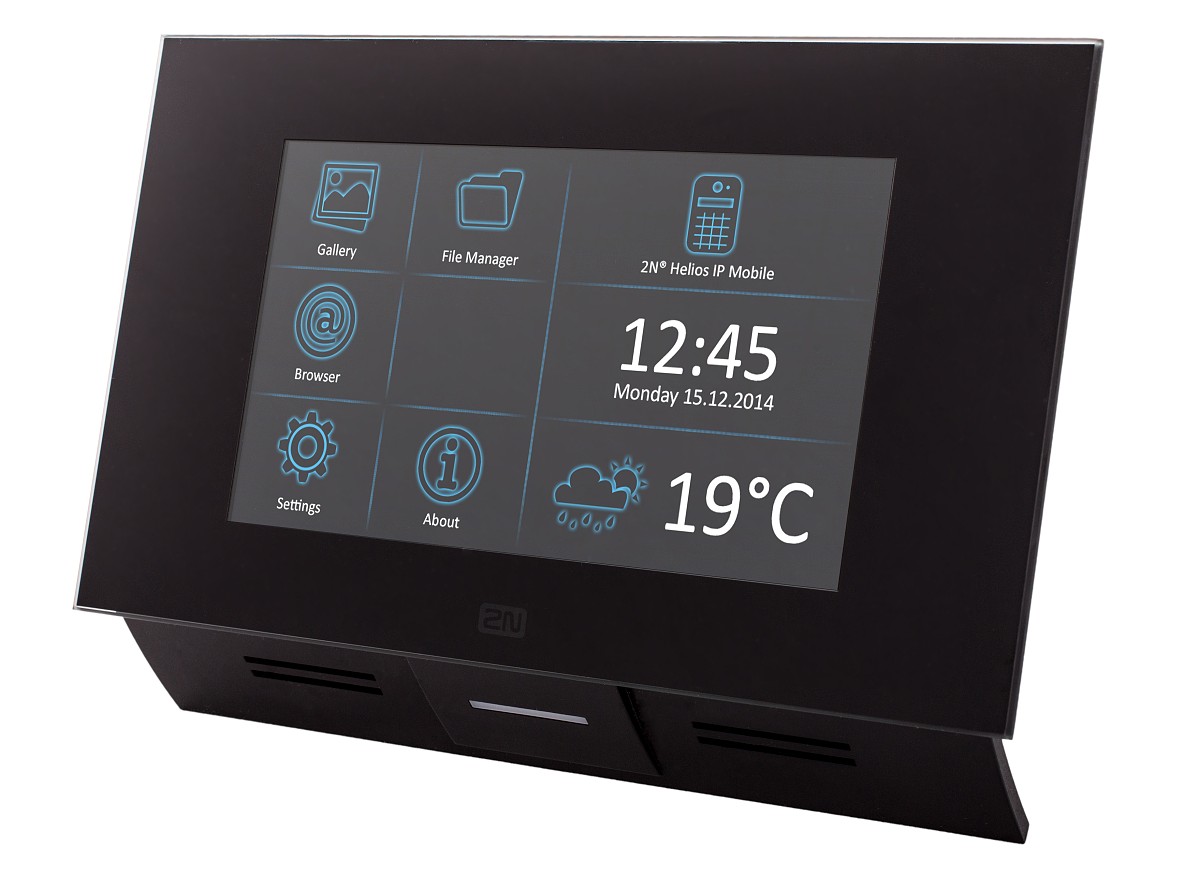

  • 2N® Indoor Touch 2.0 – black
  • WiFi (second Part no.)


  • The elegant internal touch panel, 2N® Indoor Touch 2.0, is suitable for all 2N IP intercoms. On the panel’s display not only can you find out who is at the door, but also start a conversation with the visitor, open the lock or turn on the light in the entrance hall.

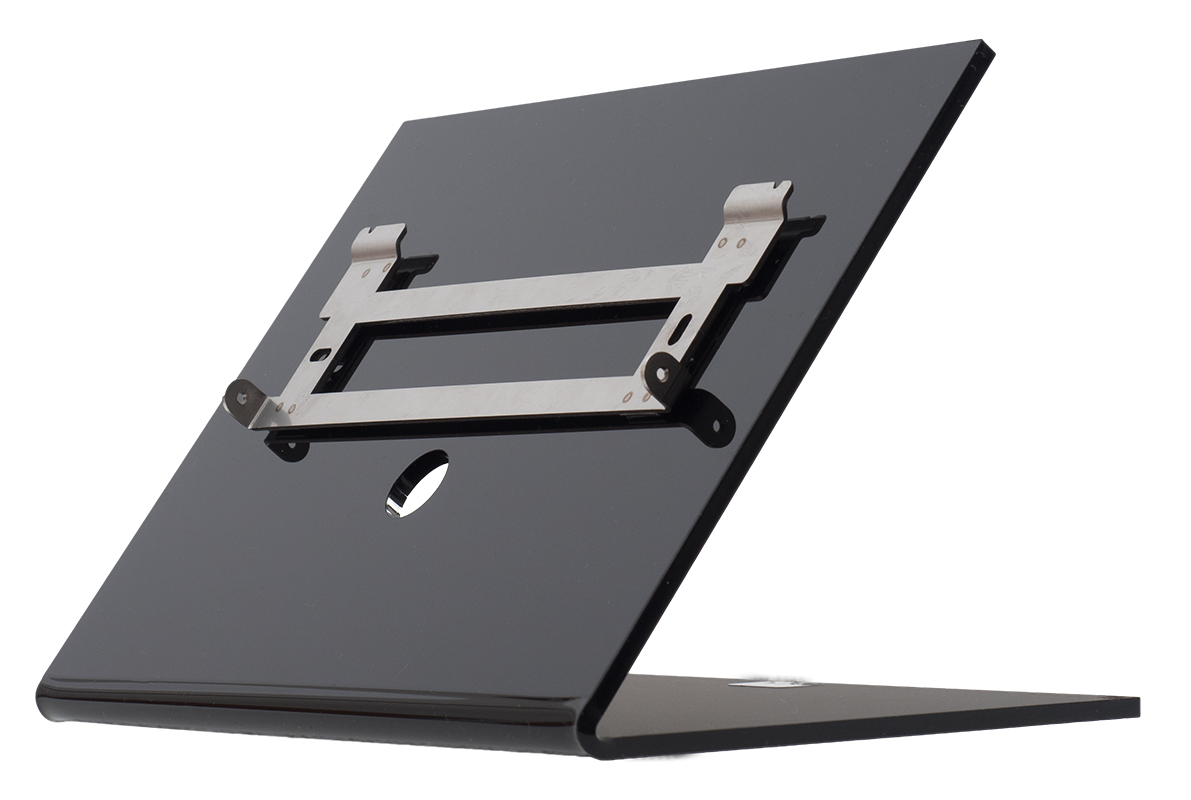

2N Part No. 91378382

Axis Part No. 01425-001

  • 2N® Indoor Touch desk stand black


Part numbers:

2N Part No. 91378375WH

Axis Part No. 01669-001

2N Part No. 91378376WH

Axis Part No. 01671-001

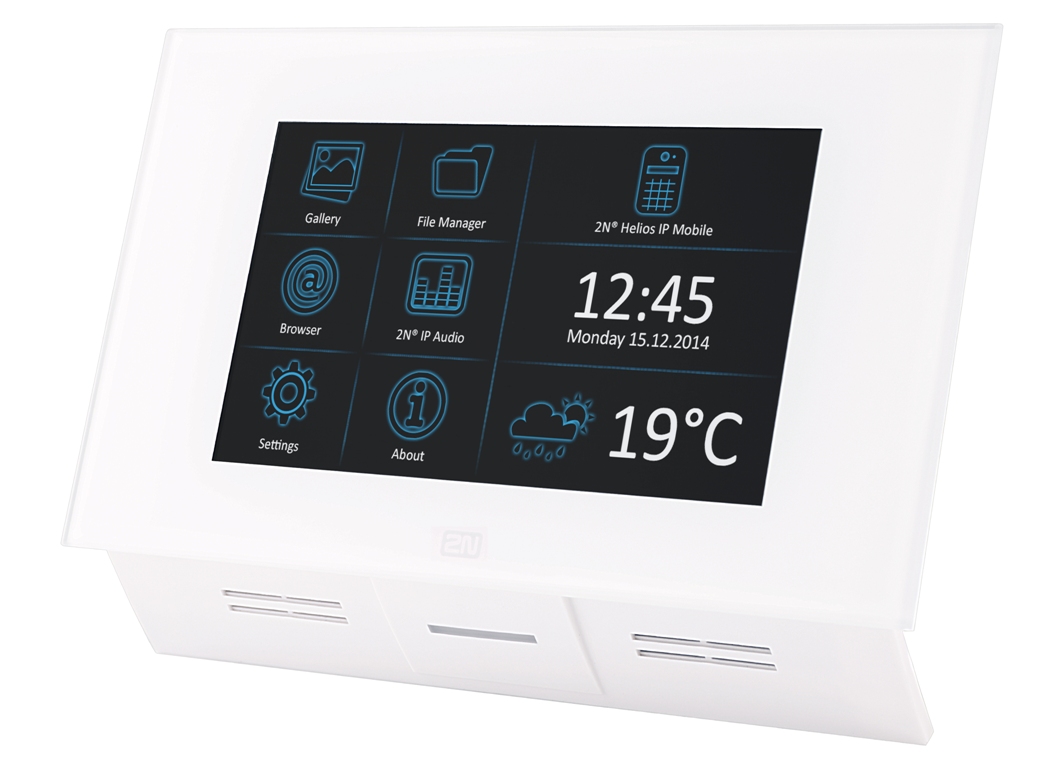

  • 2N® Indoor Touch 2.0 – white
  • WiFi (second Part no.)
  • The elegant internal touch panel, 2N® Indoor Touch 2.0, is suitable for all 2N IP intercoms. On the panel’s display not only can you find out who is at the door, but also start a conversation with the visitor, open the lock or turn on the light in the entrance hall.

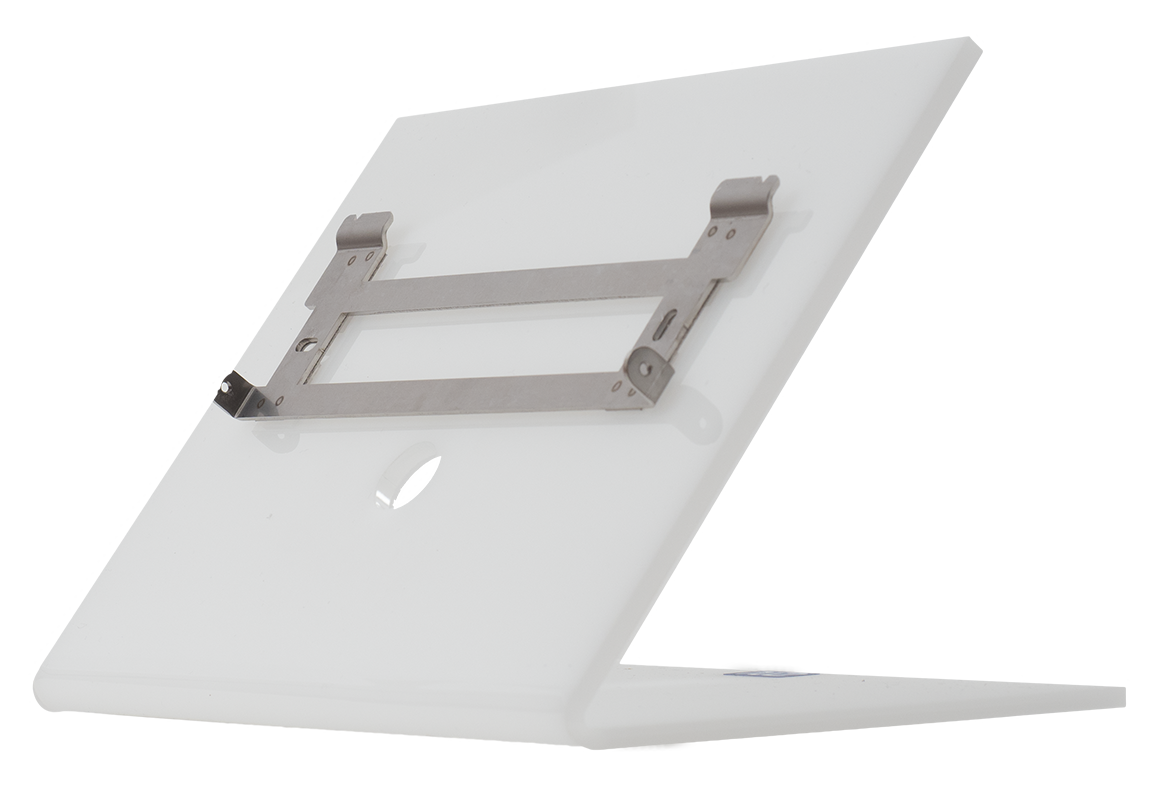

2N Part No. 91378382W

Axis Part No. 01426-001

  • 2N® Indoor Touch desk stand white

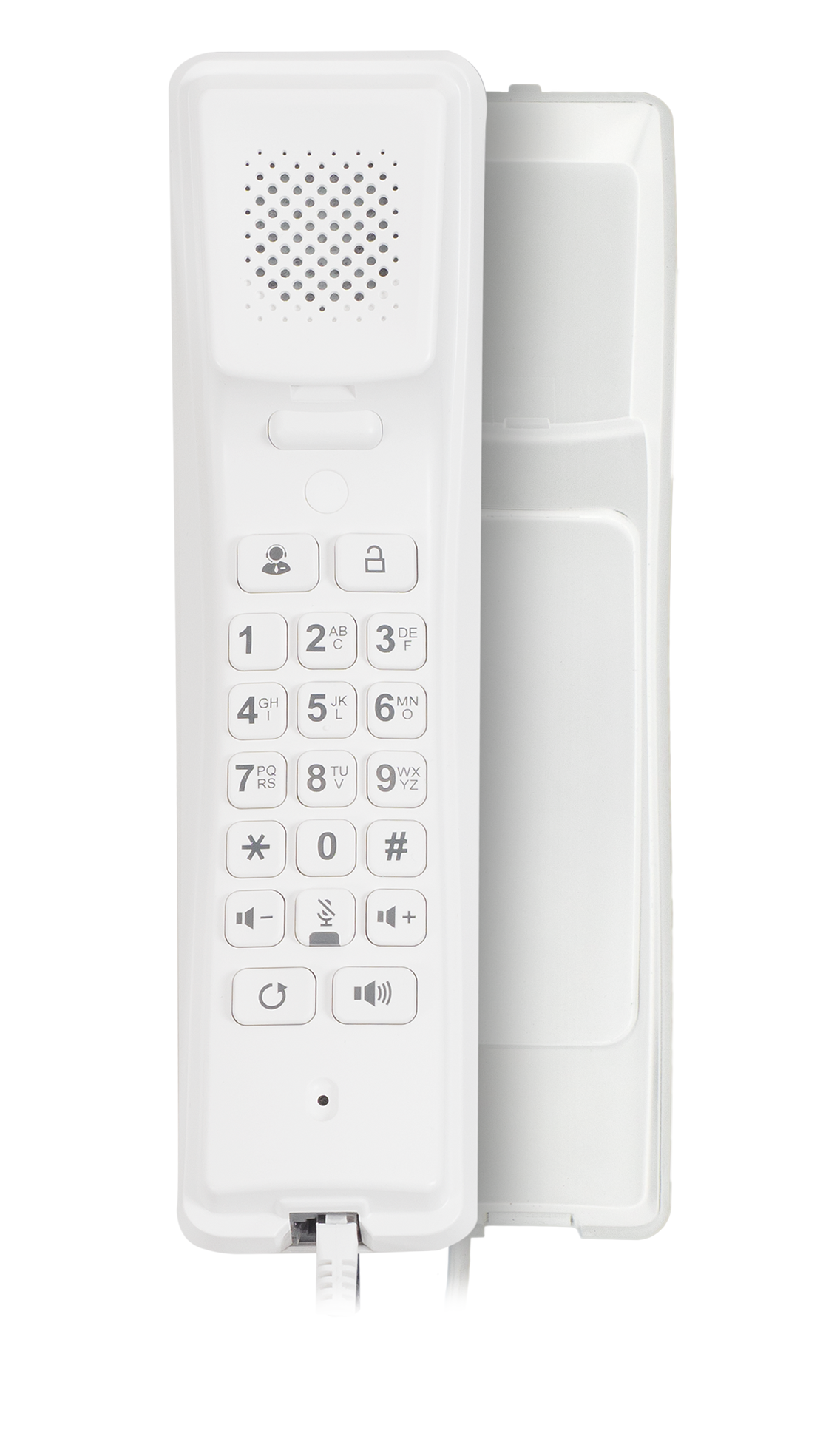

2N Part No. 1120101W

Axis Part No. 02518-001

  • 2N® IP Handset
  • answering unit
  • white color

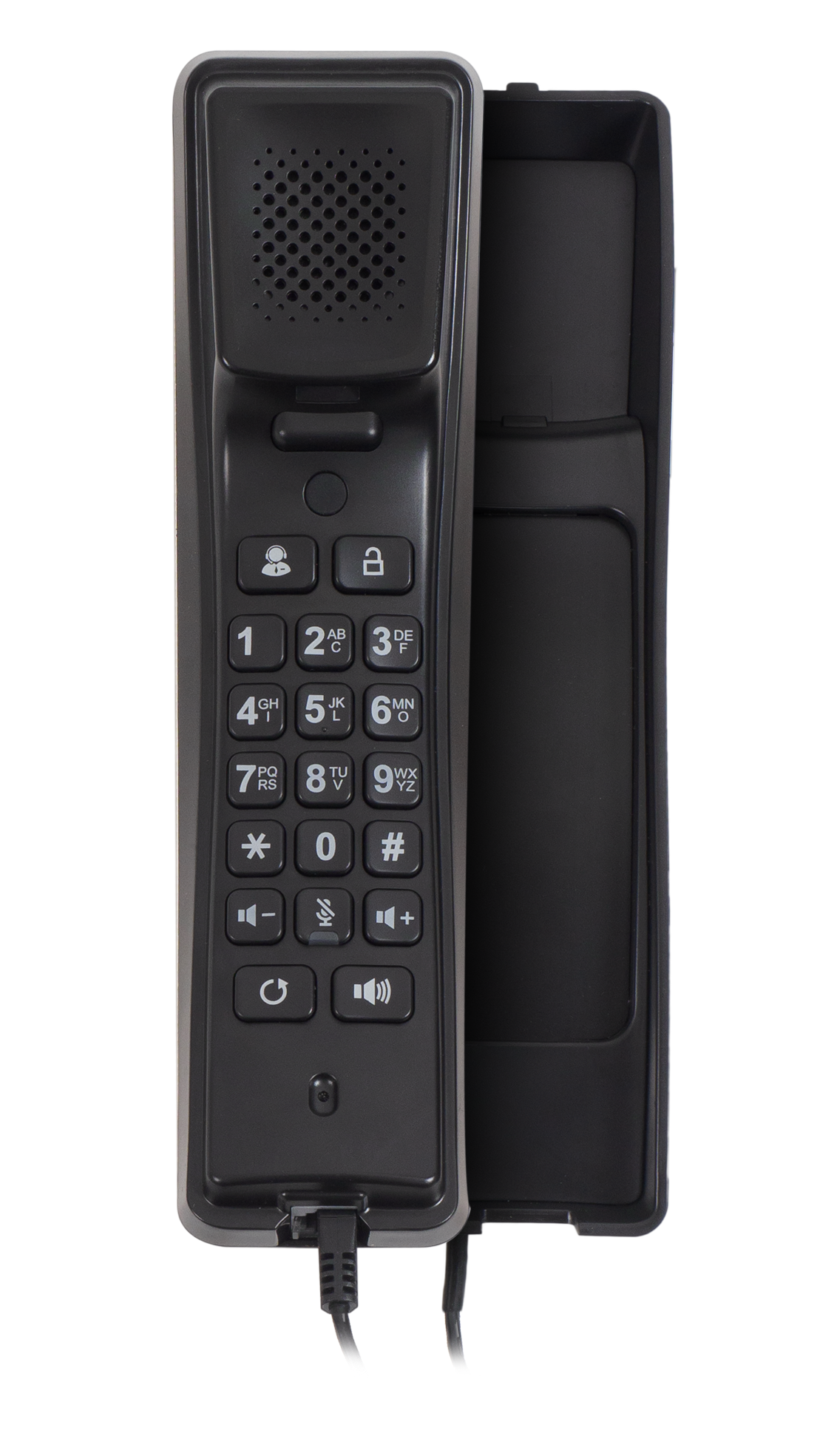

2N Part No. 1120101B

Axis Part No. 02519-001



  • 2N® IP Handset
  • answering unit
  • black color

IP Telephones


2N Part No. 1120102

Axis Part No. 02660-001

  • 2N® IP Phone D7A
  • simple operation
  • HD quality video calls
  • A display-equipped extender EXP50 (Part No. 91378363) can be added to the phone delivery to make up to 60 speed dialings.


2N Part No. 1120111EU

Axis Part No. 02544-001

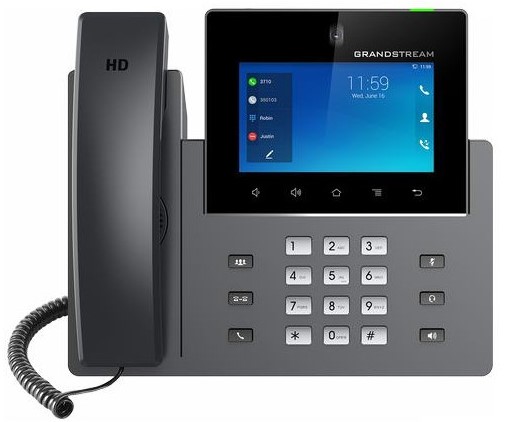

  • Grandstream GXV3350 IP video phone
  • Android 7.0 OS
  • 5” touch display control
  • HD quality video calls
  • WiFi and Bluetooth support
  • HDMI output and pan tilt zoom camera
  • Easy integration with intercoms or PBXs via SIP

Electric Locks

  • These products have been removed from sale.

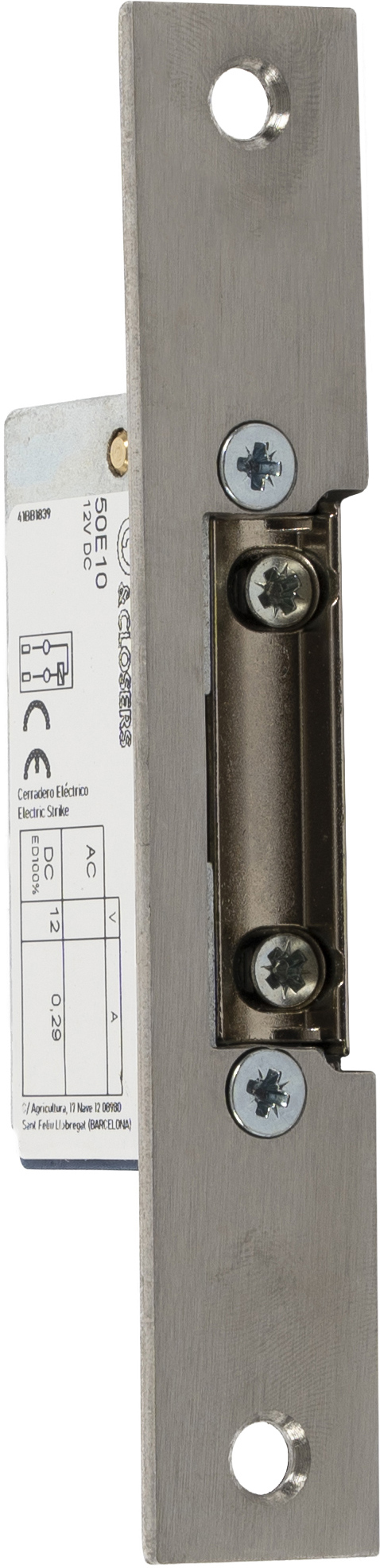

Part No. 11202101

  • Mini electronic doorstrike series 5
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • short sheet metal front cover version (130 mm)
  • 16 mm width

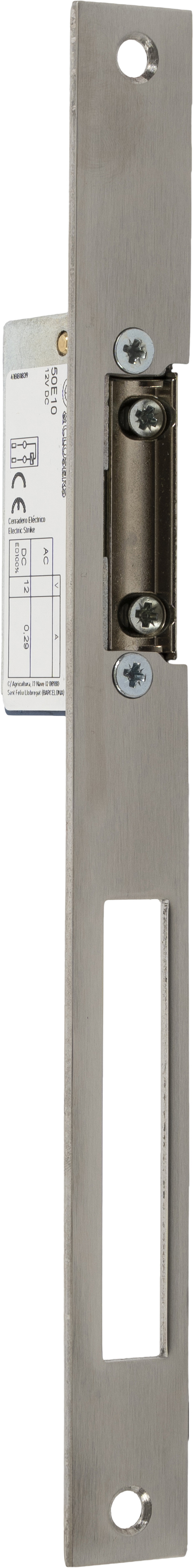

Part No. 11202101-L

  • Mini electronic doorstrike series 5, long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • long sheet metal front cover version (250 mm)
  • 16 mm width

Part No. 11202102

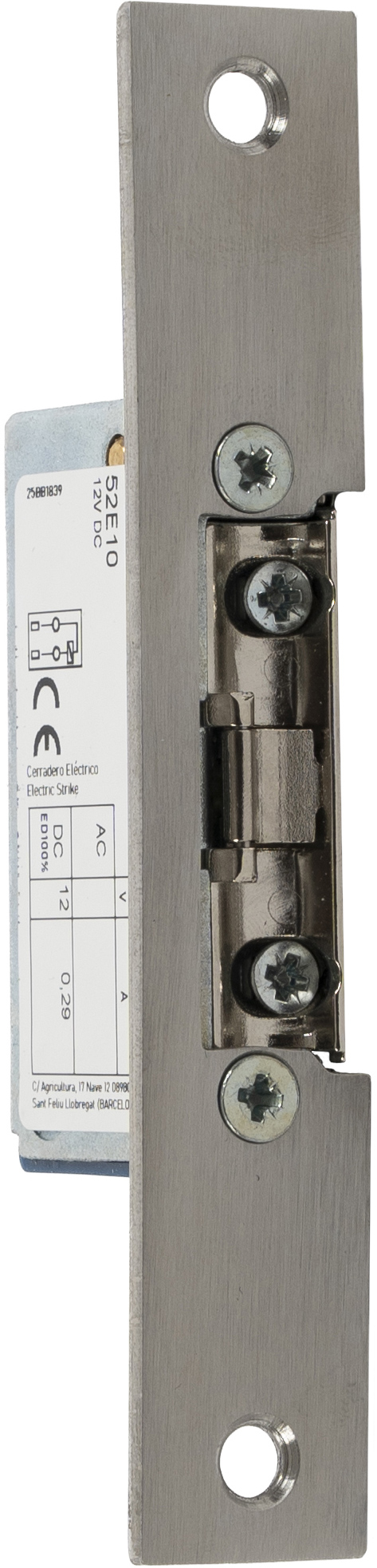

  • Mini electronic doorstrike series 5 - with momentum pin
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • short sheet metal front cover version (130 mm)
  • 16 mm width

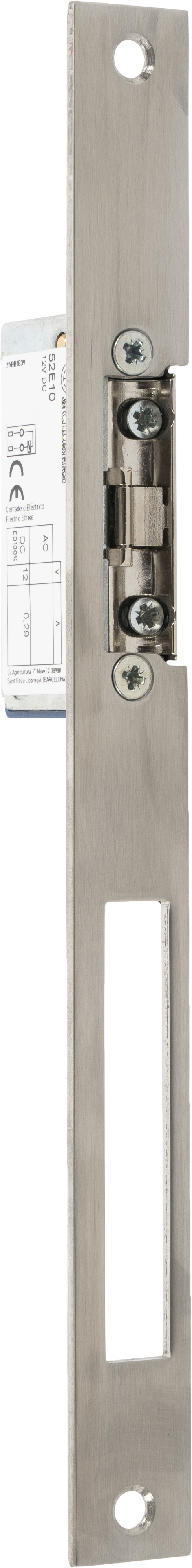

Part No. 11202102-L

  • Mini electronic doorstrike series 5 - with momentum pin, long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • long sheet metal front cover version (250 mm)
  • 16 mm width

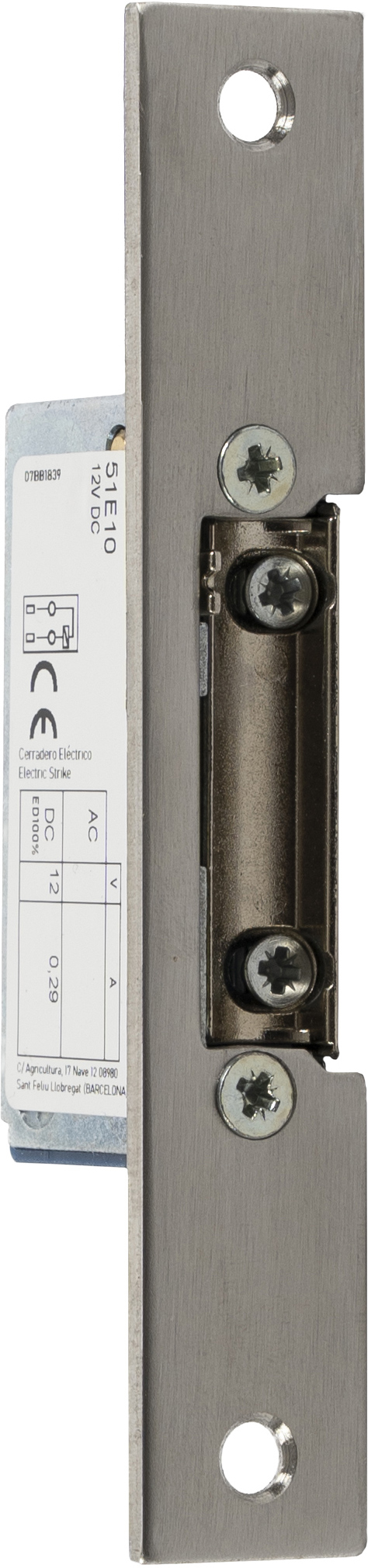

Part No. 11202103

  • Mini electronic doorstrike series 5 - with mechanical blocking
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • short sheet metal front cover version (130 mm)
  • 16 mm width

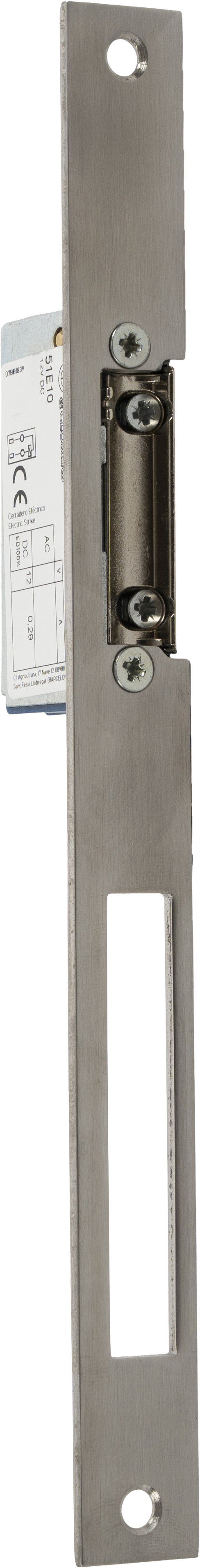

Part No. 11202103-L

  • Mini electronic doorstrike series 5 - with mechanical blocking, long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • long sheet metal front cover version (250 mm)
  • 16 mm width

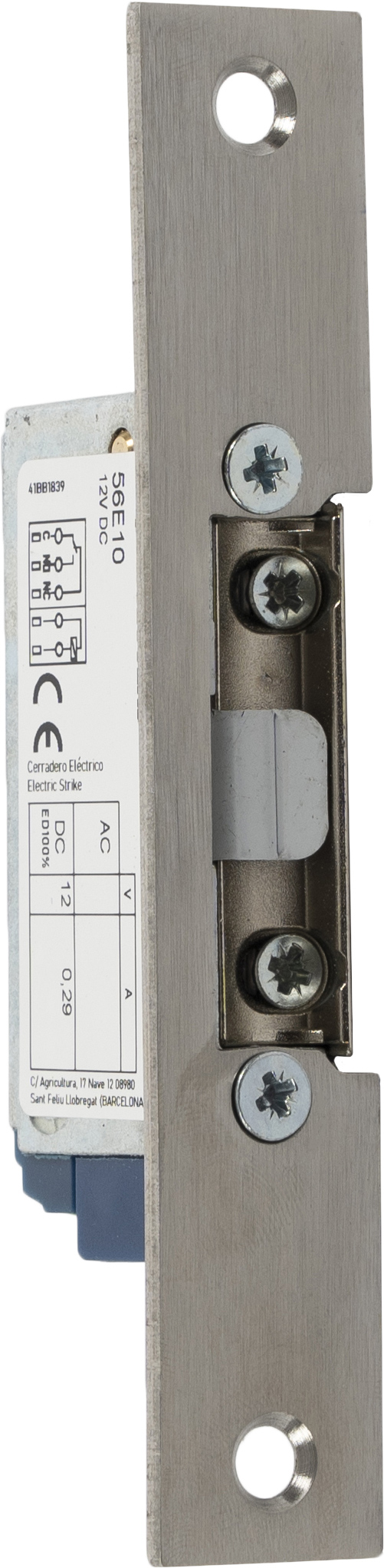

Part No. 11202104

  • Mini electronic doorstrike series 5 - door signaling
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • including a door state monitoring micro switch: open/closed
  • short sheet metal front cover version (130 mm)
  • 16 mm width

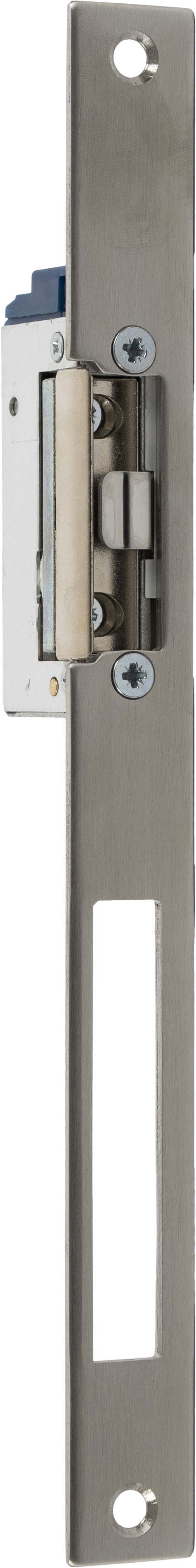

Part No. 11202104-L

  • Mini electronic doorstrike series 5 - door signaling, long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • including a door state monitoring micro switch: open/closed
  • long sheet metal front cover version (250 mm)
  • 16 mm width

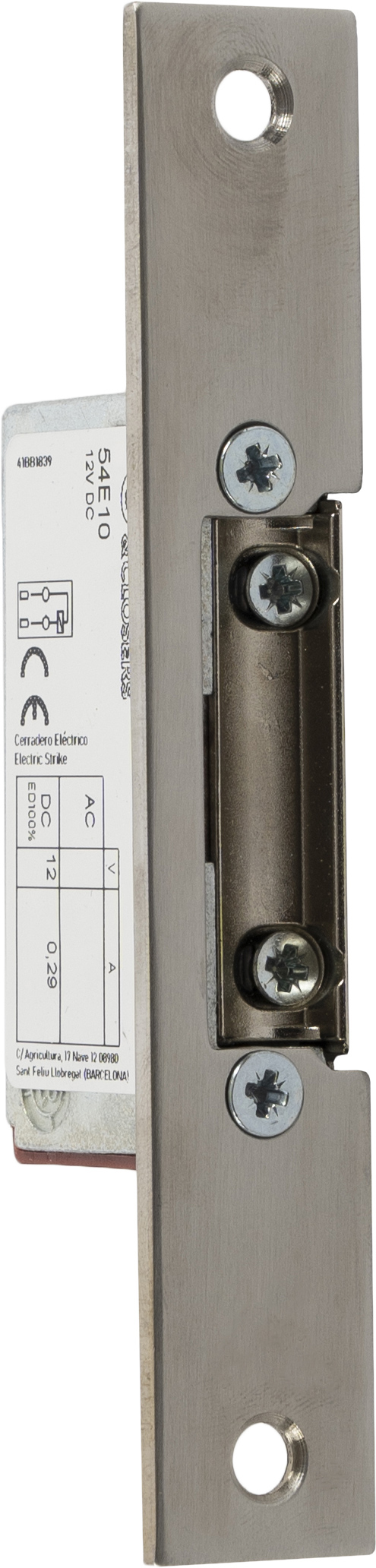

Part No. 11202105

  • Mini electronic doorstrike series 5 - fail-safe
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • under voltage: opener secured, blocked
  • at voltage interruption: opener unblocked, door can be opened
  • short sheet metal front cover version (130 mm)
  • 16 mm width

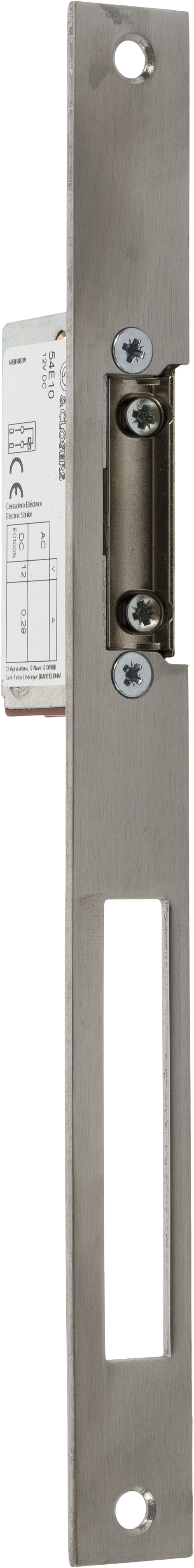

Part No. 11202105-L

  • Mini electronic doorstrike series 5 - fail-safe, long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • under voltage: opener secured, blocked
  • at voltage interruption: opener unblocked, door can be opened
  • long sheet metal front cover version (250 mm)
  • 16 mm width

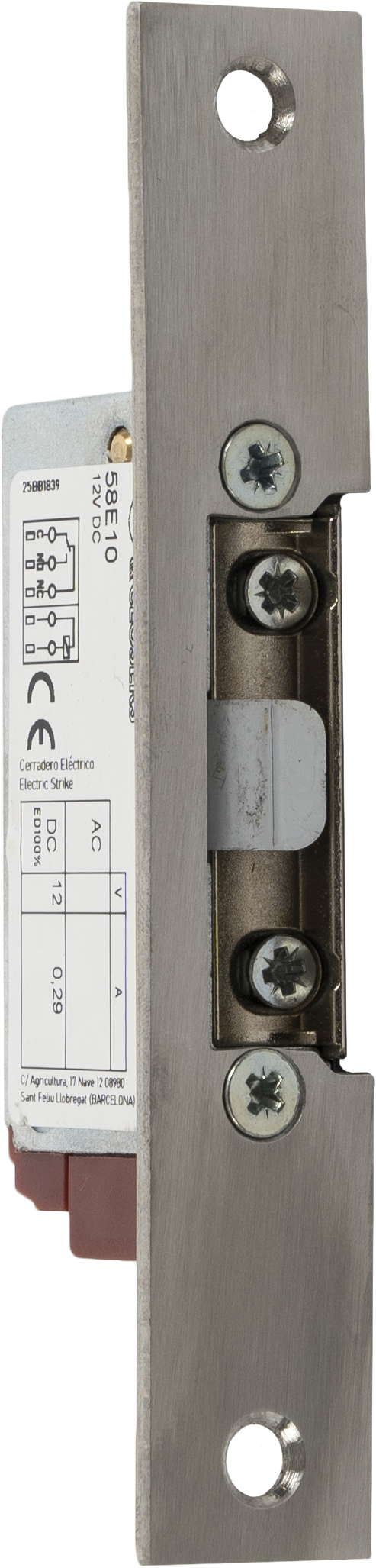

Part No. 11202106

  • Mini electronic doorstrike series 5 - fail-safe and door signaling
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • under voltage: opener secured, blocked
  • at voltage interruption: opener unblocked, door can be opened
  • short sheet metal front cover version (130 mm)
  • 16 mm width

Part No. 11202106-L

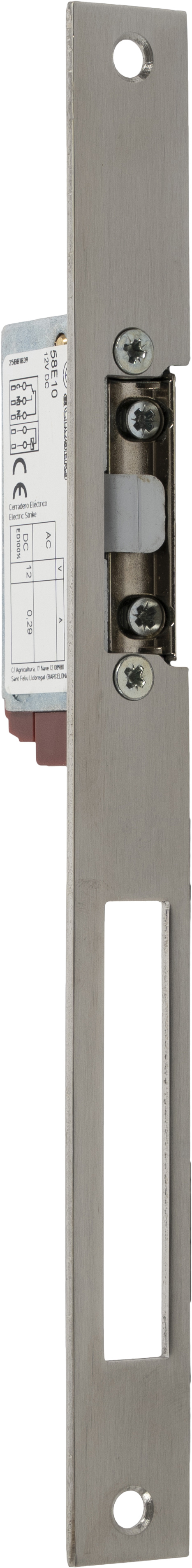

  • Mini electronic doorstrike series 5 - fail-safe and door signaling, long
  • electric opener designed for door frame installation
  • intended for such narrow profiles as aluminum, wood or PVC in particular
  • under voltage: opener secured, blocked
  • at voltage interruption: opener unblocked, door can be opened
  • long sheet metal front cover version (250 mm)
  • 16 mm width

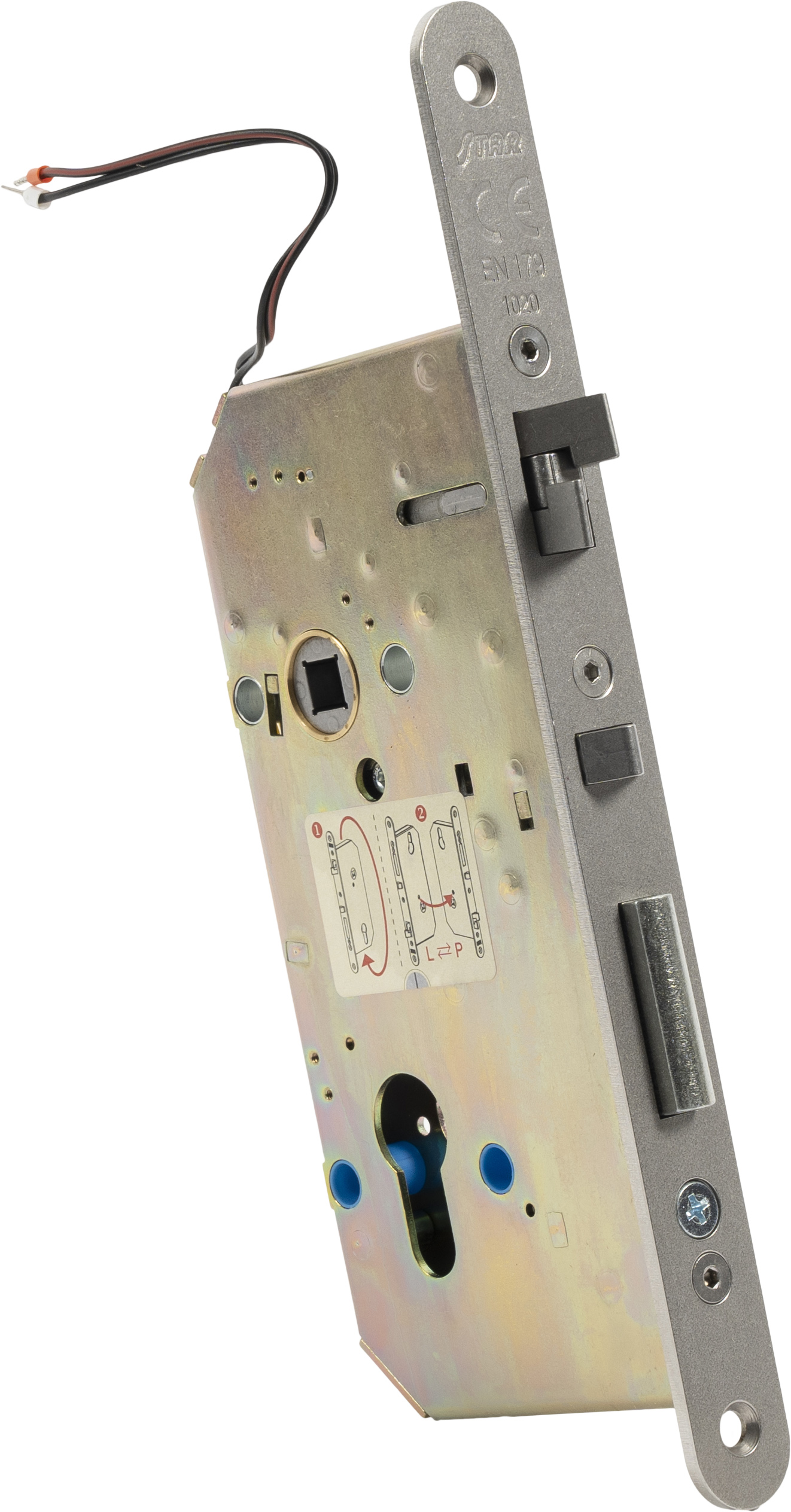

Part No. 11202201

  • Electromechanical lock SAM 7255
  • 72/55 self-locking lock with panic function
  • A key is necessary for door opening from the outside (or an electric pulse from a connected 2N IP intercom / reader).
  • convenient solution for emergency exits

Part No. 11202201-M

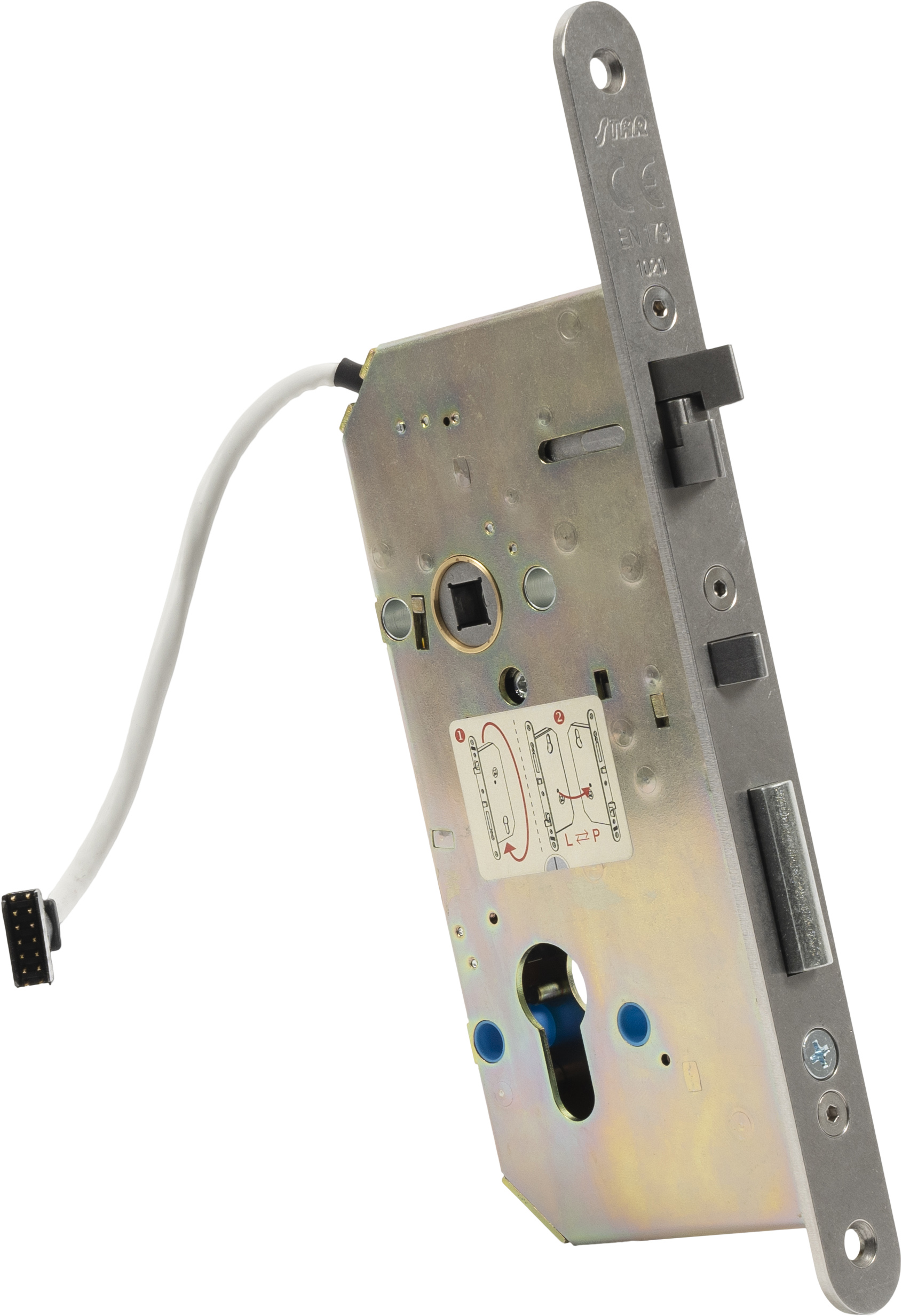

  • Electromechanical lock SAM 7255 with monitoring
  • 72/55 self-locking lock with panic function
  • A key is necessary for door opening from the outside (or an electric pulse from a connected 2N IP intercom / reader).
  • convenient solution for emergency exits

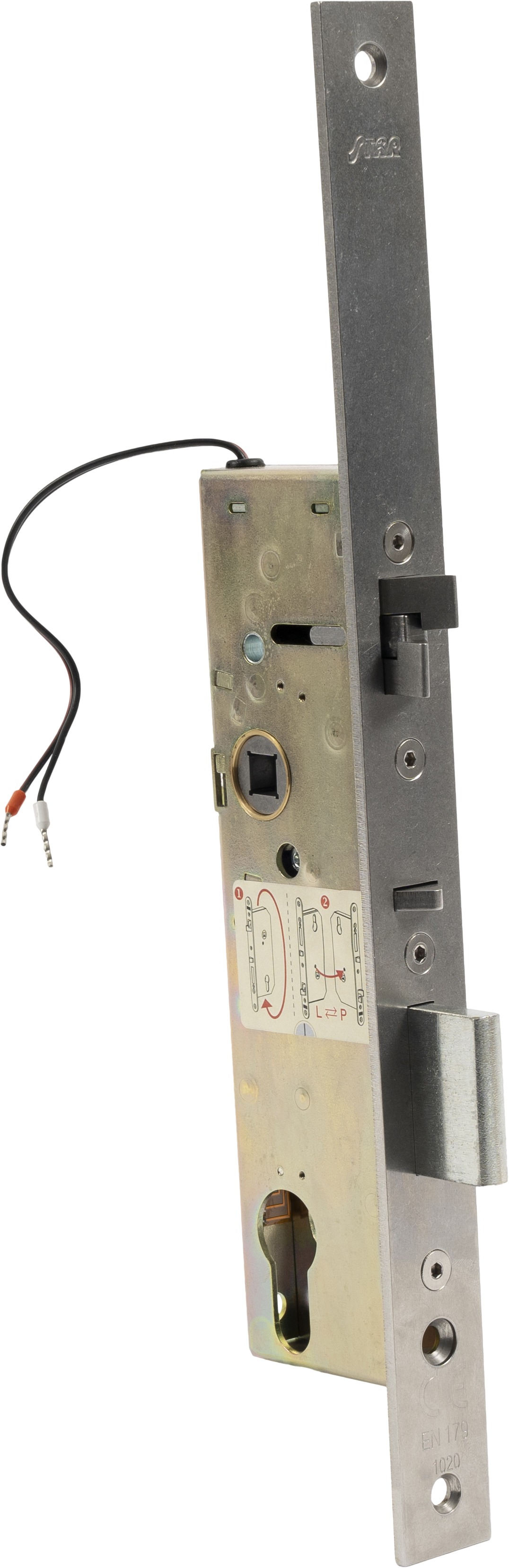

Part No. 11202202

  • Electromechanical lock SAM 9235
  • 92/35 self-locking lock with panic function
  • A key is necessary for door opening from the outside (or an electric pulse from a connected 2N IP intercom / reader).
  • convenient solution for emergency exits

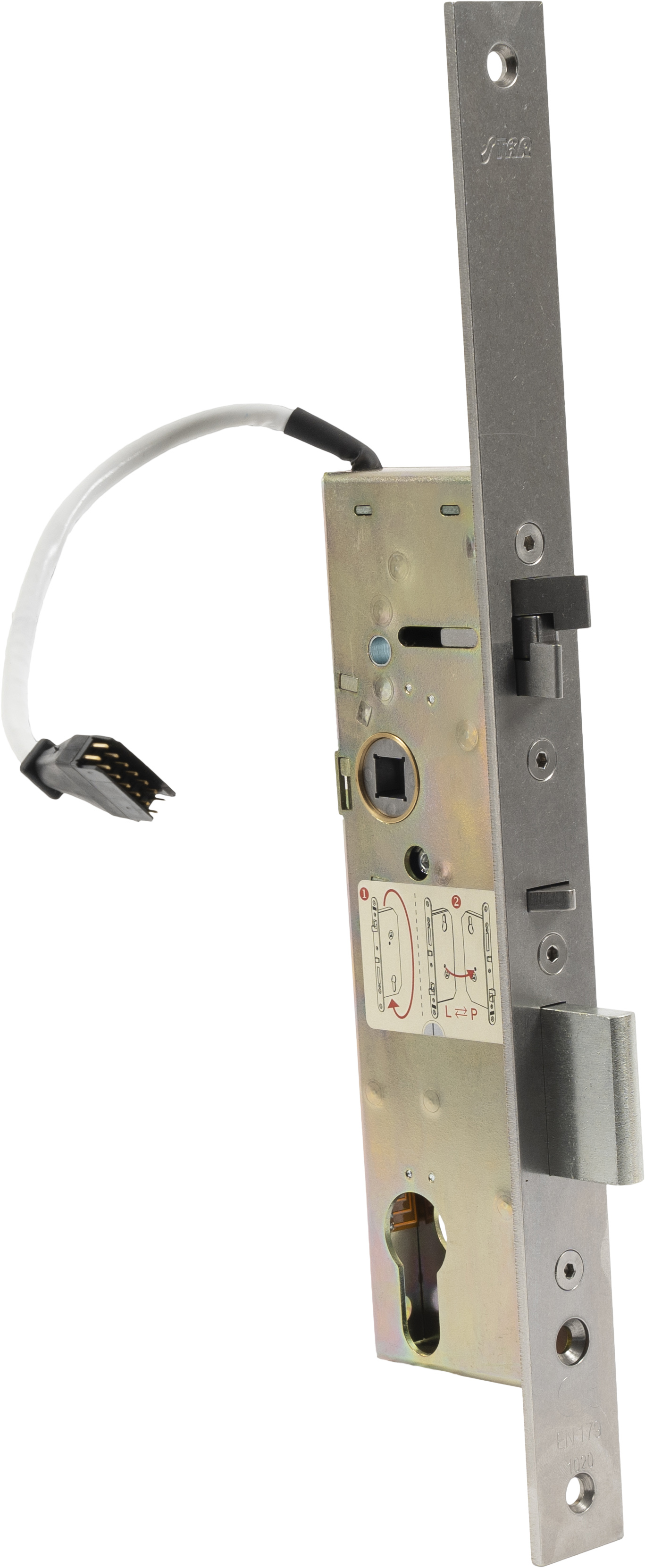

Part No. 11202202-M

  • Electromechanical lock SAM 9235 with monitoring
  • 92/35 self-locking lock with panic function
  • A key is necessary for door opening from the outside (or an electric pulse from a connected 2N IP intercom / reader).
  • convenient solution for emergency exits

Part No. 11202301

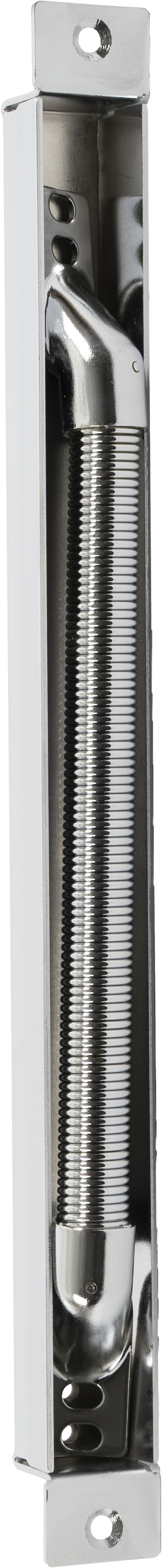

  • Cable protector FX290
  • Provides secure passage and protection of the supply cable between the door frame and the door leaf.
  • 290 mm length

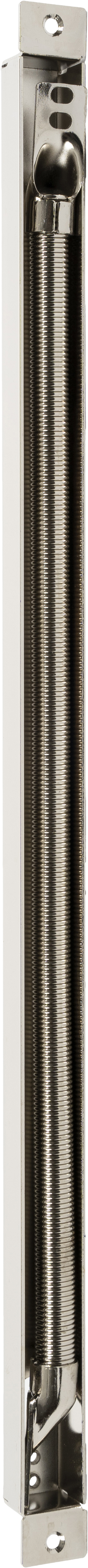

Part No. 11202302

  • Cable protector FX510
  • Provides secure passage and protection of the supply cable between the door frame and the door leaf.
  • 510 mm length

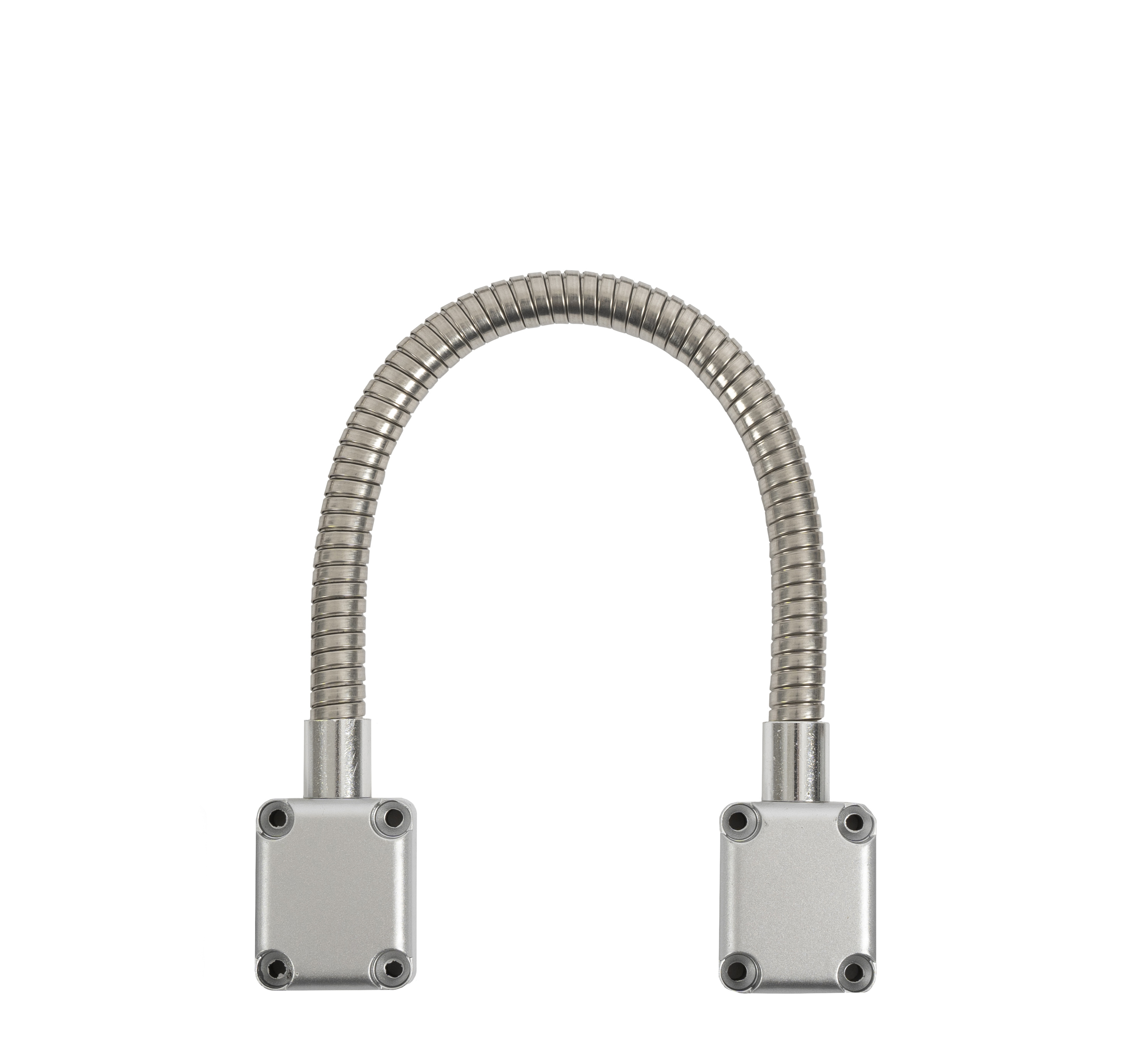

Part No. 11202303

  • Cable protector FX300G
  • Provides secure passage and protection of the supply cable between the door frame and the door leaf.
  • 440 mm length

Part No. 11202304

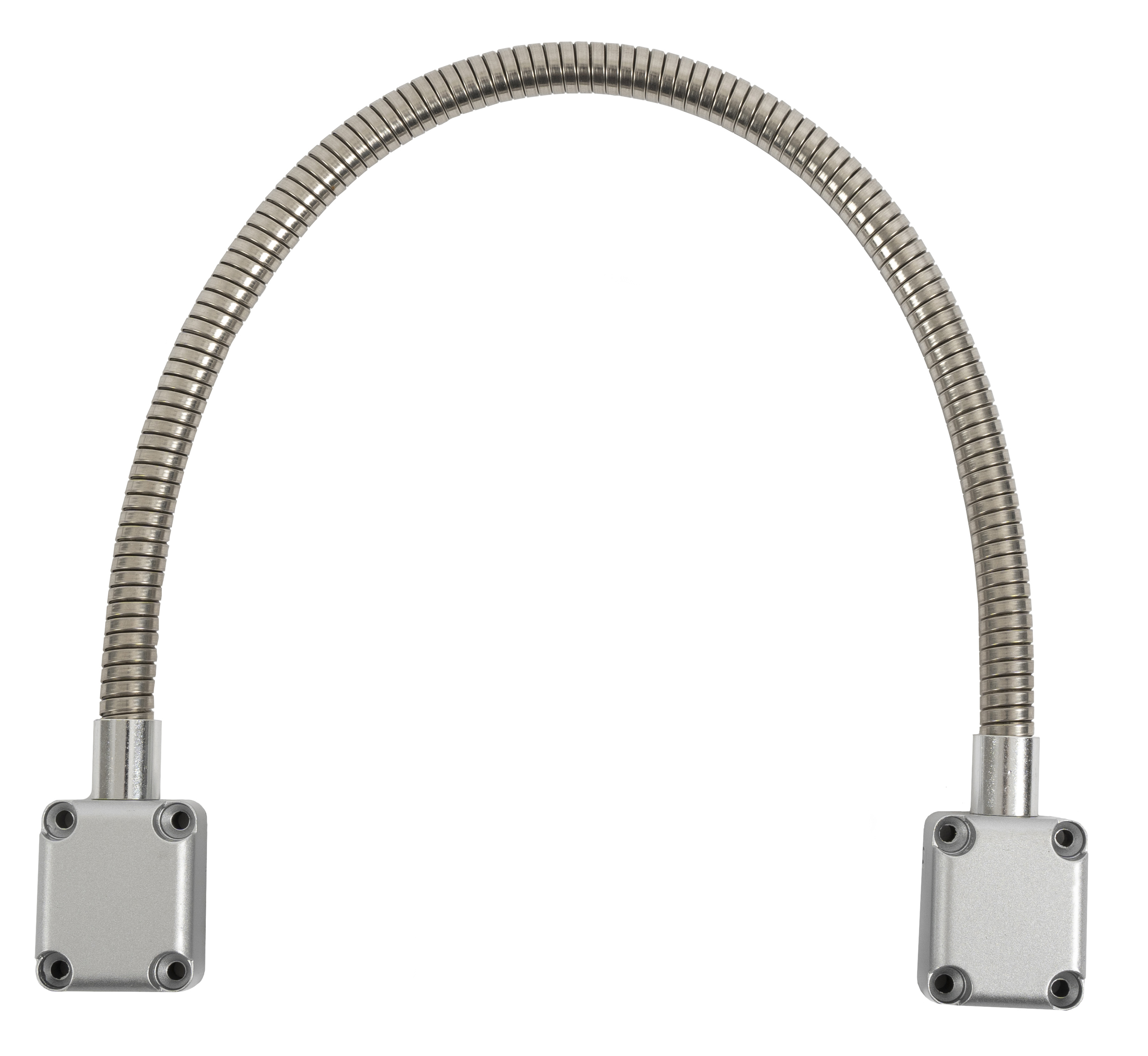

  • Cable protector FX500G
  • Provides secure passage and protection of the supply cable between the door frame and the door leaf.
  • 640 mm length

Part No. 11202203

  • Supply cable with 14-core connector
  • 6000 mm length
  • Conductor cross section: 14 × 0.22 mm
  • Terminated with a connector on one side
  • Designed for 11202201-M and 11202202-M locks

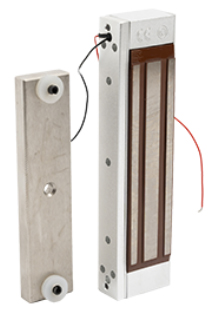

Part No. 11202107

  • Maglock MEX100
  • used as a door holding supplement, not replacing the lock
  • consists of two parts: supplied part and counterpart
  • under voltage: door cannot be opened
  • at voltage interruption: magnets get disconnected, door opens

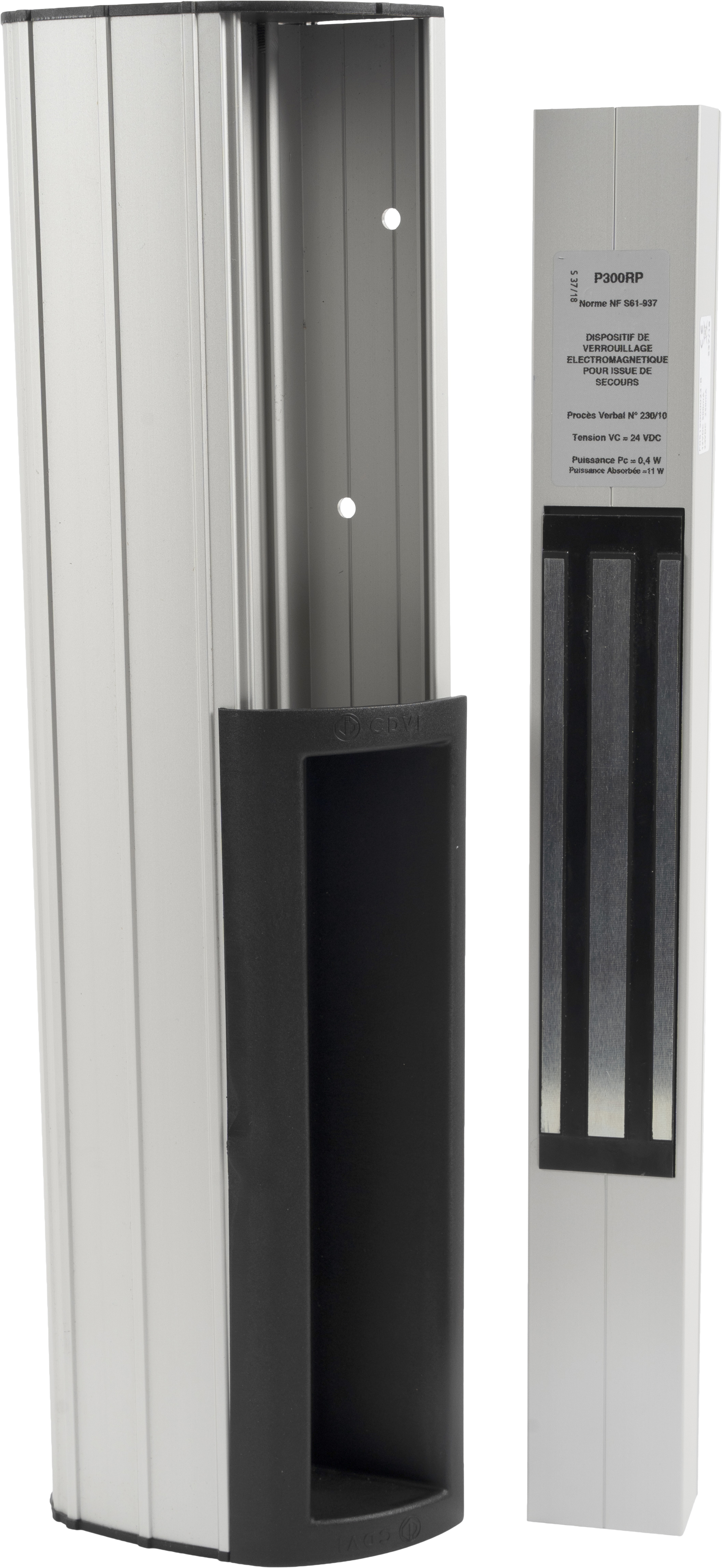

Part No. 11202501

  • Magnetic handle P300RP
  • fully replaces a mortise lock and handle
  • under voltage: door cannot be opened
  • at voltage interruption: magnets get disconnected, door opens
  • suitable for wooden, metal and glass doors

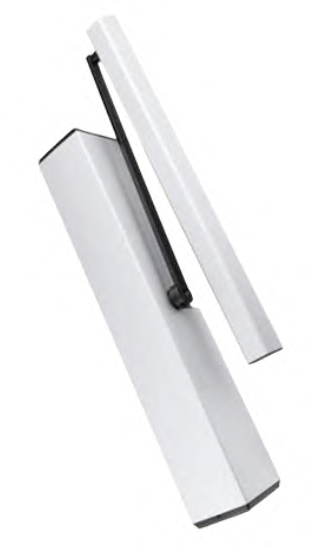

Part No. 11202401

  • ED100
  • low energy simple door operator
  • contactless operation
  • can be interconnected with a motion sensor and electronic access control system
  • applicable for right / left doors
  • in / out opening versions

Tip

Power Supply


Part Numbers:

2N Part No. 91378100E

2N Part No. 91378100US

Axis Part No. 01403-001

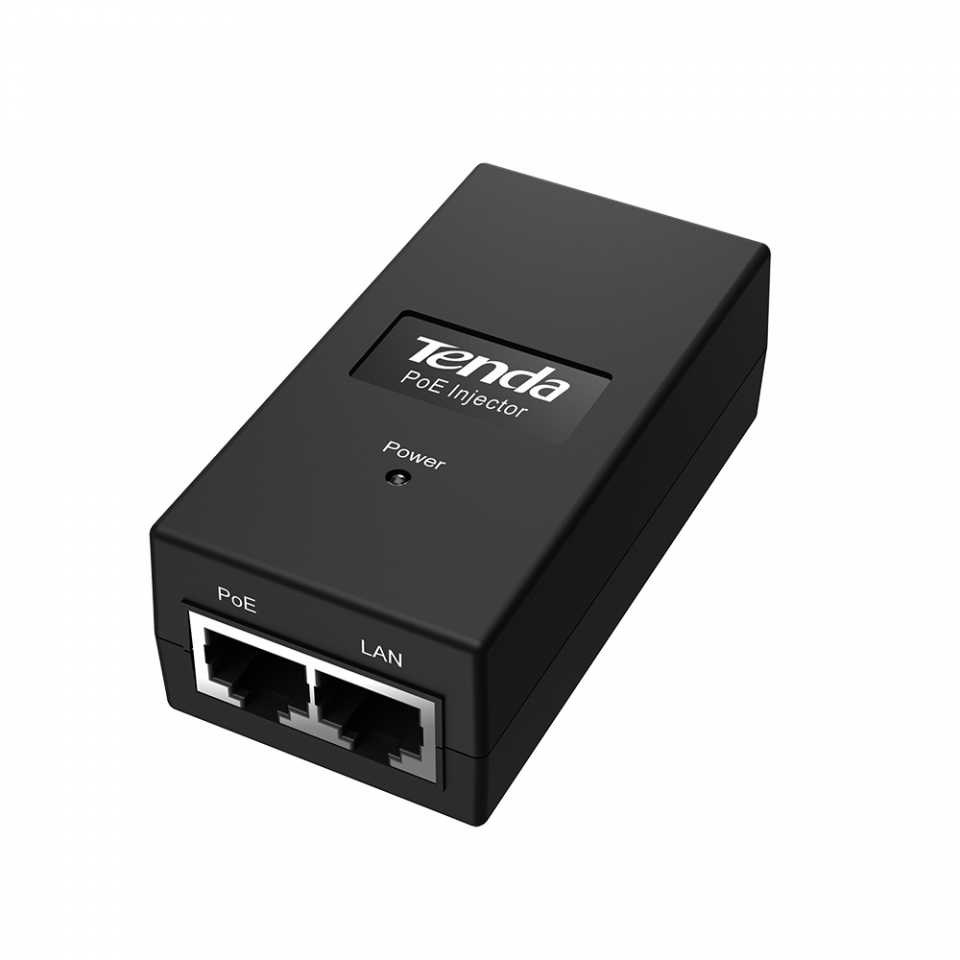

  • PoE injector – with EU cable
  • PoE injector – with US cable
  • For power supply of intercom via ethernet cable when PoE switch is not available.


Part No. 91341481E

  • Adapter 12 V / 2 A
  • A stabilised power supply has to be used if the Ethernet (PoE) power supply is not available.



Part No. 932928

  • 12 V transformer
  • For 230 V mains voltage.
  • For external power supply of the lock with 12 V AC voltage.

Two-wire connection


Part numbers:

2N Part No. 9159014EU

2N Part No. 9159014US

Axis Part No. 01404-001

2N Part No. 9159014UK

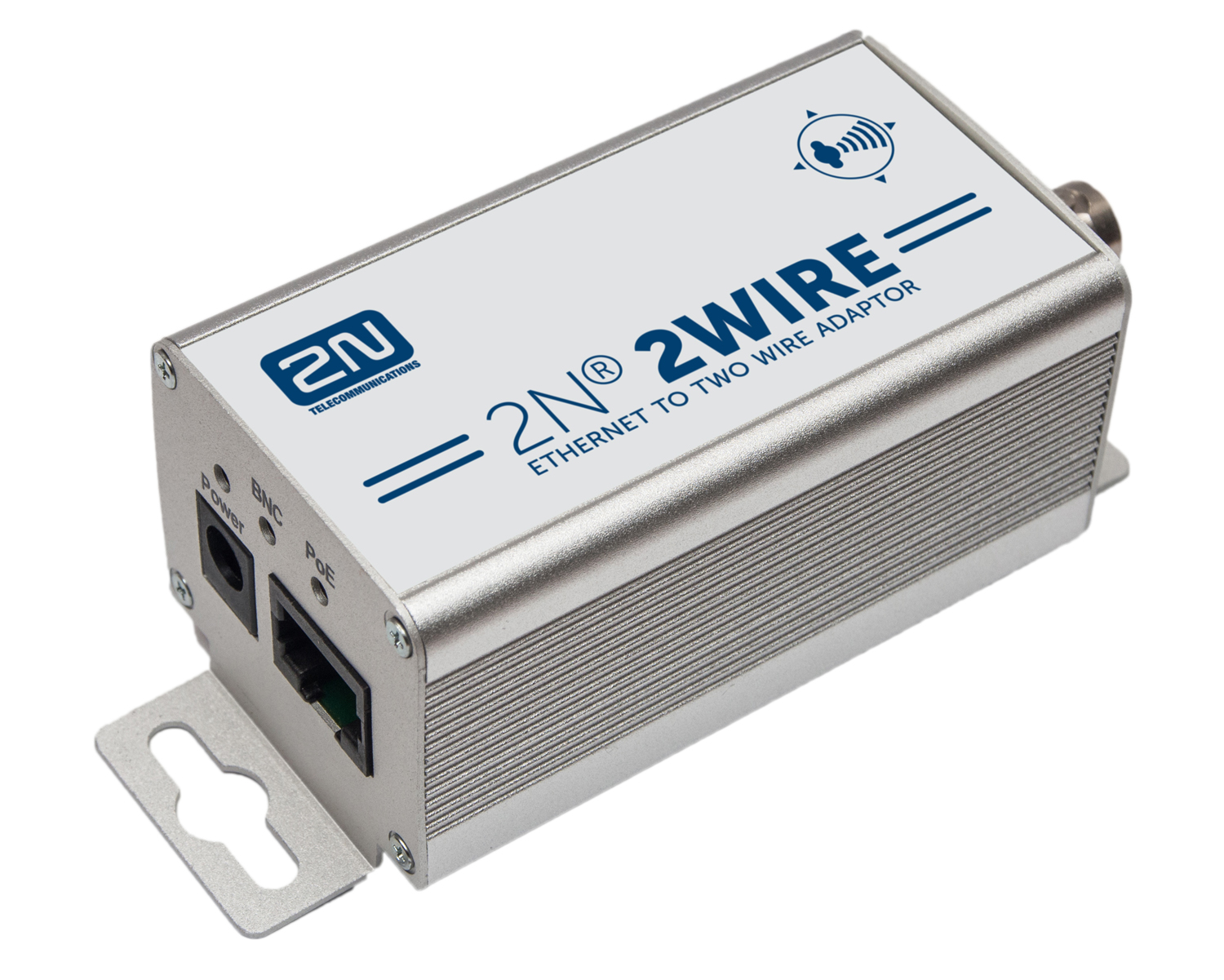

  • 2N® 2Wire
  • set of 2 adaptors and power source for EU/US/UK
  • The 2N® 2Wire converter allows you to use existing wiring (2 wires) from your original door bell or door intercom to connect any IP device. You don’t have to configure anything, and you only need one 2N® 2Wire unit at each end of the cable and a power source connected to at least one of these units.
    The 2N® 2Wire unit then provides PoE power not only to the second converter, but also to all other connected IP end devices.

External switches


2N Part No. 9159010

Axis Part No. 01386-001

  • 2N® Security Relay
  • A handy add-on that significantly enhances door entry security as it prevents tampering with the intercom and forced opening of the lock. To be installed between intercom and lock, powered by the intercom.


2N Part No. 9137410E

Axis Part No. 01397-001

  • External IP Relay – 1 output
  • Standalone IP device which can be controlled by HTTP commands sent by 2N IP intercom, which can thus control devices on unlimited distance.


2N Part No. 9137411E

Axis Part No. 01398-001

  • External IP Relay – 4 outputs, PoE
  • Standalone IP device which can be controlled by HTTP commands sent by 2N IP intercom, which can thus control devices on unlimited distance.

Sensors and switches

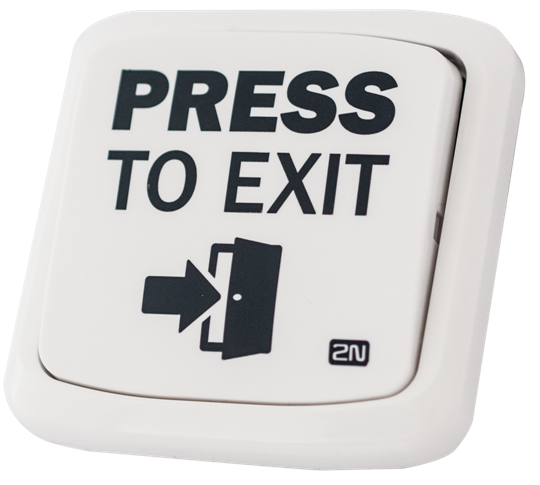

Part No. 9159013

  • Exit button
  • A button for connection to a logic input for opening a door inside a building.


2N Part No. 9154004

Axis Part No. 01479-001

  • Water-proof metal button
  • Hole diameter 19 mm, button diameter 22 mm.


2N Part No. 9159012

Axis Part No. 01388-001

  • Magnetic door contact
  • Set for installation on a door, enabling the status of door opening to be ascertained. Used when the intercom is used for door protection, to detect when the door is not closed or forced open.

Audio accessories


2N Part No. 9154001

Axis Part No. 02570-001

  • Electret microphone with self-adhesive layer.
  • Sensitivity 42 dB, operating temperature 5–35 °C.
  • Adhesion surface 25 (W) x 25 (H) x 16 (D) mm.
  • Cable length 2.9 m.
  • Must be protected from water penetration.


2N Part No. 9154002

Axis Part No. 02571-001

  • Speaker with self-adhesive layer.
  • External dimensions 60 (W) x 60 (H) x 14 (D) mm, actual speaker diameter 45 mm.
  • Cable length 1.4 m.
  • Must be protected from water penetration.

    • Impedance: 16 ohm +/- 15%

    • Power: 1 W

License


2N Part No. 9137909

  • Gold
  • Includes Enhanced Video, Enhanced Integration and Lift Control licenses


2N Part No. 9137910

Axis Part No. 01381-001

  • InformaCast

Tip

Tip

  • For more accessories and particular advice please contact your local distributor of 2N products.
