1.1 Components and Associated Products

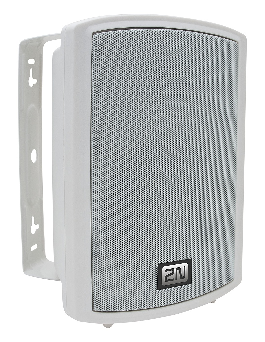

Basic Unit

Part No. 914421B

  • 2N® SIP Speaker, Wall Mounted
  • Black colour

Part No. 914421W

  • 2N® SIP Speaker, Wall Mounted
  • White colour

Power Supply

Part Numbers:

91378100

91378100E

91378100US

  • PoE injector – without cable
  • PoE injector – with EU cable
  • PoE injector – with US cable
  • For power supply of intercom via ethernet cable when PoE switch is not available.


Part No. 91341481E

  • Stabilised 12 V / 2 A power supply needs to be used when no PoE is available.

Part No. 932928

  • For external power supply of the lock with 12 V AC voltage.

VoIP Telephones

Part No. 91378357

  • Grandstream GXV3240 VoIP video telephone
  • GXV3240 is the successor to the popular GXV3140 model, which allows comfortable video calls in the IP network. Touchscreen and keyboard control.

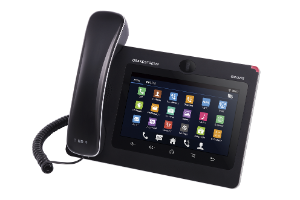

Part No. 91378358

  • Grandstream GXV3275 VoIP telephone
  • GXV3275 is the successor to the popular GXV3175 model, which allows comfortable video calls in the IP network. Touchscreen control.


Accessories

Part No. 914034B/W

  • Wall-mounted loudspeaker
  • A wall-mounted 8 Ohm loudspeaker can be connected as an loudspeaker to the 2N® SIP Speaker, Wall Mounted. Available in black and white.

Part No. 9137410E

  • External IP Relay – 1 output
  • Standalone IP device which can be controlled by HTTP commands sent by Helios IP intercom, which can thus control devices on unlimited distance.

Part No. 9137411E

  • External IP Relay – 4 outputs, PoE
  • Standalone IP device which can be controlled by HTTP commands sent by Helios IP intercom, which can thus control devices on unlimited distance.

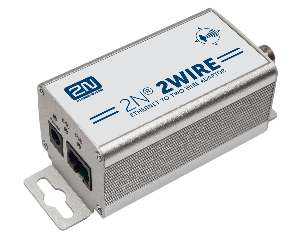

Part No. 9159014EU/US/UK

  • 2N® 2Wire
  • (set of 2 adaptors and power source for EU/US/UK)
  • The 2N® 2Wire converter allows you to use existing wiring (2 wires) from your original door bell or door intercom to connect any IP device. You don’t have to configure anything, and you only need one 2N® 2Wire unit at each end of the cable and a power source connected to at least one of these units.
    The 2N® 2Wire unit then provides PoE power not only to the second converter, but also to all other connected IP end devices.

Tip

  • For more accessories and particular advice please contact your local distributor of 2N products.
