5. Web Interface Configuration

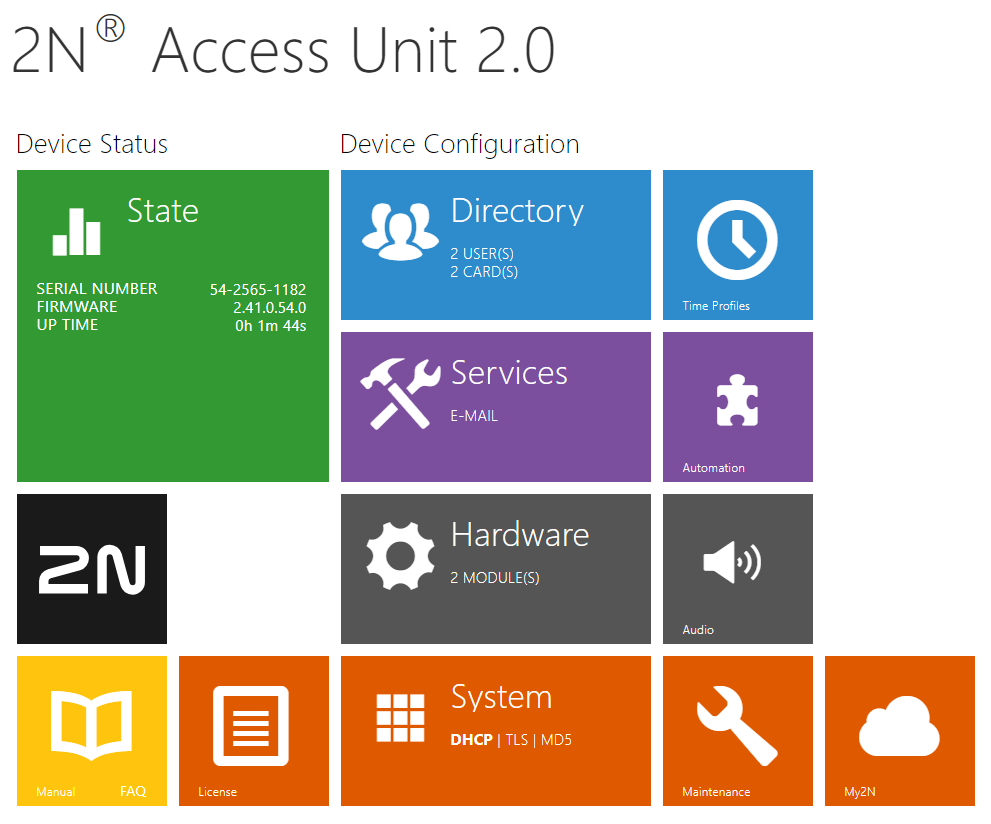

Start Screen

The start screen is an introductory overview screen displayed upon login to the web interface. Use the button in the left-hand upper corner of the following web interface pages to return to this screen anytime.

The screen header includes the device name (refer to the Display Name parameter in the Services > Web Server > Basic Settings). Use the menu in the right-hand upper corner of the web interface for selecting the language. Click Log out in the right-hand upper corner of the screen to log out from the device, press the question mark icon to display Help or use the bubble to provide feedback.

The start screen is also the first menu level and quick navigation (click on a tile) to selected device configuration sections. Some tiles also display the state of selected services.

Configuration Menu

The 2N access unit configuration includes 5 main menus: Status, Directory, Hardware, Services and System including submenus; refer to the survey below.

Caution

In this Configuration Manual, all the functions and parameters of the 2N access units are described. The units include 2N Access Unit, 2N Access Unit 2.0, 2N Access Unit QR and 2N Access Unit M. Some functions or parameters may not be available for all the models.

Status

Device – essentials on the device
Services – information on active services and their states
Licence – current states of licences and available functions
Access Log – list of last ten access cards
Events – list of events

Hardware

Switches – electric lock, lighting, etc. settings
Audio – audio, signalling tone, etc. volume settings
Keyboard – keyboard and code input settings
Backlight – intensity of backlight
Card Reader – card reader, Wiegand interface settings
Digital Inputs – management of digital inputs
Extenders – extender settings
Lift Control – floor lift access settings

Services

E-mail – sending e-mails when e.g. denied events
Mobile Key – Bluetooth settings and management of paired devices
Automation – flexible device settings according to user requirements
HTTP API – application programming interface for controlling selected functions of device
Web server – web server and access password settings
SNMP – functionality enabling remote monitoring of device in the network using SNMP protokol

System

Network – LAN connection settings, 802.1x, packet capturing
Date and time – real time and time zone settings
Features – test function settings
Licence – licence settings, trial licence activation
Certificates – certificate and private key settings
Auto Provisioning – automatic firmware and configuration update settings
Syslog – syslog message sending settings
Maintenance – backup and configuration reset, firmware update
