2.4 Extending Module Connection

2N Access Unit allows to connect following extending modules:

  • 5 Buttons
  • Keypad
  • Touch Keypad
  • Touch Display
  • 125 kHz RFID Card Reader
  • 13.56 MHz RFID Card Reader
  • 13.56 MHz RFID Card Reader, NFC support
  • Bluetooth & RFID Reader 125 kHz, 13.56 MHz, NFC
  • Bluetooth & RFID Reader 125 kHz, secured 13.56 MHz, NFC
  • Touch Keypad & RFID Reader 125 kHz, 13.56 MHz, NFC
  • Touch Keypad & RFID Reader 125 kHz, secured 13.56 MHz, NFC
  • Bluetooth Reader
  • Fingerprint Reader
  • I/O Module
  • Infopanel
  • Wiegand
  • Security Relay

Module Bus Interconnection

All the modules that can be connected to 2N Access Unit are interconnected via a bus. The bus starts on the basic unit and goes over all the modules. The order of modules on the bus is irrelevant. And it also irrelevant which bus connector on the module is used as the input and which is used as the output.

The modules include a 220 mm long bus interconnecting cable; Part No. 9155037 Wiegand modules and Part No. 9155034 I/O modules include an 80 mm long bus cable. These two modules can be hidden inside one of the modules described below (Infopanel, Keypad, RFID card reader, Bluetooth) and/or placed freely behind a standalone access unit (in a mounting box, e.g.).

It is possible to order separate bus cables of the lengths of 1 m, 3 m, or 5 m (Part Nos. 9155050/9155054/9155055), which are designed for remote 2N Access Unit module installations. Typically, they are used for an RFID card reader mounted on a wall opposite to the 2N Access Unit installation. The cable may be used only once on the bus. In extensive installations, the total bus cable length may not exceed 7 m.

Module Power Supply

All the modules connected to 2N Access Unit, except for the Tamper Switch, are powered from the bus. The available bus power output depends on the power supply type. The basic unit can use a 2 A power supply to increase the bus power available to the modules connected.

Power supplySpecificationAvailable power output
External supply12 V ±15% / 1 A12 W
PoE802.3af (Class 0–12.95 W)12 W

The count of modules on the bus is limited by the available power supply output. The maximum count of the modules on the bus is 30.

Basic unit

(571v3)

Consumption [W]

(Maximum value)

At relax1.2
OUT 14.8
Total6
Module

Idle consumption [W]

(Minimum value)

Full load [W]

(Maximum value)

Special elements[W]
Basic unit (586v3)1.26
Infopanel (580v2)0.170.64
Keypad (579v2)0.201.55
125 kHz RFID card reader (584v2)
13.56 MHz RFID card reader (583v2)0.420.89

Bluetooth module (2271v2)

0.150.3
I/O module (577v2)0.350.66Closed relay 0.13
Wiegand module (581v1)

Specimen configuration consumption computation:

ModuleMinimum consumption [W]Maximum consumption [W]
Basic unit1.26
13.56 MHz RFID card reader (583v2)0.420.89
I/O module (577v2)0.350.66
Tamper switch00
Wiegand module (581v1)xx
Total2.077.55

It is obvious from the specimen configuration that all the modules have sufficient outputs when an external power supply is used. When a PoE supply is used, the power output is insufficient for all the modules, which results in automatic decrease in backlight level, active output current supply, volume and LED intensity.

Some modules need a specific power output for their specific activities: the I/O module, e.g., requires 0.13 W for relay closing (not included in the minimum consumption).

5 Buttons Module

The Buttons module (Part No. 9155035) is used for dialling selected Automation functions.

  • The module contains two bus connectors for 2N Access Unit.
  • These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.

Keypad Module

The Keypad module (Part No. 9155031) is used for a numeric access to the system.

  • The module contains two bus connectors for 2N Access Unit.
  • These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.

Touch Keypad

The Touch keypad (Part No. 9155047) provides a numerical input in the system.

  • The module contains two 2N Access Unit bus connectors.
  • These two connectors are fully interchangeable and can be used both as inputs from the main unit and outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.

Touch Display

The Touch display (Part No. 9155036) can be used as:

  • Infopanel module – displays user defined image sequences
  • Keypad module – virtual touch keypad
  • Button module – virtual phone directory

Module connection options:

  • The module contains two 2N Access Unit. bus connectors.
  • These two connectors are fully interchangeable and can be used both as inputs from the basic unit and outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.

Technical specification:

  • Resolution: 320 px x 214 px H x V
  • Resolution slideshow: 214 px x 214 px
  • Contrast ratio: 400
  • Brightness: 350 cd/m2
  • Weight: 280 g
  • Working temperature: 20 °C – 60 °C
  • Resistance level: IK07

Caution

  • The display is not supported on Access Unit 1.0 from FW version 2.27.

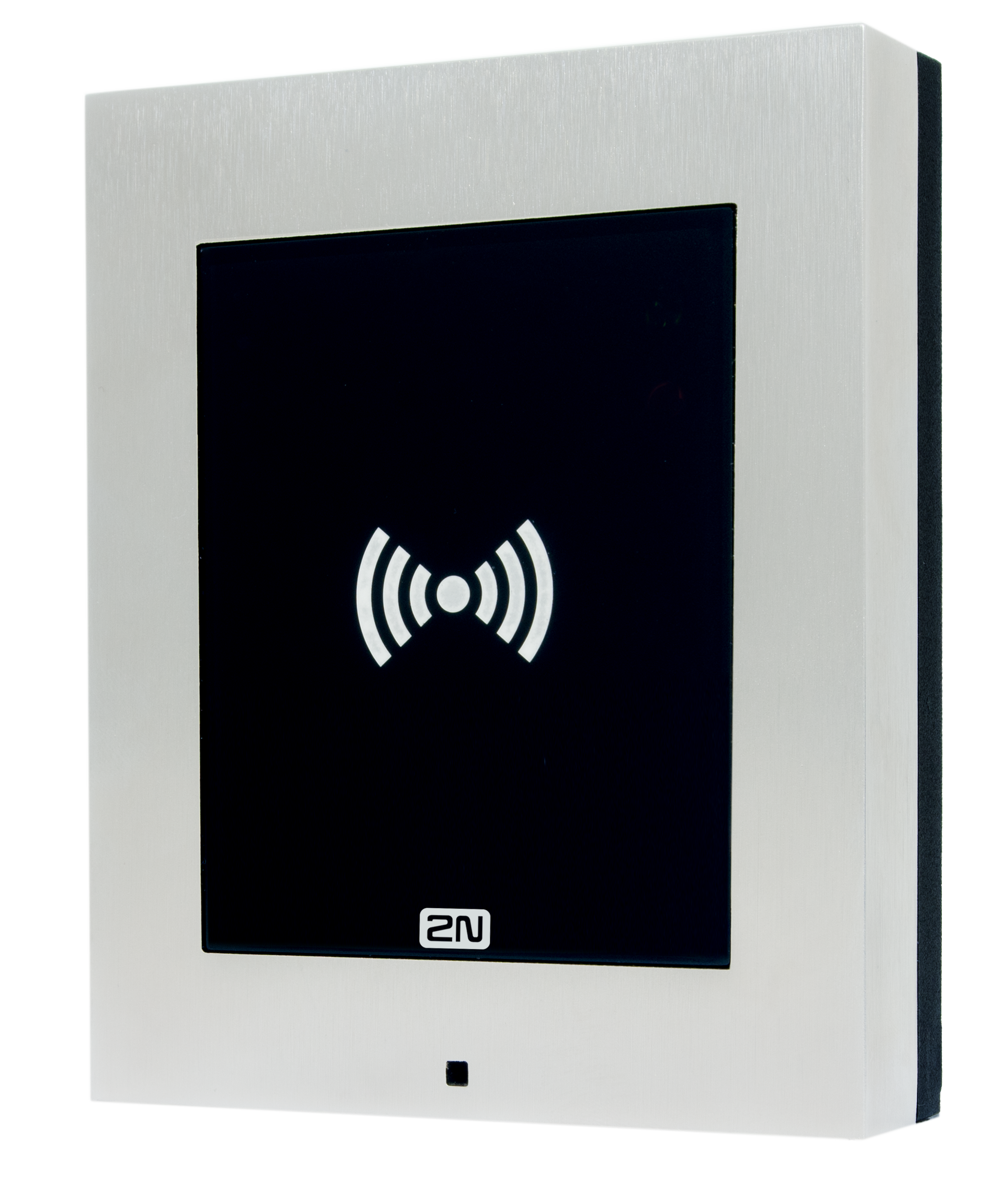

125 kHz RFID Card Reader Module

The 125kHz RFID card reader module (Part No. 9155032) is used for reading RFID card Ids in the 125 kHz band.

  • The module contains two bus connectors for 2N Access Unit.
  • These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.

The following RFID cards can be read:

  • EM4xxx

13.56 MHz RFID Card Reader, NFC support

 The 13.56 MHz RFID card reader (Part No. 9155040) is used for reading RFID card Ids in the 13.56 MHz band.

  • The module contains two bus connectors.
  • These two connectors are fully interchangeable and can be used both as inputs from the main unit and outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.

The following RFID cards can be read (only the card serial number is read):

  • ISO14443A (Mifare, DESFire)
  • PicoPass (HID iClass)
  • FeliCa
  • ST SR(IX)
  • 2N® Mobile Key

 Bluetooth & RFID Reader 125 kHz, 13.56 MHz, NFC

Bluetooth with a combined 125 kHz and 13.56 MHz card reader module (Part No. 9155082) is used for Smartphone/2N® Mobile Key tablet/card access control, making user calls and/or other functions.

  • NFC – a licensed function, for 2N® Mobile Key for Android only.
  • The module contains two bus connectors.
  • These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.

The following RFID cards can be read:

  • 125 kHz

    • EM4xxx
  • 13.56 MHz

    • ISO14443A (Mifare, DESFire)
    • PicoPass (HID iClass)
    • FeliCa
    • ST SR(IX)
    • 2N® Mobile Key

Tip

  •  To accelerate card reading, you are recommended to select the card types used by the user in the module settings.

 Bluetooth & RFID Reader 125 kHz, secured 13.56 MHz, NFC

Bluetooth with a combined 125 kHz and secured 13.56 MHz card reader (Part No. 9155084) is used for Smartphone/2N® Mobile Key tablet/card access control, making user calls and/or other functions.

  • NFC – a licensed function, for 2N® Mobile Key for Android only.
  • The module contains two bus connectors.
  • These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.

The following RFID cards can be read:

  • 125 kHz

    • EM4xxx

  • 13.56 MHz
    • ISO14443A (Mifare, DESFire)
    • PicoPass (HID iClass)
    • FeliCa
    • ST SR(IX)
    • 2N® Mobile Key
    • HID SE (Seos, iClass SE, Mifare SE)

Tip

  •  To accelerate card reading, you are recommended to select the card types used by the user in the module settings.

 Touch Keypad & RFID Reader 125 kHz, 13.56 MHz, NFC

The touch keypad with a combined 125 kHz and 13.56 MHz card reader (Part No. 9155081) is used for code/card access control, making user calls and/or other functions. The keypad surface is very sensitive yet weatherproof at the same time.

  • NFC – a licensed function, for 2N® Mobile Key for Android only.
  • The module contains two bus connectors.
  • These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.

The following RFID cards can be read:

    • 125 kHz

      • EM4xxx

    • 13.56 MHz
      • ISO14443A (Mifare, DESFire)
      • PicoPass (HID iClass)
      • FeliCa
      • ST SR(IX)
      • 2N® Mobile Key

Tip

  • To accelerate card reading, you are recommended to select the card types used by the user in the module settings.

Touch Keypad & RFID Reader 125 kHz, secured 13.56 MHz, NFC

The touch keypad with a combined 125 kHz and secured 13.56 MHz card (Part No. 9155083) reader is used for code/card access control, making user calls and/or other functions. The keypad surface is very sensitive yet weatherproof at the same time.

  • NFC – a licensed function, for 2N® Mobile Key for Android only.
  • The module contains two bus connectors.
  • These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.

The following RFID cards can be read:

  • 125 kHz

    • EM4xxx

  • 13.56 MHz
    • ISO14443A (Mifare, DESFire)
    • PicoPass (HID iClass)
    • FeliCa
    • ST SR(IX)
    • 2N® Mobile Key
    • HID SE (Seos, iClass SE, Mifare SE)

Tip

  •  To accelerate card reading, you are recommended to select the card types used by the user in the module settings.

Bluetooth Reader

The Bluetooth reader module (Part No. 9155046) helps authenticate and subsequently open doors using Android and iOS based smartphones via the Bluetooth protocol 4.0 as RFID card replacement. Install the 2N® Mobile Key application from Google Play and Appstore to make authentication work properly. The application requires phones with Android OS 6.0 Marshmallow and higher and iOS 12 and higher.

  • The module contains two 2N Access Unit bus connectors.
  • The two connectors are fully interchangeable and can be used both as inputs from the main unit or outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The package includes a 220 mm long interconnecting cable.
  • The module uses the 2.4 GHz frequency.

IDs from the following smart phones can be read:

  • Android 6.0 and higher
  • iPhone 4S and higher with iOS 12 and higher

Fingerprint Reader

The Fingerprint reader is used for automated verification of human fingers for access control and intercom control.

  • The module contains two 2N Access Unit bus connectors.
  • These two connectors are fully interchangeable and can be used both as inputs from the main unit and outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.

 Important module properties:

  •  FBI PIV and Mobile ID certification – FAP20
  •  Durable glass touch surface
  •  Rejects spoof fingerprints
  •  20 to 55 ºC operating temperature range
  • 0–90% relative humidity, noncondensing

Note

  • A higher moisture may deteriorate finger papillary line scanning. You are advised to dry your finger and the reader scanning surface for successful authentication.
  • Fingerprint scanning can be rather difficult with older persons whose papillary lines are no so distinct (lower finger elasticity due to age requires a higher pressure for scanning and the fingerprint might be blurred).

I/O Module

The I/O module (Part No. 9155034) is used for extending of the number of inputs and outputs.

  • The module contains two bus connectors for 2N Access Unit.
  • These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes an 80 mm long interconnecting cable.
  • The inputs / outputs are addressed as follows: <module_name>.<input/output_name>, e.g. module5.relay1. Configure the module name in the Module name parameter in the Hardware / Extenders menu.

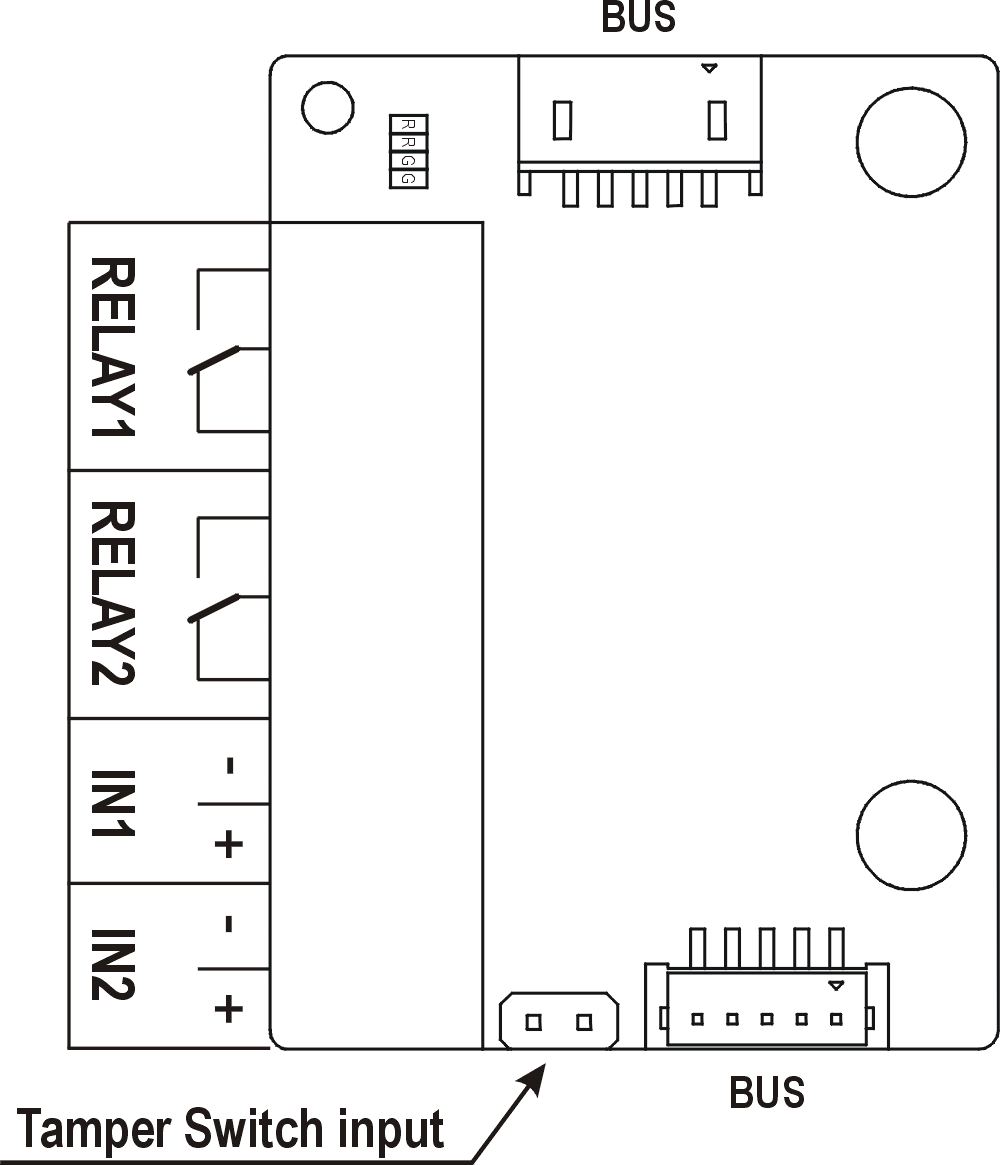

RELAY1

RELAY1 terminals with accessible 30 V / 1 A AC/DC NO/NC contact

RELAY2

RELAY2 terminals with accessible 30 V / 1 A AC/DC NO/NC contact

IN1

IN1 terminals for input in passive/ active mode (−30 V to +30 V DC)

OFF = open or UIN> 1.5 V

ON = short-circuit or UIN< 1.5 V

IN2

IN2 terminals for input in passive/active mode (−30 V to +30 V DC)

OFF = open or UIN> 1.5 V

ON = short-circuit or UIN< 1.5 V

TAMPERTamper switch input, Part No. 9155038



Infopanel Module

The Infopanel module (Part No. 9155030) is used for inserting and backlighting of printed information.

  • The module contains two bus connectors for 2N Access Unit.
  • These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes a 220 mm long interconnecting cable.
  • Name tag dimensions: 69.2 (W) x 86.7 (H) mm (dimensional tolerance: +0; −0.5 mm).
  • For the printing template refer to www.2n.cz

Wiegand Module

The Wiegand module (Part No. 9155037) helps connect an external Wiegand device (RFID card reader, fingerprint or other biometric data reader) and/or connect 2N Access Unit to an external security exchange. All the inputs and outputs are galvanically isolated from 2N Access Unit with the insulation strength of 500 V DC.

  • The module contains two bus connectors for 2N Access Unit.
  • These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.
  • If this module is the last one on the bus, one of the connectors remains unconnected.
  • The module package includes an 80 mm long interconnecting cable.
  • Configure the module name in the Module name parameter in the Hardware / Extenders menu.
    • The LED IN input is addressed as follows: <module_name>.<input1>, e.g. module2.input1.
    • The Tamper input is addressed as follows: <module_name>.<tamper>, e.g. module2.tamper.
    • The LED OUT (negated) output is addressed as follows: <module_name>.<output1>, e.g. module2.output1.

Reader

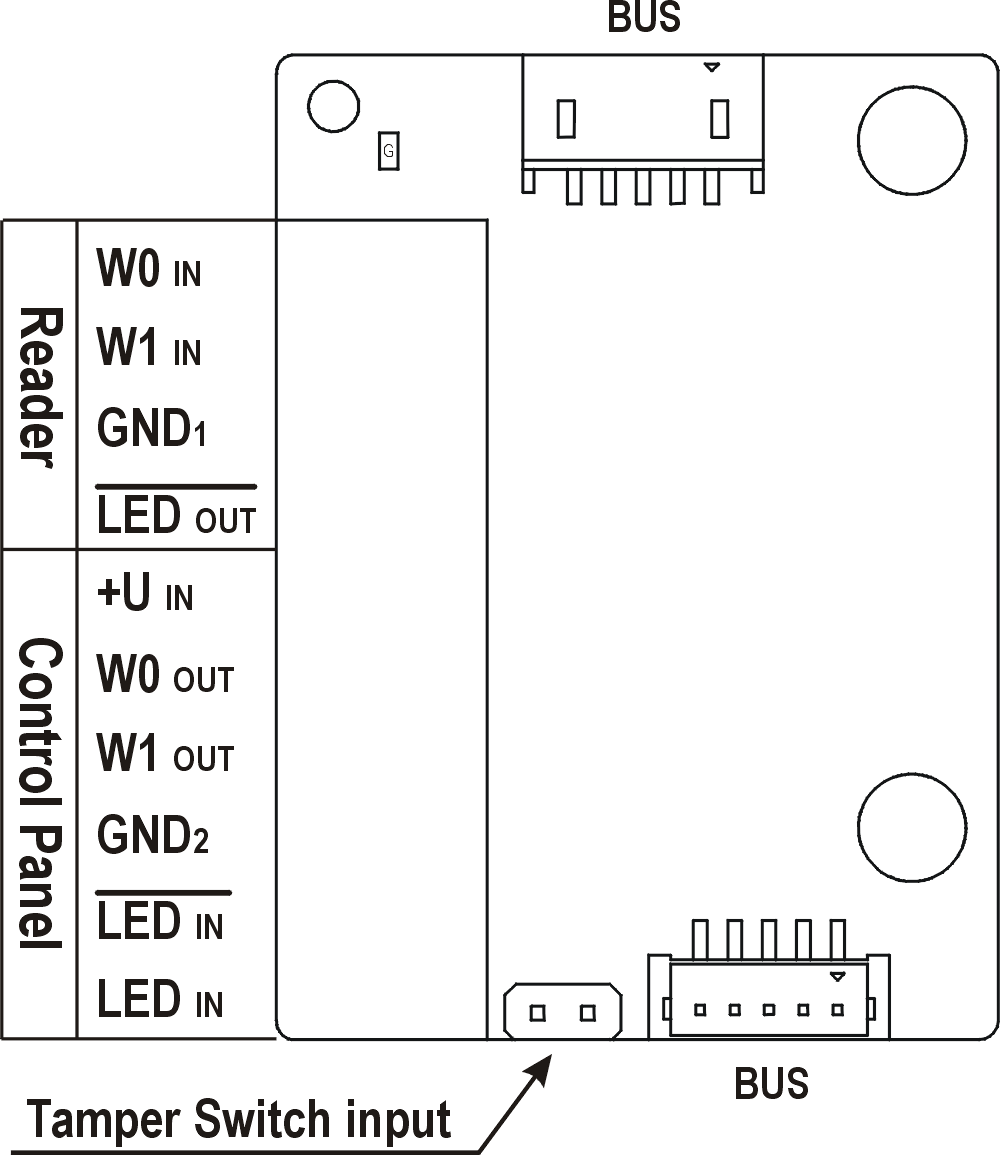

W0IN,W1 IN, GND1

Isolated 2-wire WIEGAND IN

LEDOUT

Isolated open LED OUT switched against GND1(up to 24 V / 50 mA)

Control Panel+UIN

+U (5 to 15 V DC) WIEGAND OUT power supply input

W0OUT,W1 OUT, GND2Isolated 2-wire WIEGAND OUT
LEDIN (negated)

Isolated input for open LED IN, input activated by GND2

LEDINIsolated input for open LED IN, input activated by +U
 G

active supply LED indicator +UINWIEGAND OUT

 TAMPERTamper switch input, Part No. 9155038
Wiegand Input Technical Parameters
Current5 mA
Input resistance680 Ohm
Pulse length50 μs
Delay between pulsesapprox. 2 ms

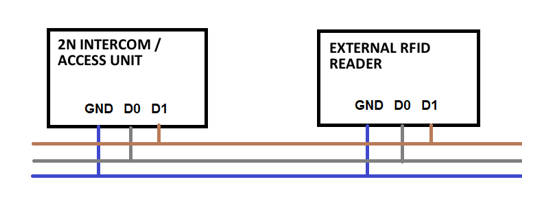

 Recommended Wiring Diagram for Reader with Bus Driver

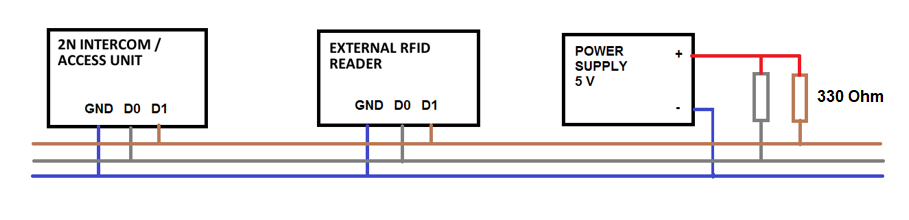

Recommended Wiring Diagram for Reader with Open Collector (OC) Output

2N® IP Security Relay

The 2N® IP Security relay (Part No. 9159010) is used for enhancing security between the access unit and the connected electric lock. It significantly enhances security of the connected electric lock as it prevents unlocking by forced opening of the 2N Access Module.



Function:

The 2N® IP Security relay is a device installed between the access unit (outside the secured area) and an electric lock (inside the secured area). The 2N® IP Security relay includes a relay that can only be activated if the valid opening code is received from the access unit.



Specifications:

Passive switch: NO and NC contacts, up to 30 V / 1 A AC / DC

Switched output:

  • Where the security relay is fed from the intercom, 9 to 13 V DC is available on the output depending on the power supply (PoE: 9 V; adapter: source voltage of minus 1 V) / 400 mA DC.
  • Where the security relay is fed from an external power supply, 12 V / 700 mA DC is available on the output.

Dimensions: (56 x 31 x 24) mm

Weight: 20 g

Installation:

The 2N® IP Security relay is installed onto a two-wire cable between the access unit and the electric lock inside the area to be secured (typically behind the door). The device is powered and controlled via this two-wire cable and so can be added to an existing installation. Thanks to its compact dimensions, the device can be installed into a standard mounting box.



Connection:

Connect the 2N® IP Security relay to the 2N Access Unit as follows:

To the active output (OUT1 or OUT2)

Connect the electric lock to the 2N® IP Security relay as follows:

  • To the switched output.
  • To the passive output in series with the external power supply.

The device also supports a Departure button connected between the ‘PB’ and ‘– HeliosIP/2N IP intercom’ terminals. Press the Departure button to activate the output for 5 seconds.



Status signalling

Green LEDRed LEDStatus
flashingoffOperational mode
onoffActivated output
flashingflashingProgramming mode – waiting for initialisation
onflashingError – wrong code received

Configuration:

Connect the 2N® IP Security relay to the properly set access unit security output. For settings refer to the 2N Access Unit Configuration Manual is installed. Make sure that one LED at least is on or flashing.

Press and hold the 2N® IP Security relay Reset button for 5 seconds to put the device in the programming mode (both the red and green LEDs are flashing).

Activate the output switch using the keypad, telephone, etc. The first code sent from the intercom will be stored in the memory and considered valid. After code initialisation, the 2N® IP Security relay will pass into the operational mode (green LED flashing).

Caution

In case of resetting the factory default settings on a device with a version of firmware 2.18 or higher, it is necessary to reprogram the
2N® IP Security Relay using the instructions above.

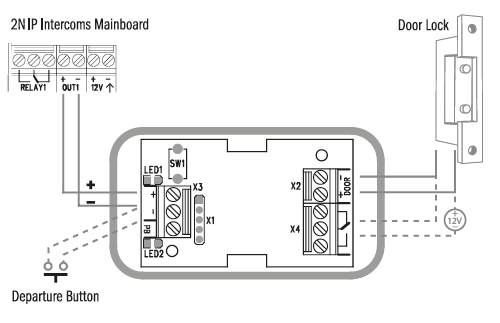

Connection:
