1.2 Components and Associated Products

Basic Unit – Universal Design

These units are installed behind the lift panel, which is prepared for installation in advance, or on the lift cabin roof.

Part No., Name

Description

919640E,

2N Lift1 – Cabin audio unit, fixed version

Basic module (fully extendable)
Version with integrated speaker, microphone and LED

Basic Properties

Automatic dialling of up to 6 numbers
Factory announcements are played.
Custom lift identification announcement recording option

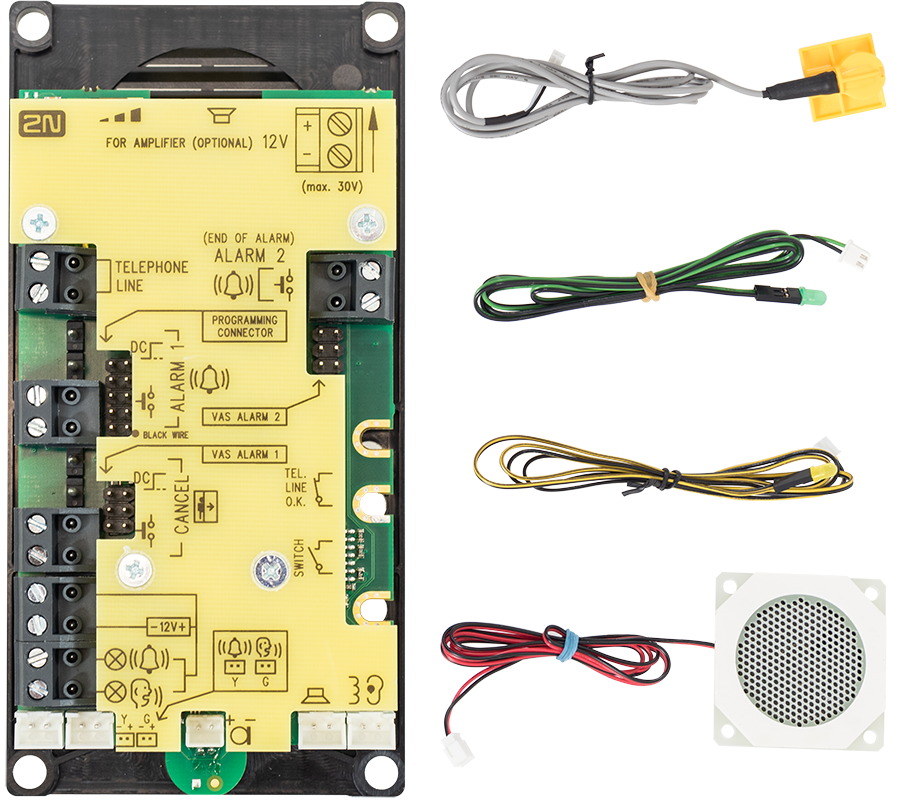

919640XE,

2N Lift1 – Cabin audio unit, cable version

Version with speaker, microphone and cable-connected LEDs
Basic properties like 919640E

919618E,

2N Lift1 – Cabin audio, flush-mounted version without button

Stainless steel cover panel version
Buttonless version
Basic properties like 919640E

919618BE,

2N Lift1 – Cabin audio, flush-mounted version with button

Stainless steel cover panel version
Button version
Basic properties like 919640E

919630E,

2N Lift1 TOC unit without voice alarm station switch

Metal cover version
Designed for lift cabin roof mounting
Basic properties like 919640E

919631E,

2N Lift1 TOC unit long with Voice alarm station switch

Metal cover version + Voice ALARM Station
Designed for lift cabin roof mouting
Basic properties like 919640E

919645E,

2N Lift1 Compact,

Button version

Basic module with metal cover
Automatic dialling of up to 6 numbers
Factory announcements are played.
Custom lift identification announcement recording option
Button version

919645WBE,

2N Lift1 Compact

Buttonless version

Basic properties like 919645E
Buttonless version

Extending Modules and Components for 919640xx and 919618xx

Part No., Name	Description
913648E, 2N Lift1 – Switch module	Universal switch – DTMF remote control (during connection). One switch module can only be mounted.
913649E, 2N Lift1 – Blocking module	Special switch, which enables the lift to be blocked at a phone line failure. One blocking module can only be mounted.
913650E, 2N Lift1 – Amplifier module	Amplifier module with gain control. Designed for noisy environments, car lifts, etc.

Programming Tool

Part No., Name

Description

919680E,

2N Lift1 Programming Tool

Used for interconnection of 2N Lift1 and 2N Lift1 Service Tool via USB

Extending Modules – External

Part No., Name

Description

919654ESET,
Audio unit – machine room

An extending set for the lift machine room
Provides lift cabin communication and communicator configuration if necessary.

Part No., Name

Description

913660E,
2N Voice Alarm Station – Audio Unit

An audio unit to be installed on the cabin roof and under the cabin

913661E,

2N Voice Alarm Station – Switch

A switch for interconnection with 2N Lift1

913663E,

2N Voice Alarm Station – Switch for 2NLift1 Compact

A switch for interconnection with 2N Lift1 Compact

9136682E,

2N Voice Alarm Station – 2m cable for Lift1 Compact

A 2m long cable for interconnection of 2N Lift1 Compact and 2N Voice Alarm Station – Audio Unit

913661ESET,

2N Voice Alarm Station SET

2 audio units + switch for interconnection with 2N Lift1

9136611ESET,

2N Voice Alarm Station SET

1 audio unit + switch for interconnection with 2N Lift1

Part No., Name

Description

919621E,
Induction loop

Provides lift communication to deaf people.
A 4m antenna for a good cabin signal, included in the package

Part No., Name

Description

913646,
External lift blocking module

Blocks the lift function during telephone line failures.
Use the blocking module with 2N Lift1 wherever you need to save the trailing cable wires. Install the module directly into the machine room through which the telephone line passes.
